ASSEMBLY/SETUP IN STRUC TIONS

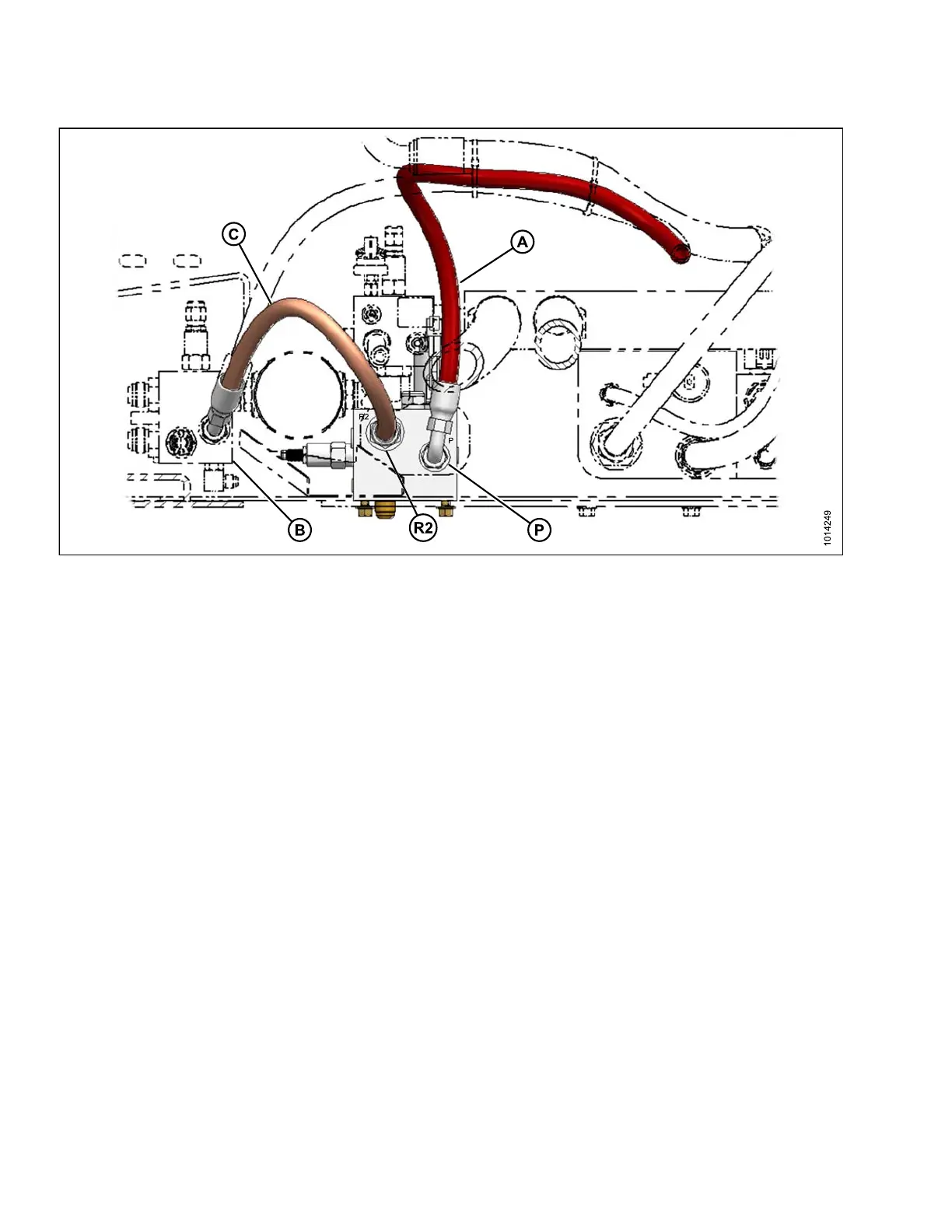

Figure 2.10: M155/M155E4 Hose Configuration
A - H ose from Port P on DWA Drive Manifold to Pump (not visible) B - Cooler Bypass Relief Valve
C - Hose from Port R2 on DWA Drive Manifold to Cooler Bypass Relief Valve
P-PortP
214049 16 Revision A
