MacDon DWA - 2.2 Installing Draper Drive Manifold

ASSEMBLY/SETUP INSTRUCTIONS
6. Remove hose (A) from cooler bypass relief valve
(B) and connect to fittingatportPonDWAdrive
manifold. The other end of hose (A) is connected to
the supercharge pump (D).
7. Install the other end of hose (C) to the c ooler bypass
relief valve (B) where hose (A) was removed.
NOTE:
Gain access to hose (A) from under the
windrower or by raising windrower hood and
working from the left platfor m.

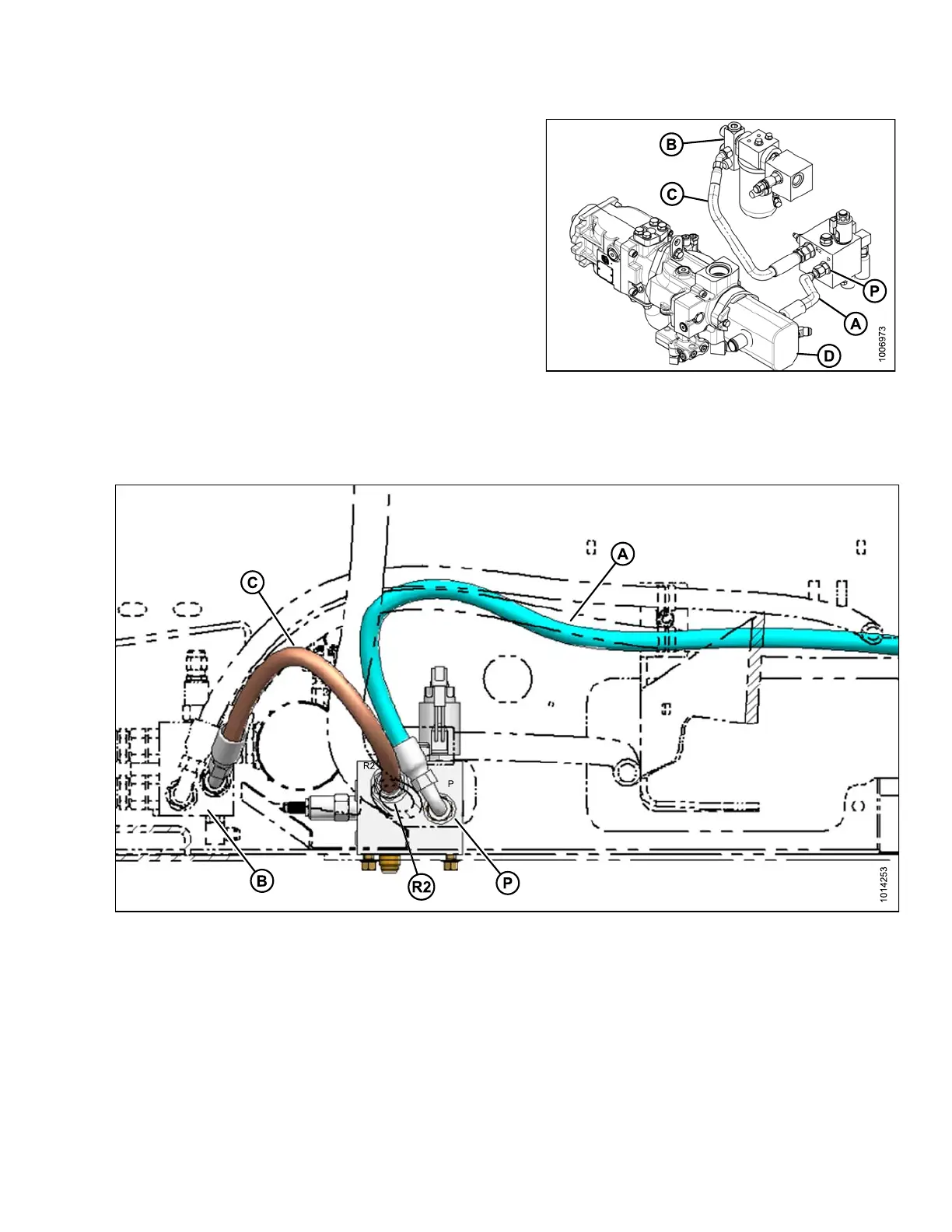

Figure 2.8: M150/M200 Configuration after
Installin g the DWA Driv e Manifold
A-Hose
B - Bypass Relief Valve
C-Hose D-Superch
arge Pump
P-PortP
Figure 2.9: M205 Hose Configuration
A - Hose from Port P on DWA Drive Manifol d to Pump (not visible) B - Cooler Bypass Reli ef Valve
C - Hose from Port R2 on DWA Drive Manifold to Cooler Bypass Relief Valve
P-PortP
