ASSEMBLY/SETUP INSTRUCTIONS
9. Align the DWA linkage with the four bolts in the
windrower frame.
• For R-Series header: mount the linkage in the most
forward position (A)
• For A-Series or D-Series header: mount the linkage
in the most rearward position (B)

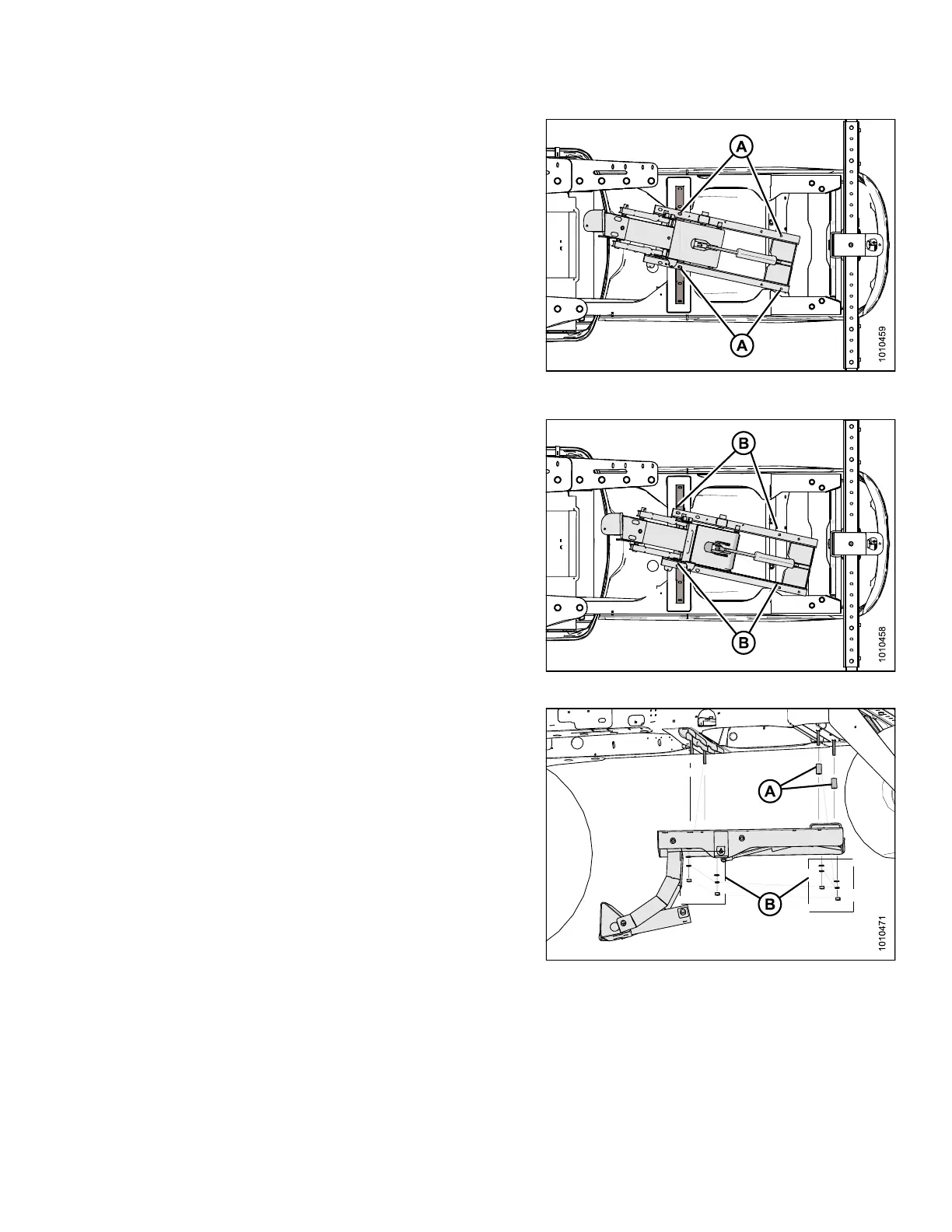

Figure 2.21: Linkage Forward
Figure 2.22: Linkage Rearward
10. Positi
on two 1-1/2 in. OD x 1 in. ID x 2-3/4 in. long
spacer
s (A) on the rear bolts.
NOTE:
Spacers are n ot required with the linkage in the
rearward position.
11. Attach the linkage with four flat washers, lock washers,
and nuts (B).
Figure 2.23: Linkage Forward
214049
21
Revision A
