MAINTENANCE AND SERVICING
Table 4.1 Draper Tracking Adjustments
Tracking At Location Adjustment Method
Rearward
Move roller (C) outward Tighten nut (A)
Forward
Drive roller
Move roller (
C) inward
Loosen nut (A
)
Rearward
Move roller (D) outward Tighten nut (B)
Forward
Idler roller
Move roller (D) inward Loosen nut (B)

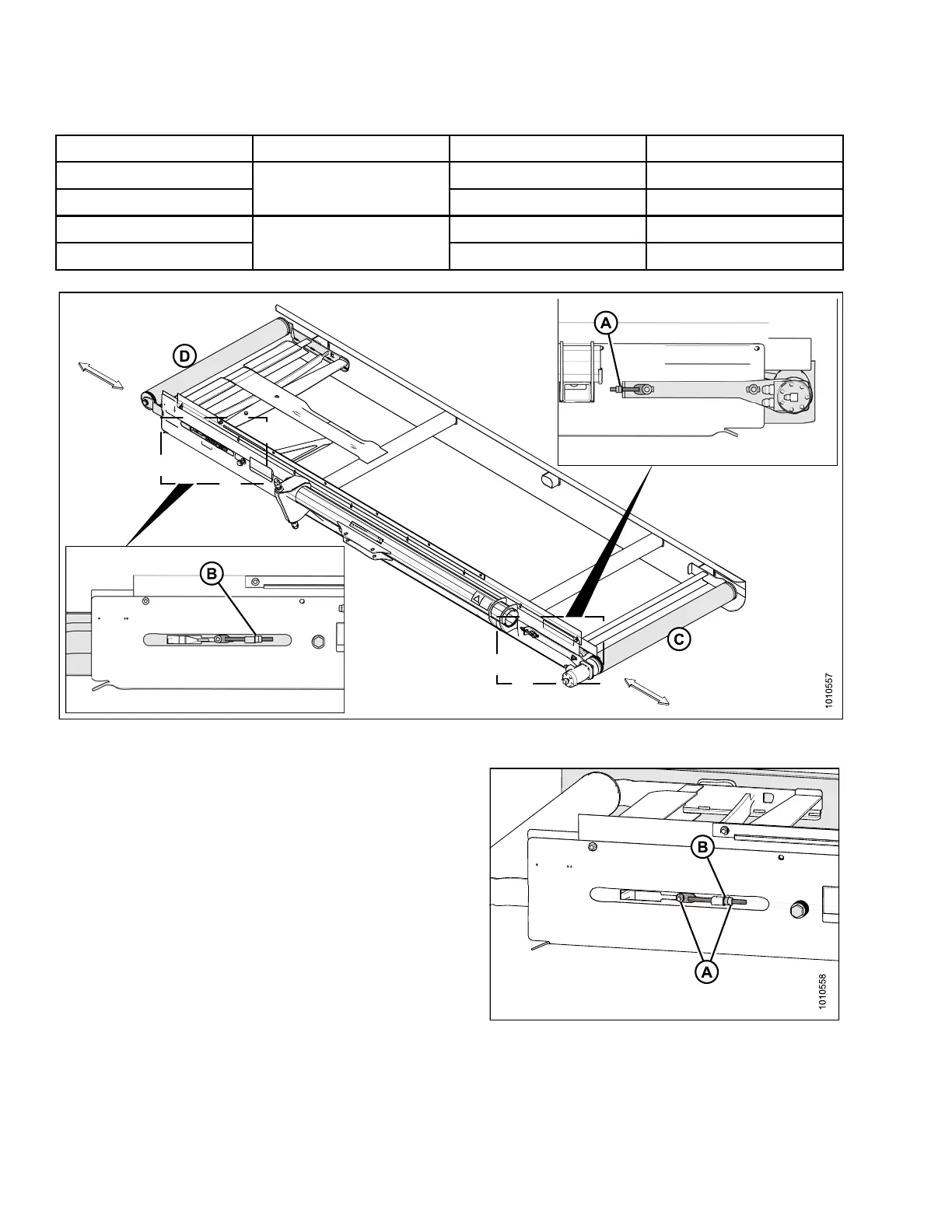

Figure
4.2: Draper Tracking
To adjust tracking on the idler roller side:
1. Loosen the two nuts (A).
2. Adjust nut (B) according to Table 4.1 Draper Tracking
Adjustments, page 68.
3. Secure the idler roller by tightening the two nuts (A).
4. After adjusting draper tracking, readjust the draper
tension. Refer to 4.1.1 Adjusting Draper Tension, page
67.
Figure 4.3: Idler Roller
