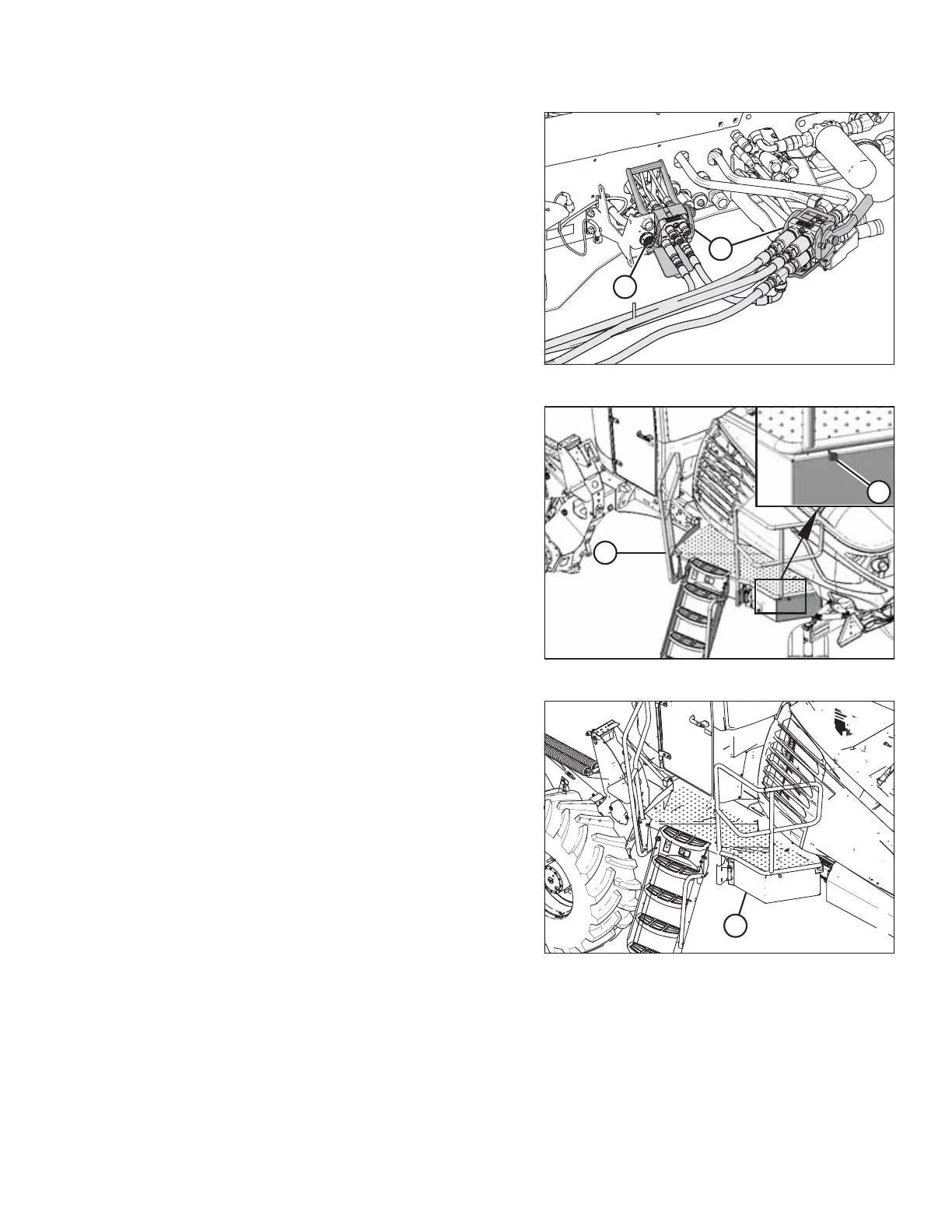

Figure 5.33: Header Drive Hydraulics
15. Disconnect header drive hydraulics (A) and electrical
harness (B) from the windrower.
Figure 5.34: Left Cab-Forward Platform
16. Push latch (A) to unlock platform (B).
Figure 5.35: Left Cab-Forward Platform
17. Pull platform (A) towards the cab until it stops and the latch
is engaged.
