215620 144 Revision A

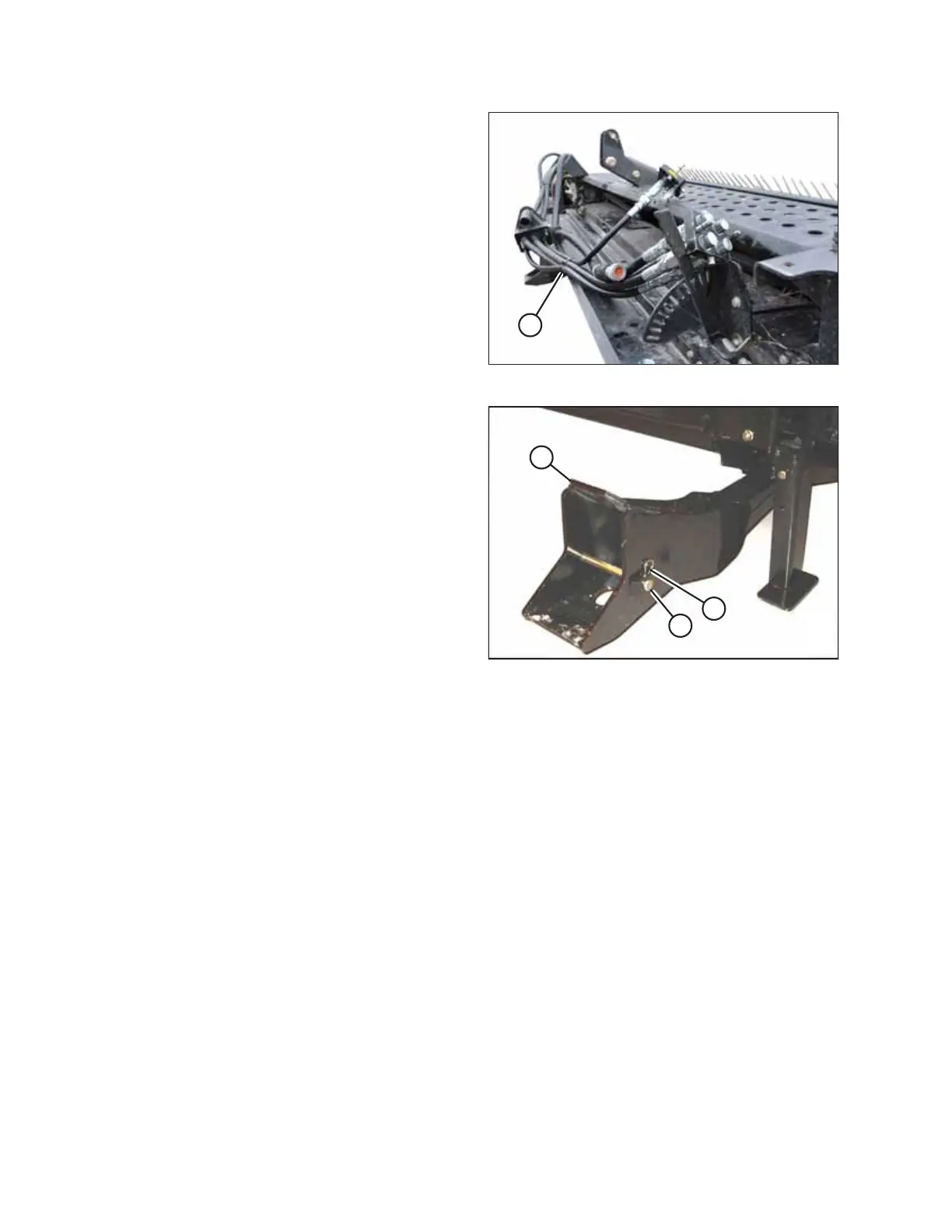

Figure 5.36: Hydraulics Hoses in Storage Position
18. Place hydraulics/electrical bundle (A) in the storage position
on the header.
19. Back the windrower slowly away from the header.
Figure 5.37: Header Support
20. Reinstall clevis pin (B) into header support (C) and secure
with hairpin (A). Repeat for the opposite side.
ATTACHING A HEADER TO THE WINDROWER
