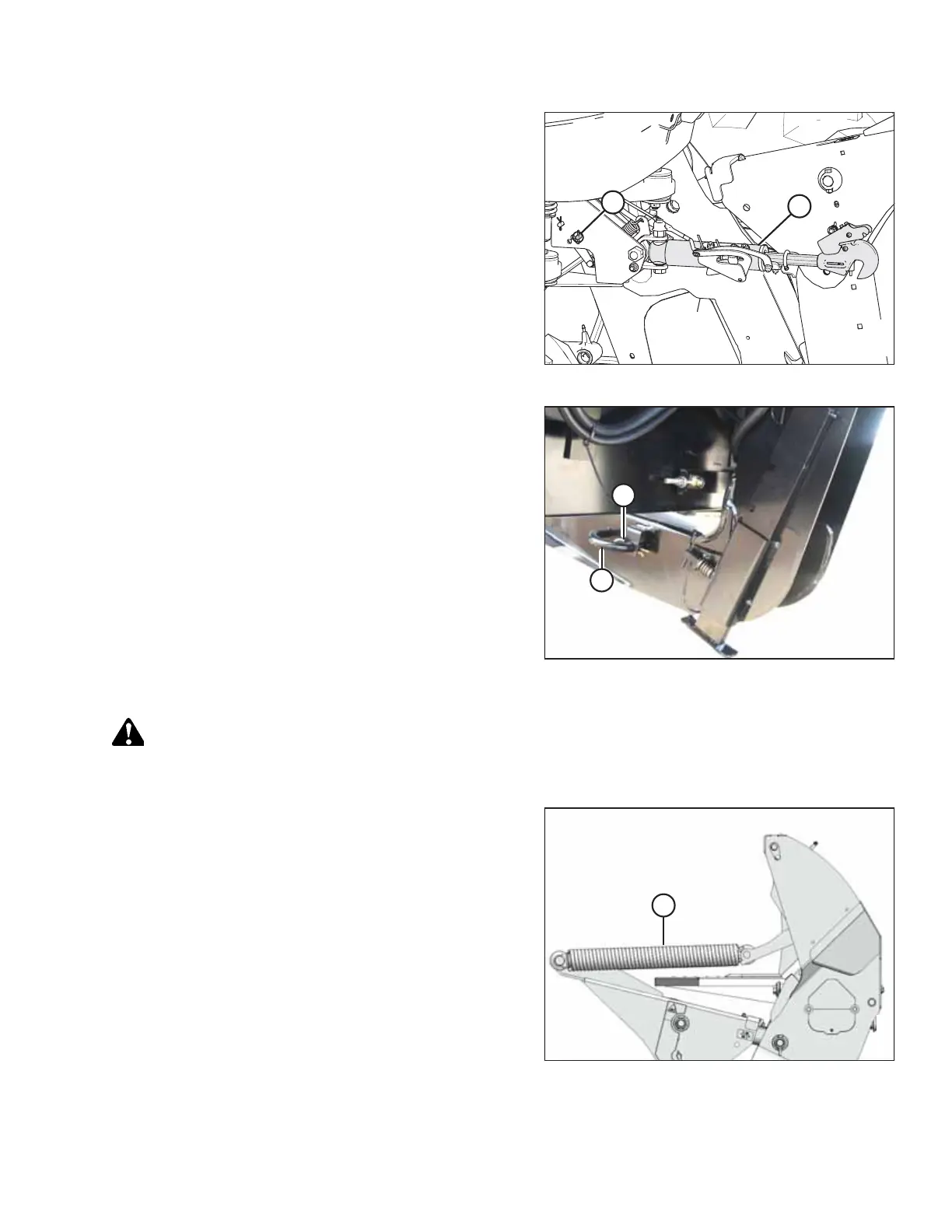

Figure 5.42: Center-Link without Self-Alignment
3. Windrowers without the self-aligning center-link kit:
Relocate pin (A) in the frame linkage as required to raise
center-link (B) until the hook is above the attachment pin
on the header.
IMPORTANT:
Ensure that the center-link is positioned high enough that it
does not contact the header as the windrower approaches
the header.
Figure 5.43: Header Leg
4. Remove hairpin (A) from pin (B), and remove pin (B) from
the header leg. Repeat this step on the opposite header leg.
DANGER
Ensure that all bystanders have cleared the area.
5. Start the engine.
Figure 5.44: Header Float Springs
6. If you are lowering the header lift legs WITH a header or
weight box attached to the windrower, proceed to Step
10, page 148.
If you are lowering the header lift legs WITHOUT a header
or weight box attached to the windrower, fully release the
tension in header float springs (A):
• If prompted by the Harvest Performance Tracker (HPT)
to remove the float, then remove the float and proceed
to Step 10, page 148.
• If not prompted by the HPT to remove the float, then
proceed to Step 7, page 148 to remove the float
manually.
ATTACHING A HEADER TO THE WINDROWER
