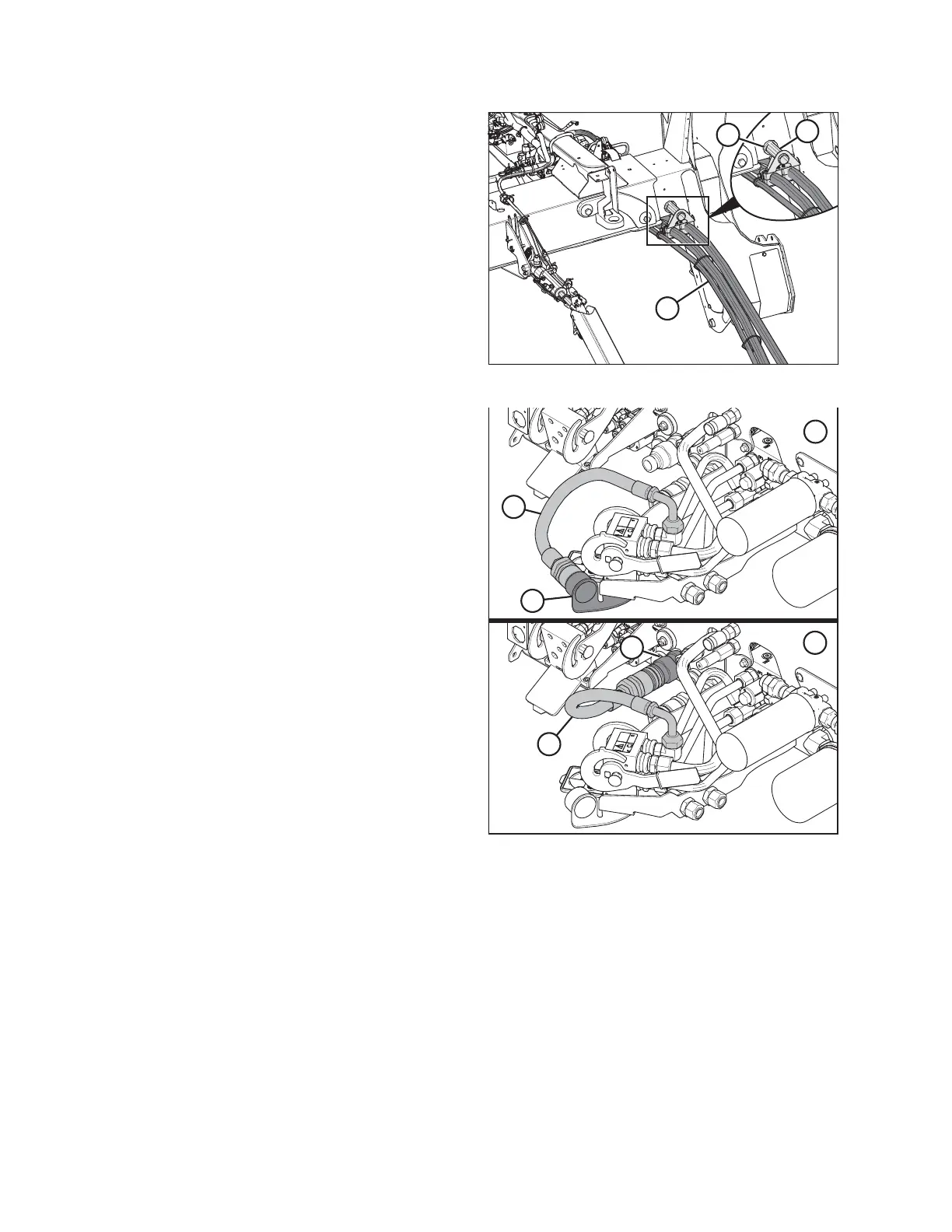

Figure 5.192: Hose Support Attachment
3. Retrieve hydraulic hoses (A) from the header and route the
hose bundle under the windrower frame.
NOTE:
Adding anti-seize compound to the hose holder pin will
make future removal easier.
4. Insert pin (B) into hole (C) in the windrower frame.
IMPORTANT:
Route the hydraulic hoses as straight as possible, avoiding
wear points that could damage the hoses. To prevent
abrasion damage, the hoses should have enough slack to
pass by the multicoupler bracket without contacting it. To
adjust the slack in the hoses, loosen the clamps below
pin (B), adjust the hoses, then retighten the hose holder.
Figure 5.193: Knife Pressure Hose Positions
1 - Knife Pressure Hose in Storage Position – Rotary Configuration
2 - Hose to Knife Pressure Receptacle – Auger/Draper Configuration
5. If switching from an auger/draper header to a rotary
header: Disconnect hose (A) from knife pressure
receptacle (C) on the frame, and move it to storage
location (B).
ATTACHING A HEADER TO THE WINDROWER
