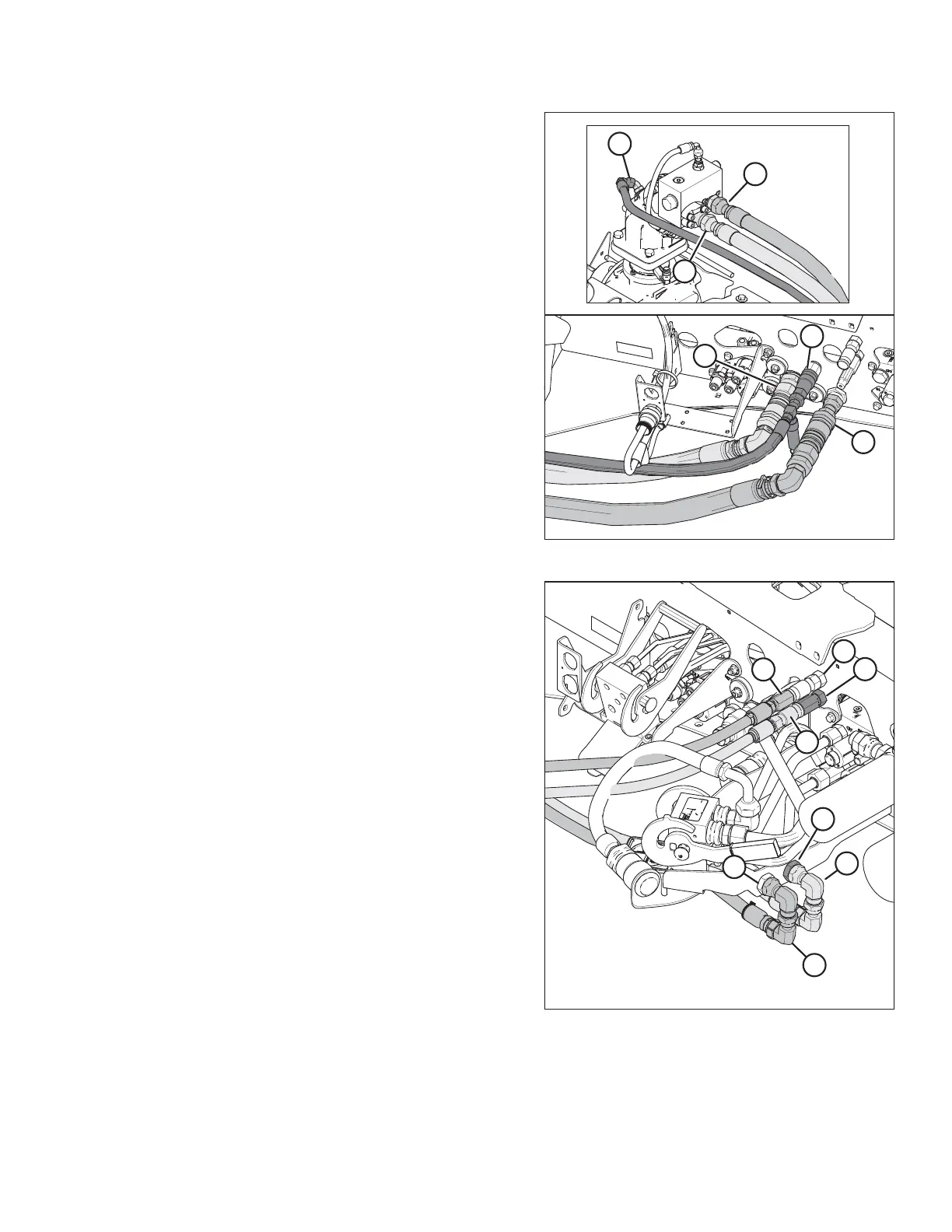

Figure 5.194: Hydraulics and Electrical
6. Connect the hydraulic hoses to a windrower with quick
coupler fittings as follows:
a. Connect disc pressure hose (A) with coupler (B). Torque
the connection to 216 Nm (159 lbf·ft).
b. Connect disc return hose (C) with coupler (D). Torque
the connection to 216 Nm (159 lbf·ft).
c. Connect case drain hose (E) to fitting (F), with the relief
valve pointing towards the ground.
NOTE:
If required, loosen fitting (F) and retighten it as needed to
ensure that the relief valve is pointing straight down.
Figure 5.195: Grass Seed Header Hydraulic
Connections
7. To connect a grass seed header: Connect the four
additional hydraulic hoses supplied with the grass seed
version of the header as follows:
a. Connect hose (green cable tie) with female quick
coupler (A) to coupler (B) on the windrower frame.
b. Connect hose (yellow cable tie) with male quick
coupler (C) to coupler (D) on the windrower frame.
c. Remove the cap (not shown) from inboard bulkhead
fitting (E). Connect hose (F) (red cable tie) to inboard
bulkhead fitting (E).
NOTE:
The other end of hose (F) connects to the grass seed
module drum on the left of the header.
d. Remove cap (not shown) from outboard bulkhead
fitting (G). Connect hose (H) (blue cable tie) to inboard
bulkhead fitting (G).
NOTE:
The other end of hose (H) connects to the grass seed
module drum on the right side of the header.
ATTACHING A HEADER TO THE WINDROWER
