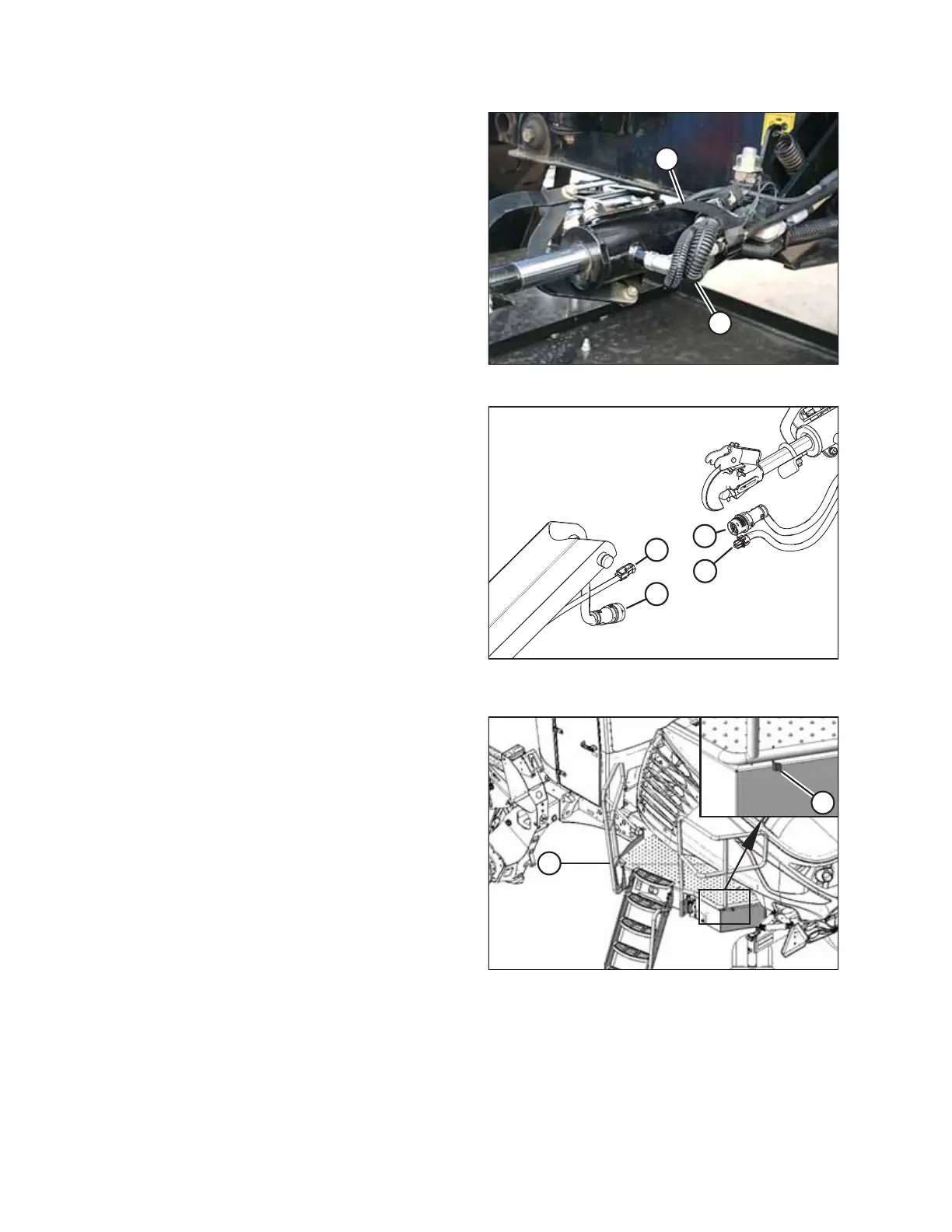

Figure 5.196: Electrical Harness Secured to Center-Link
8. Free electrical harness (A) from adjustable strap (B).
Figure 5.197: Electrical Harness Connection at
Center-Link
9. Connect main header harness (A) to adapter harness (B).
10. If you are connecting the standard-configuration R2
header equipped with the optional electric baffle control
kit: Connect electric baffle control harness (C) to adapter
harness (D).
11. If you are connecting an R2 header configured for grass-
seed harvesting: Connect actuator harness (C) to adapter
harness (D).
Figure 5.198: Left Cab-Forward Platform
12. Push latch (A) to unlock platform (B).
ATTACHING A HEADER TO THE WINDROWER
