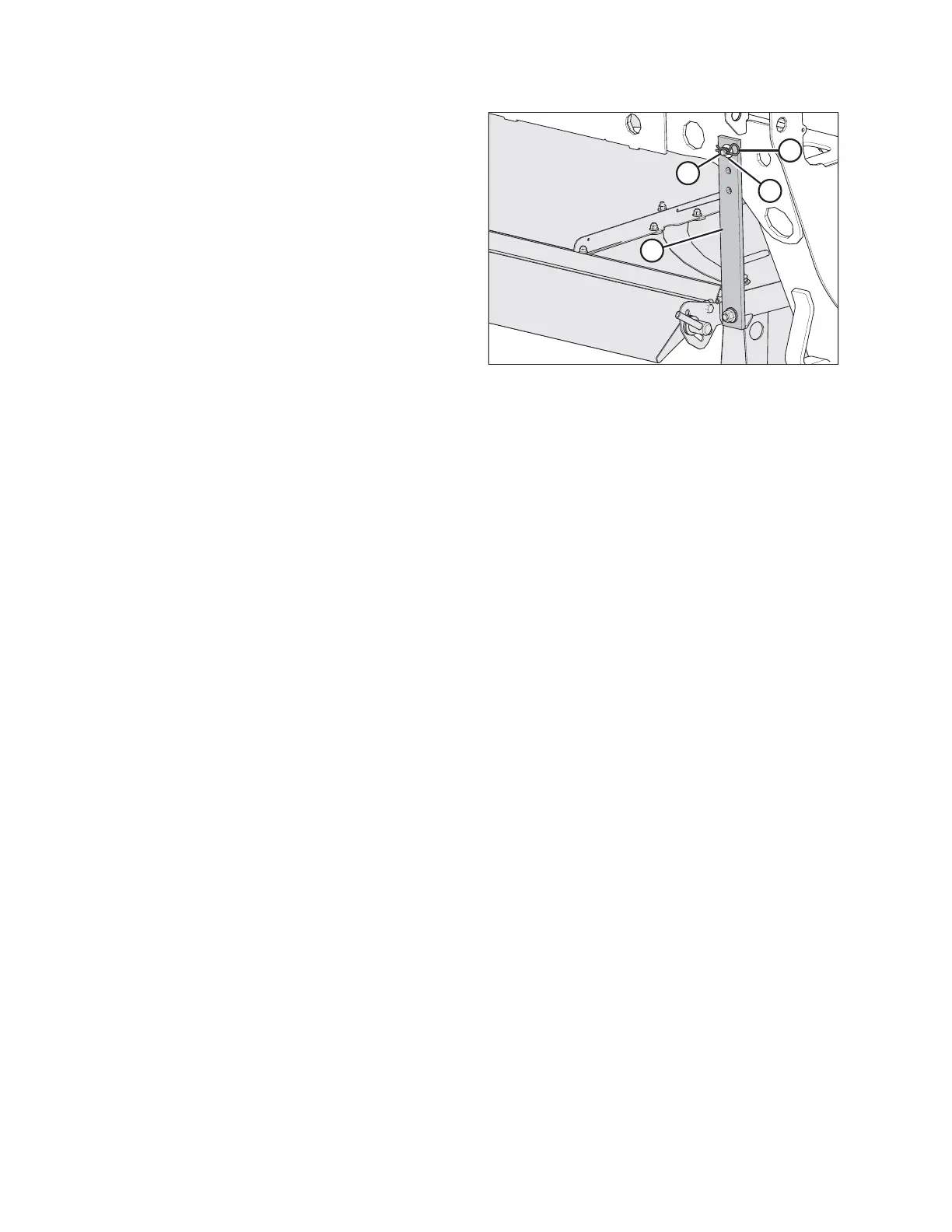

Figure 5.248: Rubber Strap Securing Forming Shield
onto Windrower Leg
1. Mark strap location, then remove and retain hairpin (A) and
washer (B) from straight pin (C).
2. Pull rubber strap (D) away from straight pin (C).
3. Lower rear end of forming shield.
4. Reinstall washer (B) and hairpin (A) on straight pin (C) for
storage.
5. Repeat Step 1, page 228 to Step 4, page 228 at the
opposite side.
6. Reattach clevis pin and lynch pin to the forming shield for
storage.
7. Remove the forming shield.
ATTACHING A HEADER TO THE WINDROWER
