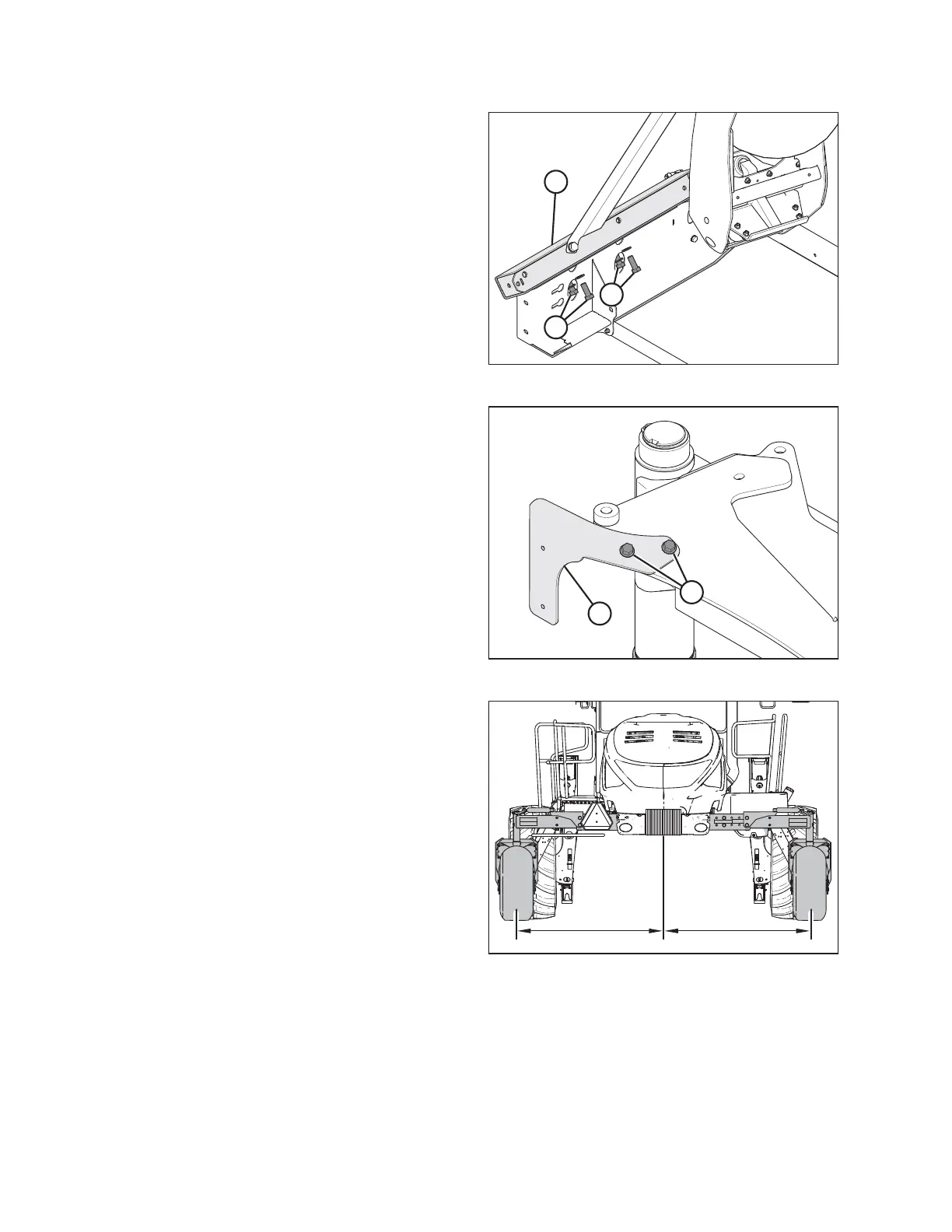

Figure 3.27: Caster Wheels Shipping Assembly
17. Remove four M24 bolts (A) securing left caster wheel
beam (B) to shipping stand. Retain M24 bolts with washers
for installation.
18. Lift left caster wheel away from shipping assembly and set
it down on a non-scratch surface.
19. Repeat Step 6, page 54 to Step 15, page 55 to install left
caster wheel.
NOTE:
It may be necessary to raise the left end of walking beam
with a jack when installing the left caster wheel.
Figure 3.28: SMV Bracket in Working Position
20. On left anti-shimmy dampener bracket, rotate slow moving
vehicle (SMV) sign bracket (A) into working position. Secure
with existing screws (B).
Figure 3.29: Walking Beam Adjustment
21. Ensure left and right caster wheel width is equal.
ASSEMBLING WINDROWER
