215620 70 Revision A

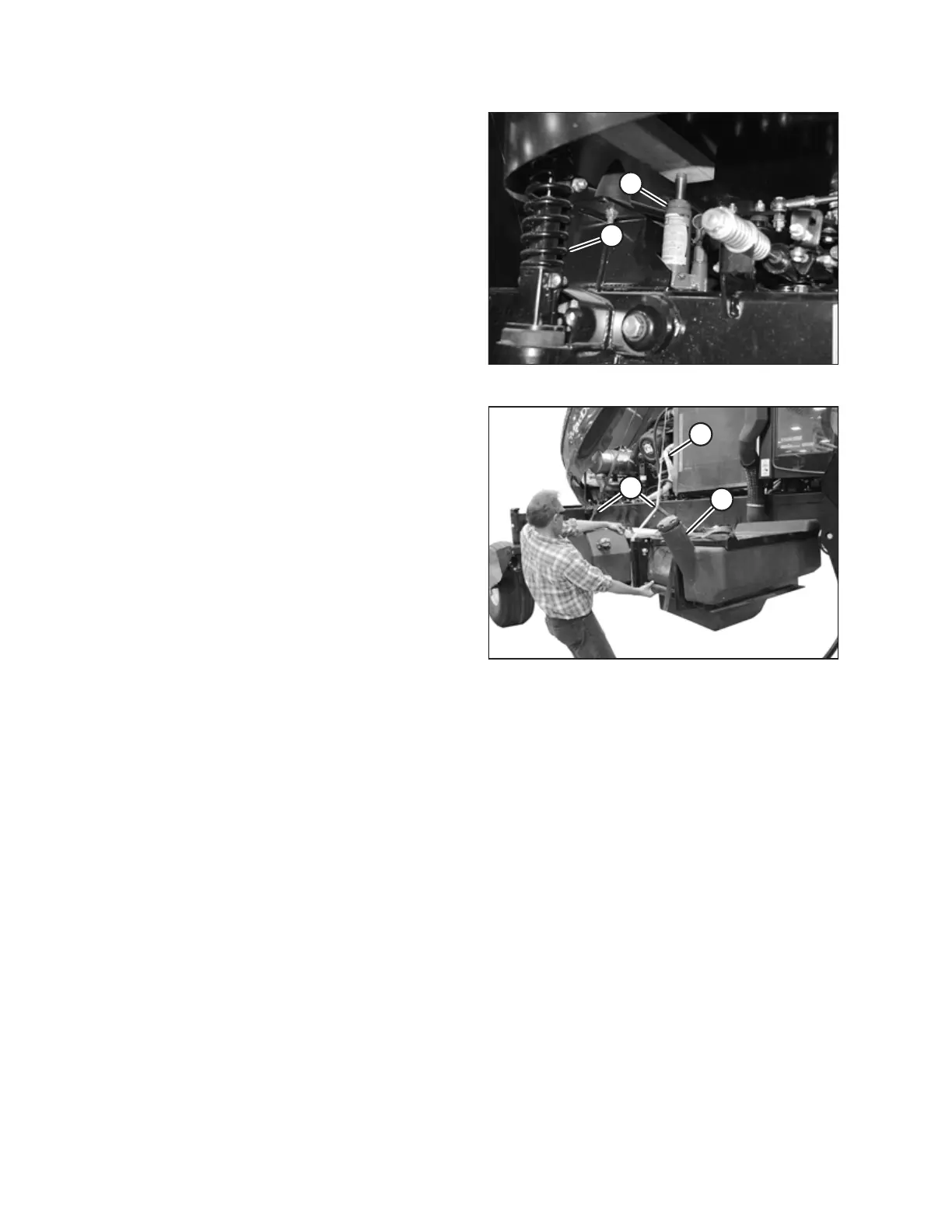

Figure 3.57: Bottle Jack Lifting Cab
12. To improve access to the right platform mounting bolts,
position a bottle jack (A) and a block of wood near right
front cab shock (B) and lift the cab until you feel resistance.
Figure 3.58: Right Platform/Fuel Tank Assembly
13. Support right platform assembly (A) with a suitable lifting
device, adjust lifting straps (B) until the platform is parallel
to the ground, and move it into place on the right side of
windrower. Move hose bundle (C) to prevent pinching.
ASSEMBLING WINDROWER
