Installing rear light assembly – no ballast package required

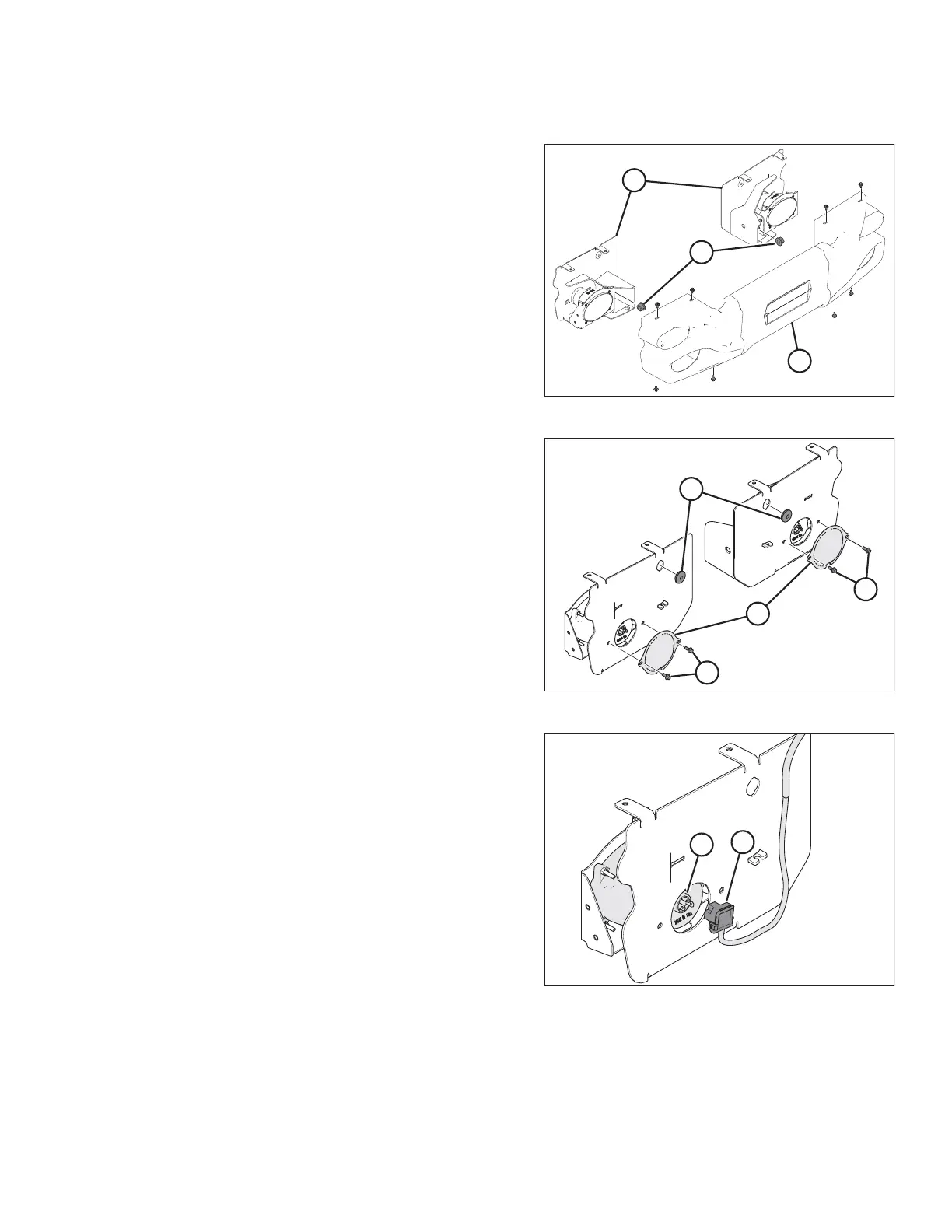

Figure 3.87: Rear Light Bezel Assembly
1. Remove eight bolts and washers from the rear light
assembly and separate bezel (A) from left and right light
supports (B).
2. Remove nuts (C) from light supports (B). Retain the
hardware for installation.
Figure 3.88: Light Supports
3. Remove two bolts (A), cover (B), and seal (C) from behind
each light support.
Figure 3.89: Right Light Support
4. Align connector (A) and plug the engine-forward headlight
harness into headlight (B) as follows:
• Harness P214 to the right engine-forward headlight
• Harness P213 to the left engine-forward headlight
