215620 87 Revision A

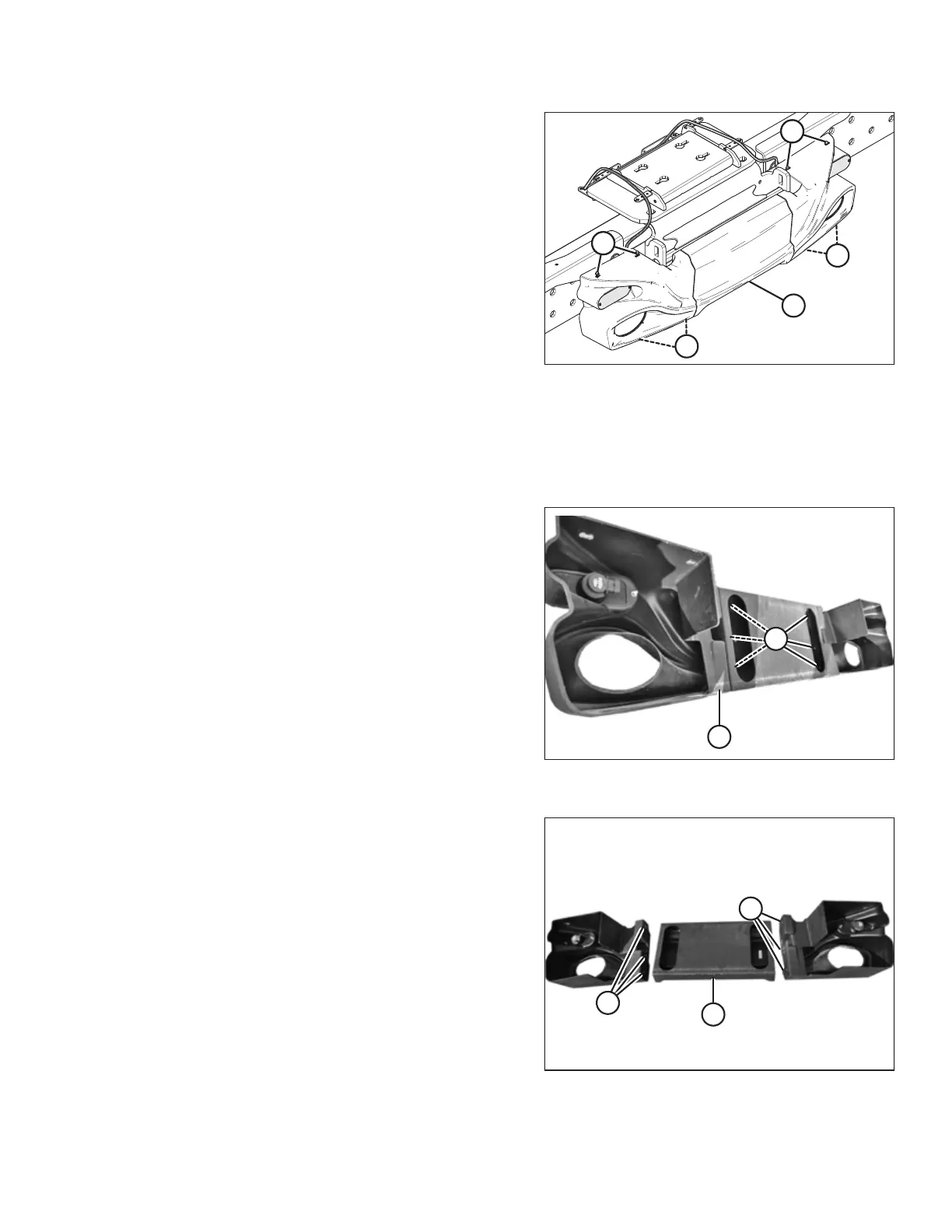

Figure 3.93: Rear Light Bezel Assembly
11. Use eight bolts and washers (A) to attach rear light
bezel (B) to light supports.
Installing rear light assembly – ballast required
1. Refer to Table 3.2, page 84 to determine the amount of ballast to add to the windrower.
2. Shut down the engine, and remove the key from the ignition.
Figure 3.94: Bezel Assembly Removed from
Windrower
3. Separate light bezel assembly (A) by removing six hex
screws (B).
Figure 3.95: Bezel Assembly Separated
4. Retain center portion (A) of the light bezel assembly for
reinstallation. Install six hex screws (B) on the side bezels.
NOTE:
These hex screws will be used when reinstalling the center
portion of light bezel.
ASSEMBLING WINDROWER
