HEADER OPERATION – D SERIES
Form 169469/169470/169471 99 Revision C
Examples:
Windrower is operating at 8 mph with Header
Index on and set at 5.5. Display shows;
13.5 5.5 REEL IND
where 13.5 (8+5.5) is the reel speed in mph, and
5.5 is the header index setting.
Windrower speed drops to 7.5 mph at same
Header Index setting. Display shows;
13.0 5.5 REEL IND
where 13.0 (7.5+5.5) is the reel speed in mph,
and 5.5 is the header index setting.
Windrower is operating at 8 mph with Header
Index on and set at 1.0. Display shows;
9.0 1.0 REEL IND
where 9.0 (8+1.0) is the reel speed in mph, and
1.0 is the header index setting.
6.5.6.2 Reel Only Speed
Set the speed of the reel independently of
ground speed as follows:
CAUTION
Check to be sure all bystanders have cleared
the area.
NOTE
This procedure can also be used to
change the draper speed “on the go”.
These changes become the new set-
points.

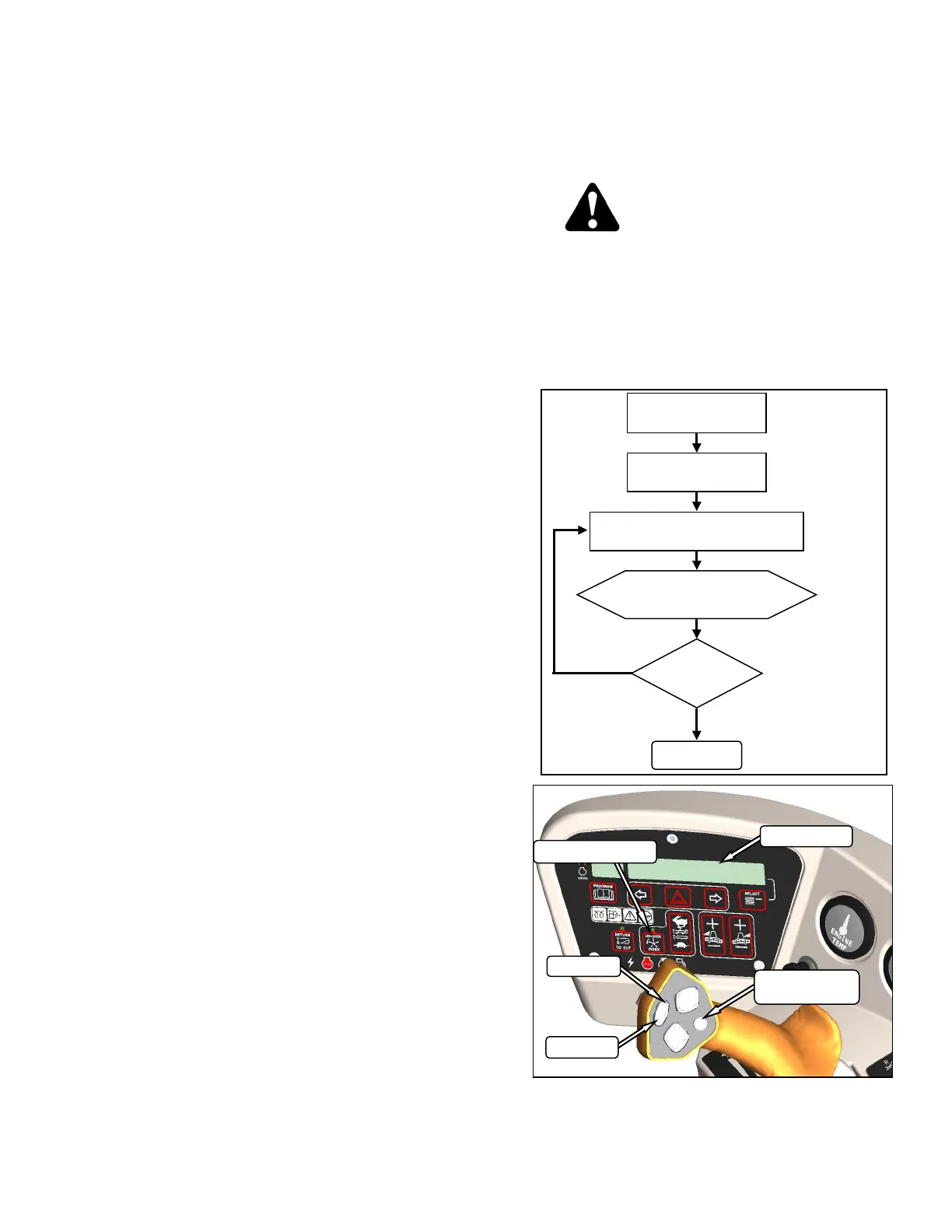

##.## = MPH or KPH
ENGAGE HEADER
HEADER INDEX
SWITCH - OFF
ON GSL PRESS REEL SPEED
SWITCH FAST OR SLOW
DISPLAY SHOWS
##.## REEL MPH
DONE
SPEED
O.K.?
NO
YES
DISPLAY
SELECTOR
DISPLAY
HEADER INDEX
FAST
SLOW
