OPERATOR’S STATION
Form 169469/169470/169471 20 Revision C
5 OPERATOR’S STATION
The operator’s station is designed for operating the windrower in a cab-forward mode (working mode), or in
an engine-forward mode (transport mode). The operator station, which includes the seat, console, and
steering column, pivots 180° so that the operator maintains access to the windrower controls and gauges
regardless of the direction of travel.

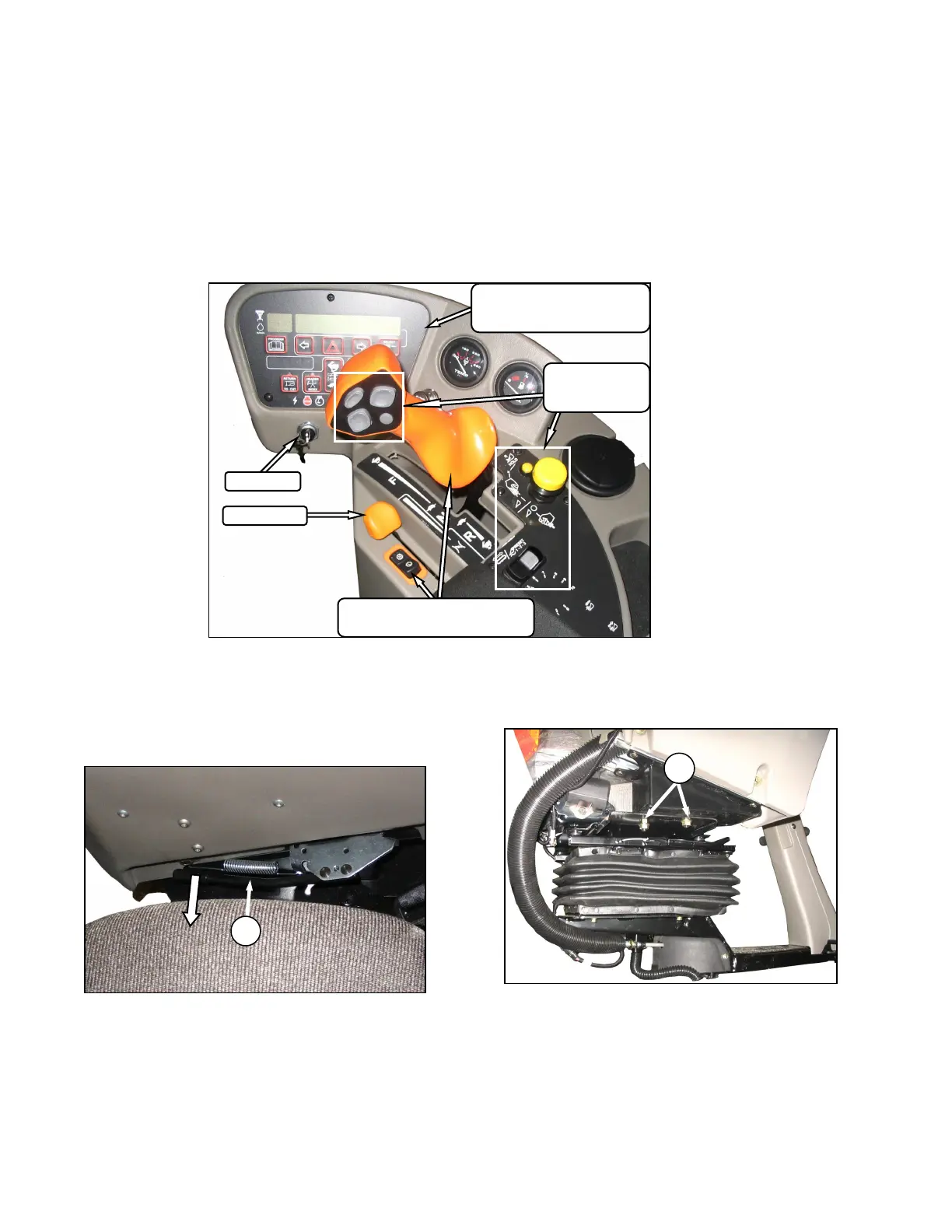

5.1 OPERATOR CONSOLE
The console contains controls to operate the windrower as well as amenities for the operator.
The console position is adjustable to suit each
particular operator as follows:
a. To adjust fore/aft and height, pull lever (A) and
slide console fore or aft to desired position.
Release lever to lock console.
b. To adjust only fore-aft, loosen nuts (B) under
console and move as required.
c. Tighten nuts.
GROUND SPEED CONTROLS
SECTION 5.16
THROTTLE
ENGINE/WINDROWER CAB
DISPLAY MODULE (CDM)
SECTION 5.18
HEADER
CONTROLS
SECTION 5.17
IGNITION
A
B
