HEADER – GENERAL
Form 169469/169470/169471 90 Revision C
6.4.7 DOUBLE WINDROWING

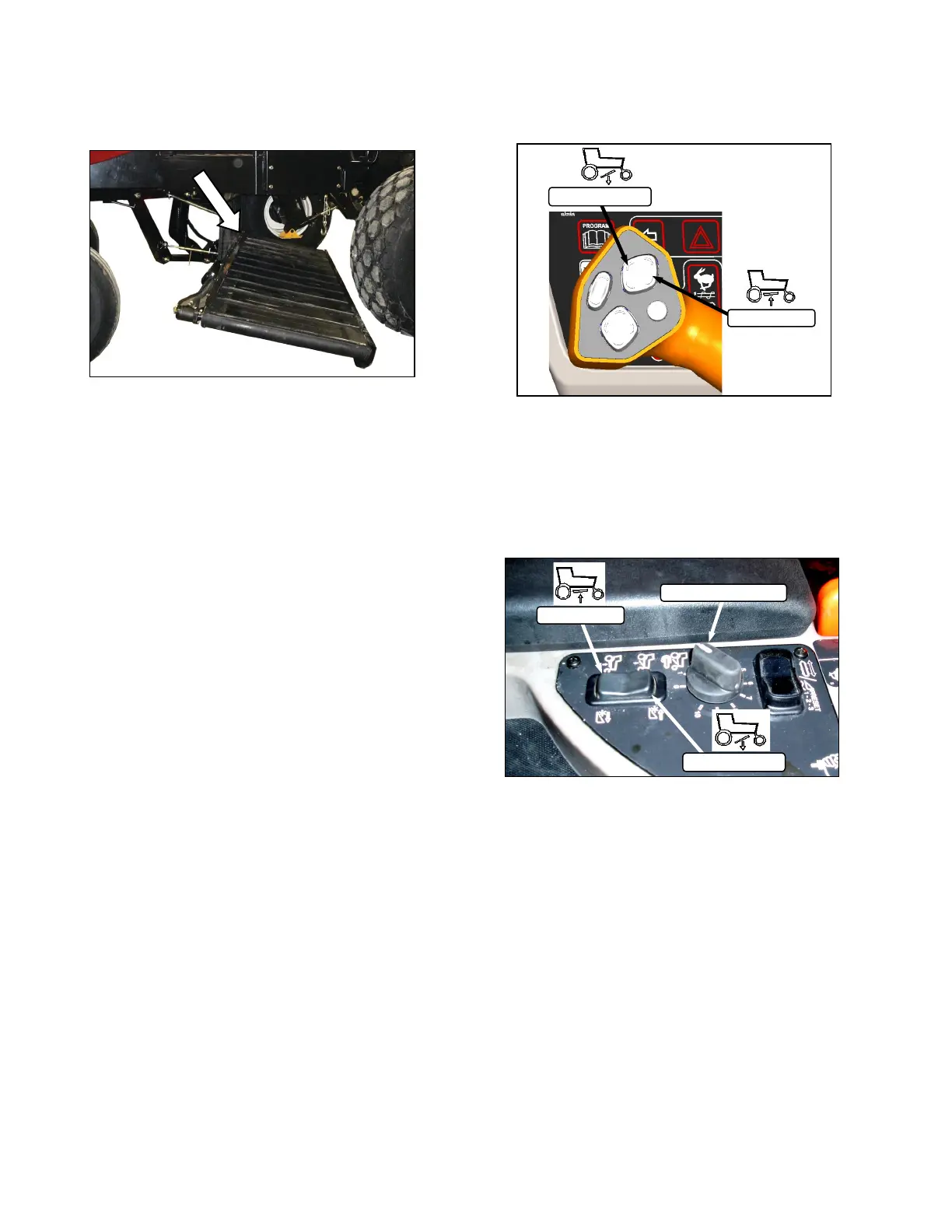

The double windrow attachment (DWA) allows
the combining of two windrows of conditioned
material close together to be picked up by a
forage chopper.
The system is for use with the A Series auger
header, R Series rotary disc header, and D60
draper header with HC10 hay conditioner.
The conditioned crop is deposited onto the side
delivery system draper and delivered to the side
of the windrower when required. Raising the
side delivery system shuts off the draper and
allows the crop to be deposited between the
windrower wheels as it would be without the side
delivery system.
Refer to MacDon M Series Windrower Double
Windrow Attachment Manual (Form #169216)
for complete operating and maintenance
instructions. The manual is shipped with the
DWA Kit.
6.4.7.1 Deck Position
The deck is raised and lowered with the DWA
UP and DWA DOWN switches on the GSL, or
with the rocker switch on the operator’s console,
depending on how the windrower CDM is
programmed during the installation of the DWA.
6.4.7.2 Draper Speed
The draper speed is controlled with the rotary
switch next to the rocker switch on the
operator’s console.
