HEADER OPERATION – R SERIES
Form 169469/169470/169471 116 Revision C

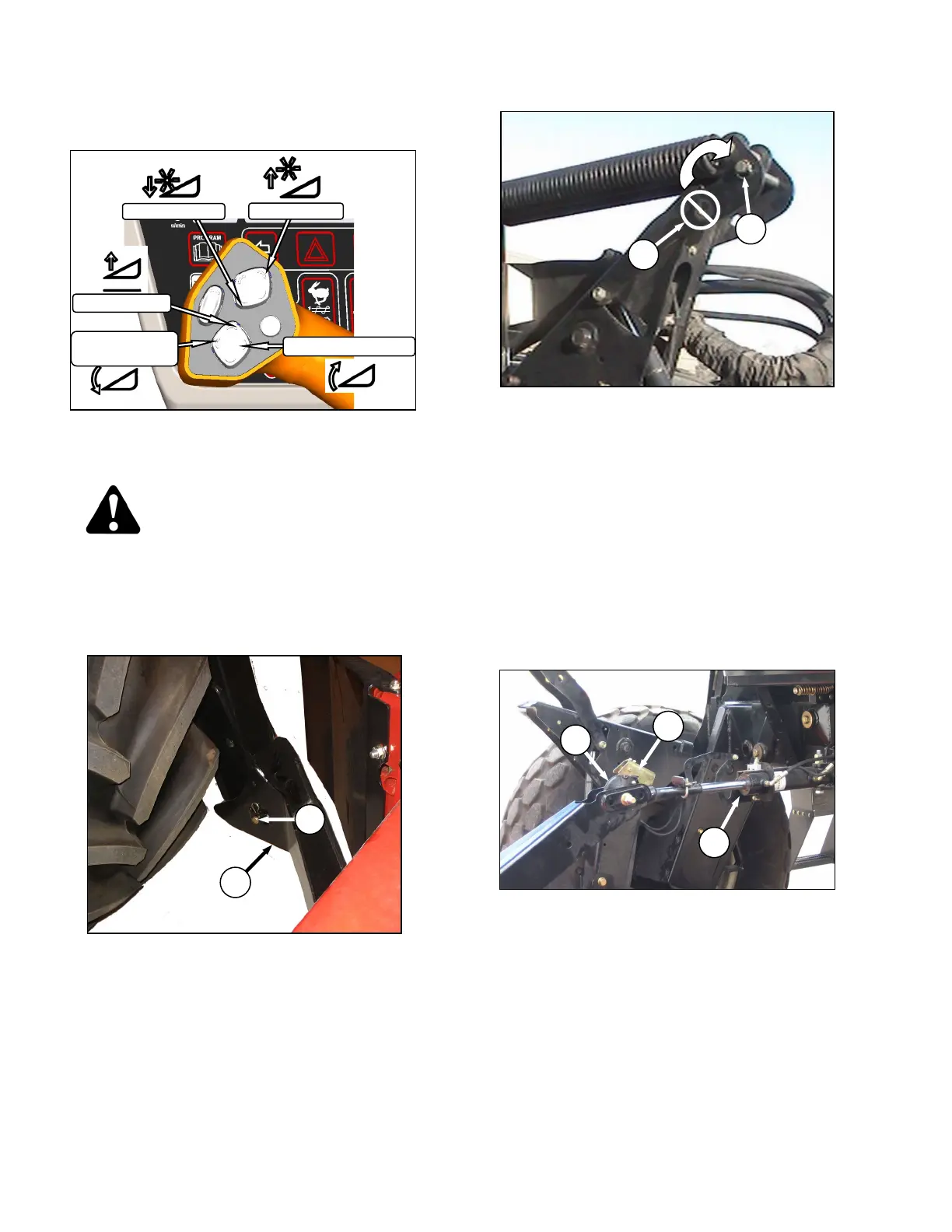

6.7.2 HEADER DETACHMENT
a. Raise the header fully with the HEADER UP
switch on the GSL. Stop engine and remove
key.
DANGER
To avoid bodily injury from fall of raised
header, always engage header lift cylinder
stops when working on or around raised
header.
b. Engage lift cylinder stops on both lift cylinders.
c. Remove hairpin from pin (A), and remove pin
from left and right header boots (B) on header.
d. Remove pin from location (C) to disengage float
springs, and insert in storage hole (D). Secure
with hairpin.
IMPORTANT
To prevent damage to the lift system when
lowering header lift linkages without a
header or weight box attached to
windrower, ensure that float engagement
pin is installed in storage location (D), and
not installed at hole location (C).
e. Disengage lift cylinder stops.
f. Start engine, choose a level area and lower
header to the ground.
g. Activate HEADER TILT switches on GSL to
release load on center link cylinder (E).
h. Lift hook release (F).
i. Operate the link lift cylinder with REEL UP
switch on GSL to disengage the center link hook
(G) from the header.
