MacDon M205 2010 - Engine-Forward Lighting: Road; Cab-Forward Lighting: Road (Optional)

OPERATOR’S STATION
Form 169469/169470/169471 24 Revision C
5.7.2 ENGINE-FORWARD LIGHTING: ROAD
The following lights are on/functional when the
switch is in the ROAD position. The hazard
lights must be activated with the switch on the
CDM when driving on the road.
5.7.3 CAB-FORWARD LIGHTING: ROAD
(OPTIONAL)
If equipped, the following lights are functional
when the switch is in the ROAD position. The
hazard lights must be activated with the switch
on the CDM when driving on the road.
IMPORTANT
Optional red tail lighting and marking kit
must be installed so that road travel in the
cab-forward mode complies with road
travel regulations. See your MacDon
dealer.

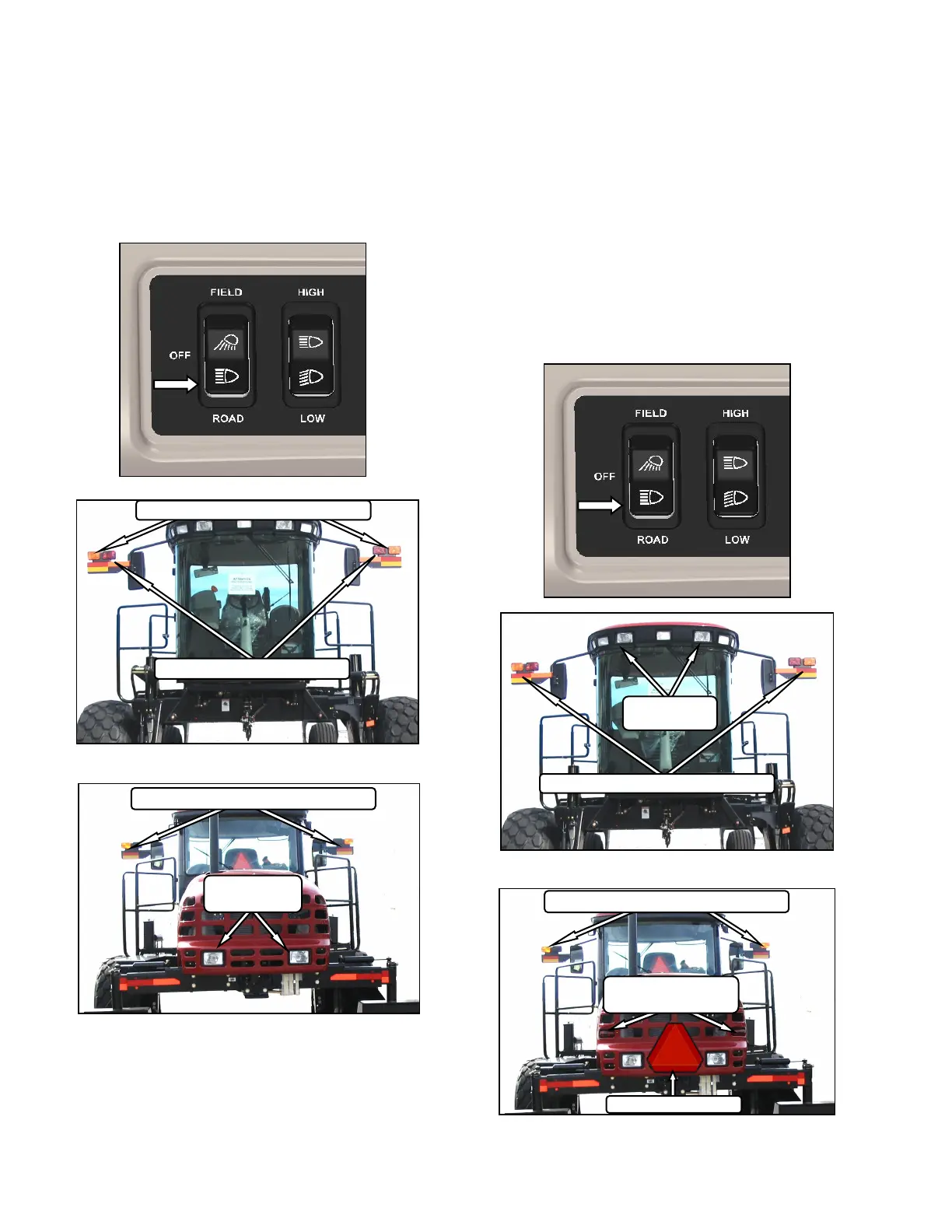

REAR - ENG FWD
FRONT - ENG FWD
HIGH / LOW
- ROAD
TURN SIGNALS / HAZARDS - AMBER
TAIL / BRAKE LIGHTS - RED
TURN SIGNALS / HAZARDS - AMBER
FRONT - CAB FWD
HIGH / LOW
-ROAD
TURN SIGNALS / HAZARDS - AMBER
REAR - CAB FWD
TAIL LIGHTS - RED
(If Installed)
TURN SIGNALS / HAZARDS - AMBER
SMV SIGN
