HEADER OPERATION – A SERIES
Form 169469/169470/169471 104 Revision C
6.6 A SERIES HEADER OPERATION

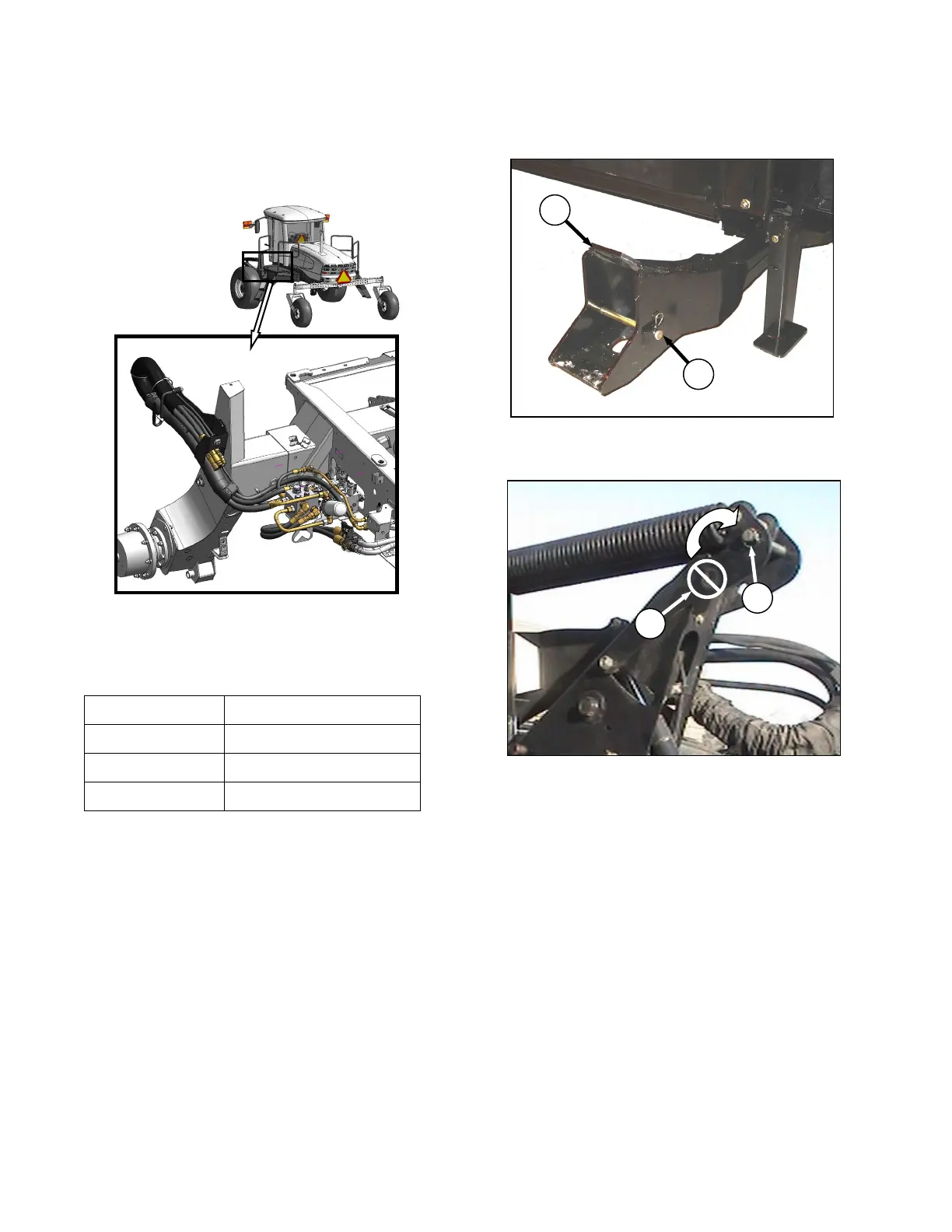

The M205 must be equipped with an auger drive
basic kit and a completion kit as shown.
If necessary, obtain the following kits from your
MacDon dealer and install them in accordance
with the instructions supplied with the kits.
Base Kit B5491
Coupler B5497
6.6.1 HEADER ATTACHMENT
a. Remove hairpin from pin (A), and remove pin
from left and right header boots (B) on header.
IMPORTANT
To prevent damage to the lift system when
lowering header lift linkages without a
header or weight box attached to
windrower, ensure that float engagement
pin is installed in storage location (C), and
not installed at hole location (D).
(continued next page)
