HEADER OPERATION – D SERIES
Form 169469/169470/169471 91 Revision C

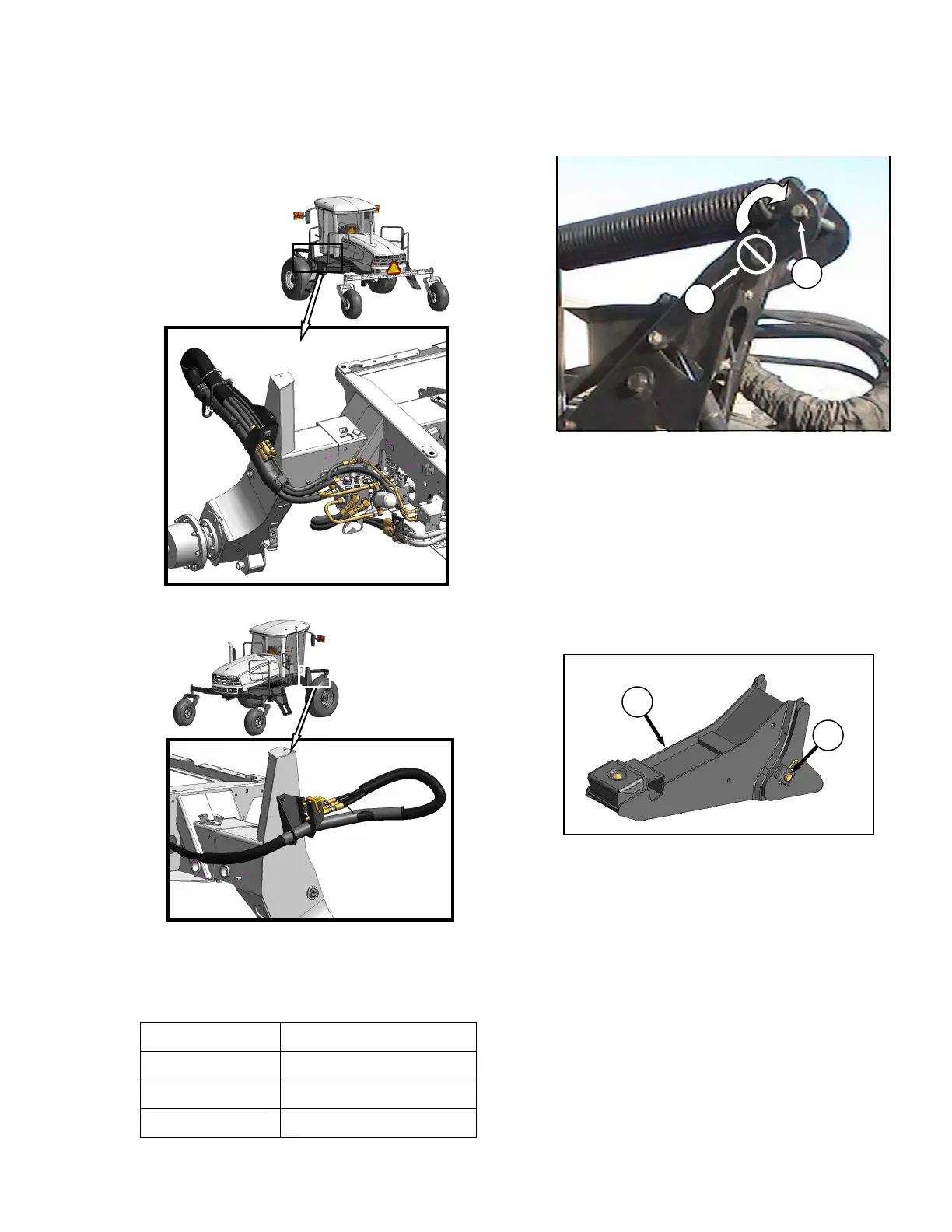

6.5 D SERIES HEADER OPERATION
The M205 must be equipped with a draper drive
basic kit and a completion kit as shown.
If necessary, obtain the following kits from your
MacDon dealer and install them in accordance
with the instructions supplied with the kits.
Base Kit B5491
Coupler B5497
6.5.1 HEADER ATTACHMENT
IMPORTANT
To prevent damage to the lift system when
lowering header lift linkages without a
header or weight box attached to
windrower, ensure that float engagement
pin is installed in storage location (A), and
not installed at hole location (B).
a. If not installed, attach draper header boots
(supplied with header) to windrower lift linkage
as follows:
1. Remove pin (C) from boot (D).
(continued next page)
DRAPER HEADER REEL HYDRAULICS
