HEADER OPERATION – D SERIES
Form 169469/169470/169471 92 Revision C

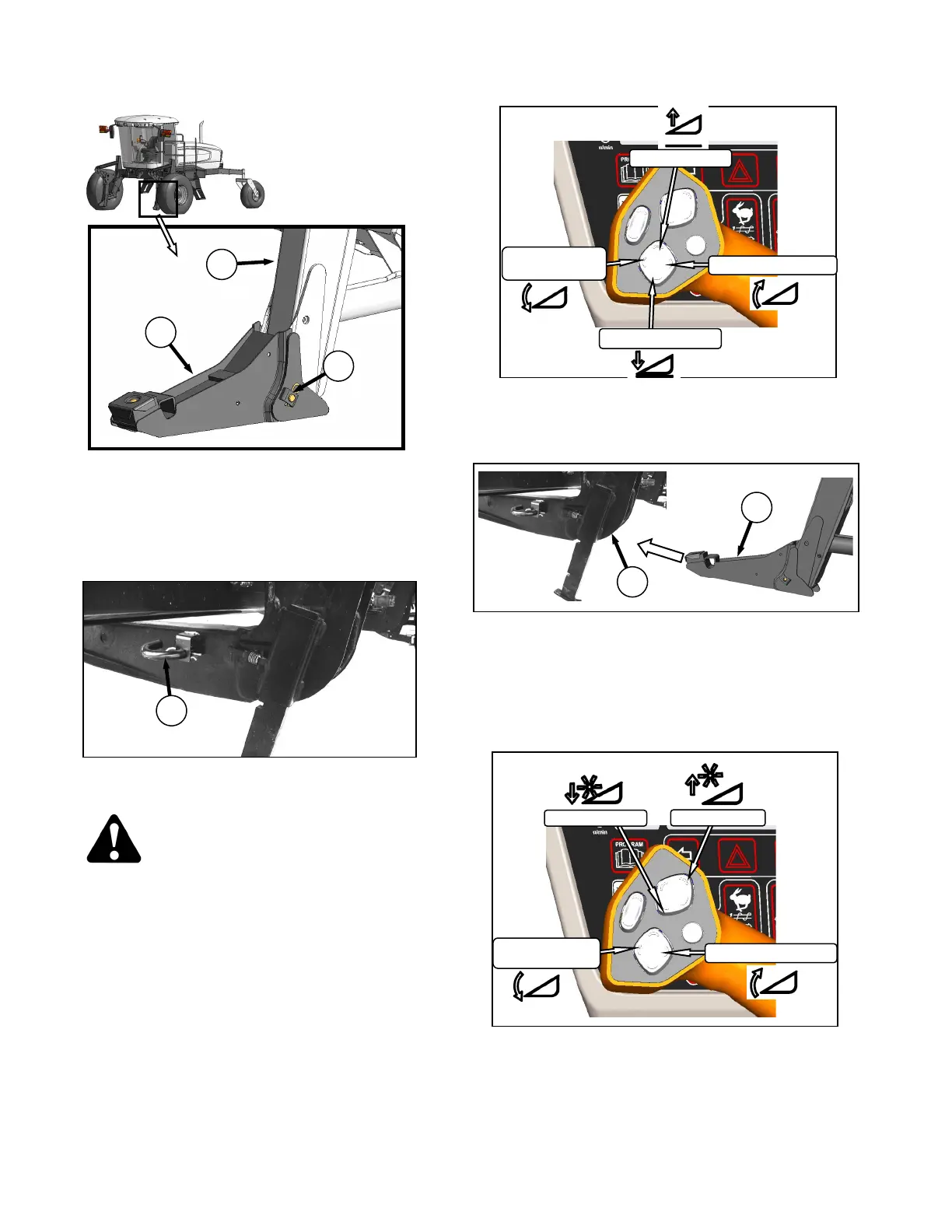

2. Locate boot (D) on lift linkage (E) and
reinstall pin (C). Pin may be installed from
either side of boot.
3. Secure pin (A) with hairpin.
4. Repeat for opposite side.
b. Remove hairpin on pins (F) and remove pins
from header legs.
CAUTION
Check to be sure all bystanders have cleared
the area.
c. Start the engine and activate HEADER DOWN
button on the GSL to fully retract header lift
cylinders.
d. Slowly drive windrower forward so that boots (D)
enter header legs (G). Continue to drive slowly
forward until lift linkages contact support plates
in the header legs, and header nudges forward.
e. Check that linkages are properly engaged in
header legs, contacting support plates.
f. Adjust the position of the center link cylinder with
the REEL UP and REEL DOWN switches, and
HEADER TILT switches on the GSL to position
the hook above the header attachment pin.
