OPERATOR’S STATION
Form 169469/169470/169471 34 Revision C

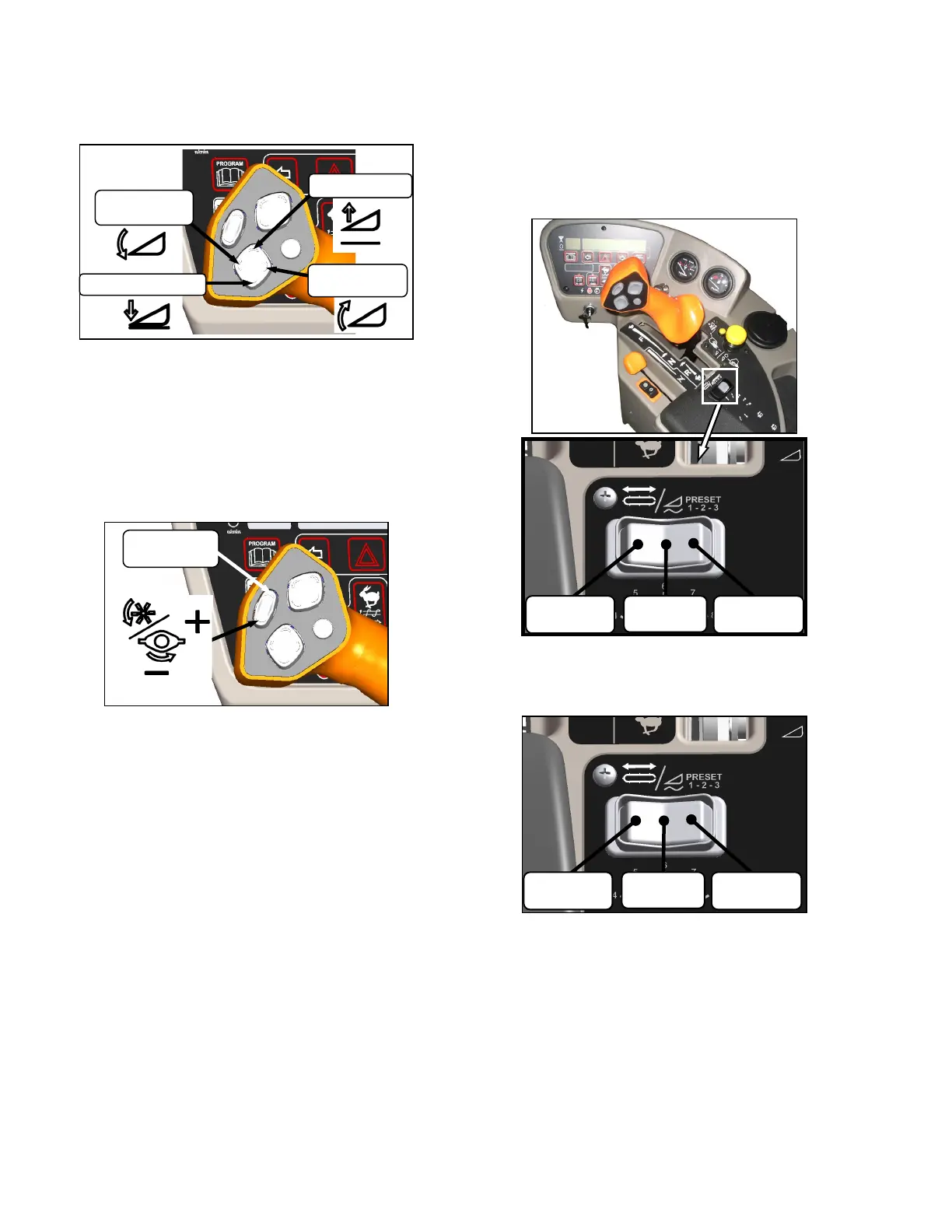

5.17.3.3 Header Position Switches
Press and hold switch at location shown to move
header. Release switch at desired position.
NOTE
Refer to the specific header section in this
manual for detailed switch operating
modes.
5.17.3.4 Reel & Disc Speed Switches
Press and hold switch at location shown to
change reel or disc speed. Release switch at
desired speed.
• Auger Header
A30 – Not applicable.
A40 - Auger speed is automatically maintained
when reel speed is changed.
IMPORTANT
Reel speed on auger header must not
exceed 85 rpm. Auger speed not to
exceed 320 rpm.
• Draper Header
Reel speed is limited in INDEX HEADER
SPEED mode.
• Rotary Header
Conditioner speed automatically adjusts when
disc speed is changed.
5.17.4 CONSOLE HEADER SWITCHES
The operator’s console contains switches for the
following header functions.
5.17.4.1 Deck Shift/Float Preset Switch
• Draper Header with Deck Shift Option -
Controls deck shifting for double windrowing
options with a draper header.
• Draper Header with Fixed Decks/Auger
Header/Rotary Header
Selects pre-programmed header float settings.
Refer to Section 6.4.2 Flotation, for instructions
to preset the float.
NOTE
Refer to the specific header section in this
manual for detailed switch operating
modes.
HEADER DOWN
HEADER UP
HEADER
TILT DOWN
HEADER
TILT UP
REEL / DISC
SPEED
SLOW
FAST
CENTER
DELIVERY
RIGHT SIDE
DELIVERY
LEFT SIDE
DELIVERY
FLOAT
PRESET
2
FLOAT
PRESET 3
FLOAT
PRESET 1
