MacDon M205 2010 - Cab Display Module (CDM); Engine and Windrower Functions; Header Functions

OPERATOR’S STATION
Form 169469/169470/169471 35 Revision C

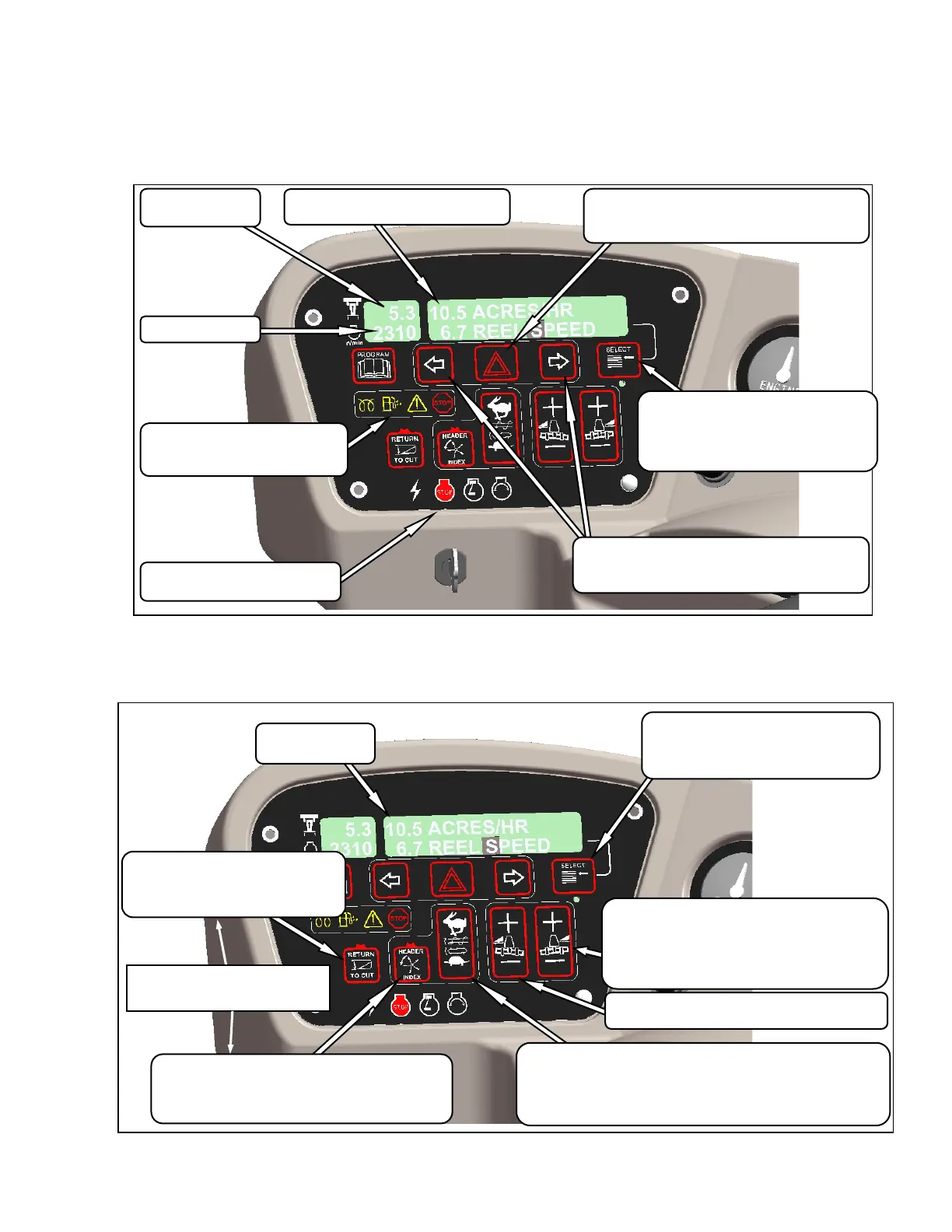

5.18 CAB DISPLAY MODULE (CDM)
5.18.1 ENGINE AND WINDROWER
FUNCTIONS
5.18.2 HEADER FUNCTIONS
FLOAT SWITCH – HEADER RIGHT SIDE
Changes Header Float
Push + to Increase/Push – to Decrease
Remembers Setting with Deck Shift Option If
Activated With Float Setting Switch
AUGER/DRAPER SPEED ADJUST
Changes Auger/Draper Speed INDEX with INDEX SWITCH on.
Changes Auger/Draper SPEED with INDEX SWITCH off.
Push Upper Switch to Increase
Push Lower Switch to Decrease
DISPLAY
Header Functions
HEADER INDEX SWITCH
Links Reel and Conveyor Speed to Ground Speed
Push-On/Push-Off
Illuminates In On Position
SELECT SWITCH
Allows Operator To Select Display
Item.
Bottom Line - See Pages 36-41
RETURN TO CUT HEIGHT
SWITCH
Allows Cutting Height Pre-Set
Push-On/Push-Off
FLOAT SWITCH – HEADER LEFT SIDE
Same As Above
NOTE
HEADER MUST BE ENGAGED.
HAZARD WARNING LIGHTS SWITCH
Activates Hazard Warning Lights
Cancels Turn Signal
TURN SIGNAL SWITCHES
Activates Turn Signals on Windrower and Header
Push-On/Push-Off
GROUND SPEED
mph or kph
ENGINE RPM
DISPLAY
Engine/Windrower Functions
IGNITION SWITCH POSITIONS
Accessory/Stop/Run/Start
SELECT SWITCH
Allows Operator To Select Display Item
On Lower Line.
See Pages 36-41
Push to Select
ENGINE WARNING LIGHTS
Engine Pre-Heat/Water inside
Fuel/Do not Operate/Stop Engine
