HEADER OPERATION – D SERIES
Form 169469/169470/169471 97 Revision C
6.5.3 HEADER POSITION
Refer to Section 6.4 HEADER OPERATION for
procedures for controlling header height, header
tilt, and float.
6.5.4 REEL FORE-AFT POSITION

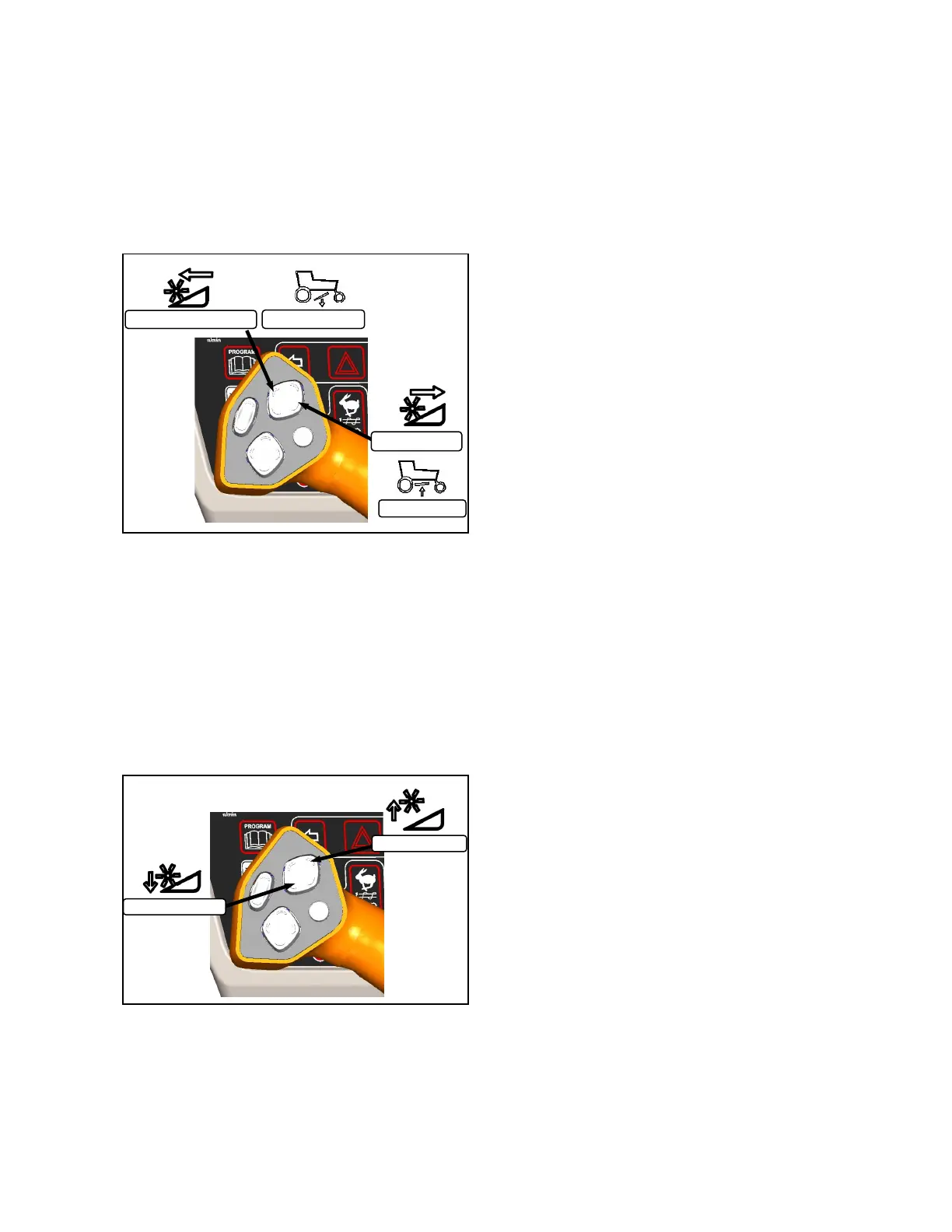

The reel fore-aft position can be hydraulically
adjusted with the optional reel position system,
and is controlled with multi-function switches on
the GSL. Press and hold the switch for the
desired fore or aft movement of the reel.
The switches also control adjustments to the
optional Double Windrow Attachment (DWA)
conveyor and can be activated during
programming the CDM.
6.5.5 REEL HEIGHT
Press and hold the switch for the desired up or
down movement of the reel.
IMPORTANT
Under certain conditions, with reel raised
to full height, the reel tines may contact
the cab roof. Exercise care to avoid
damage to the machine.
