OPERATOR’S STATION
Form 169469/169470/169471 30 Revision C
5.15 ENGINE CONTROLS/GAUGES

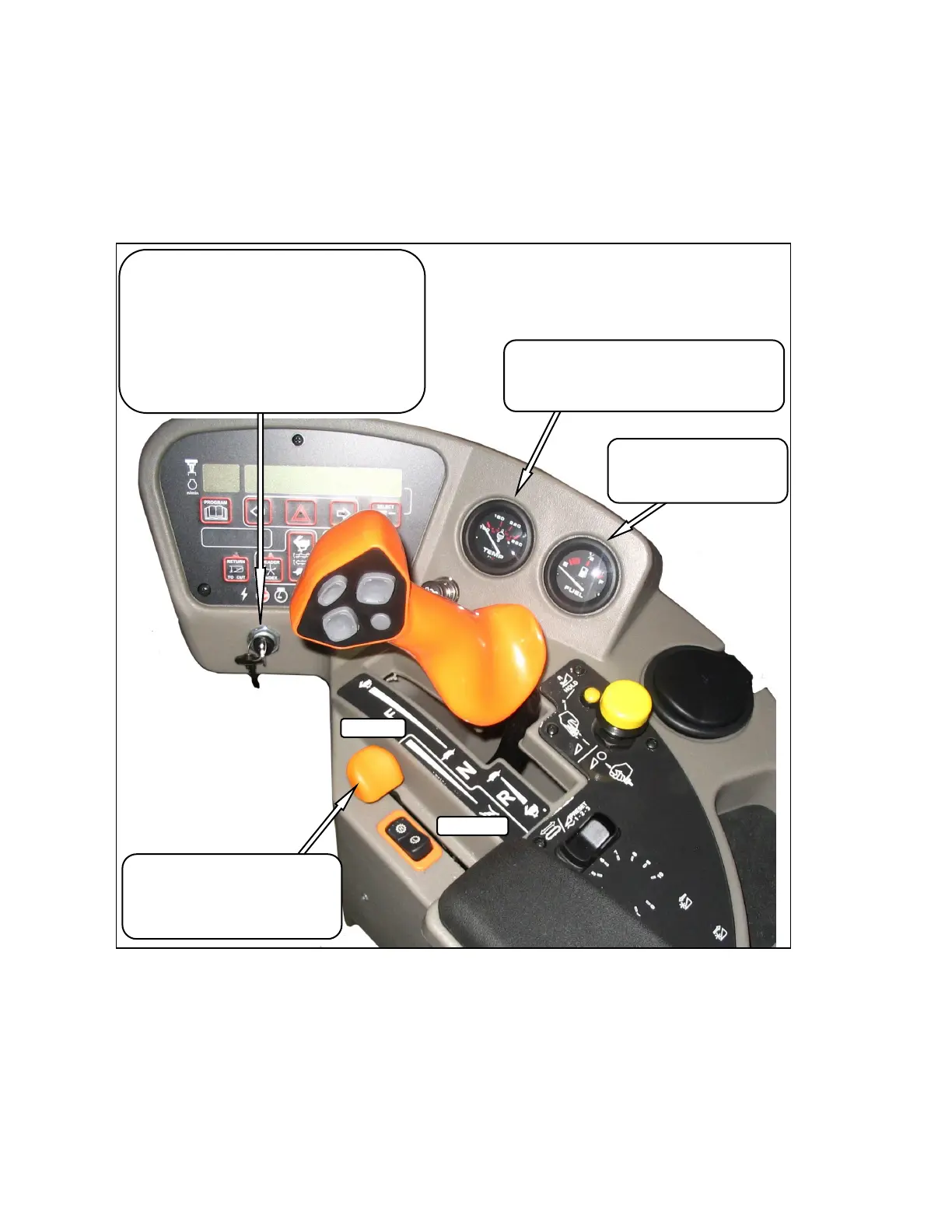

All engine controls and gauges are conveniently
located on the operator’s console. Refer to the
following illustration for the location and a
description of each.
Controls Engine RPM.
FULL – Push Lever Forward
OPERATING – See Section 6.3.6
CLOSED – Pull Lever Back
ACC – Fully Counter-Clockwise
OFF – All Electrical Systems Off
RUN – Clockwise
START– Fully Clockwise To Crank Engine
Release and Switch Returns to RUN
REMOVE KEY WHEN WINDROWER NOT IN USE.
KEY ALSO LOCKS DOORS.
Indicates Fuel Level in Tank
E - Empty
Indicates Engine Coolant Temperature
Normal Running 180°-225°F (82°-107°C).
Warning Tone Over 230°F (110°C).
