7.10.4 FLOOD LIGHTS - FORWARD
The forward floodlights are not adjustable.

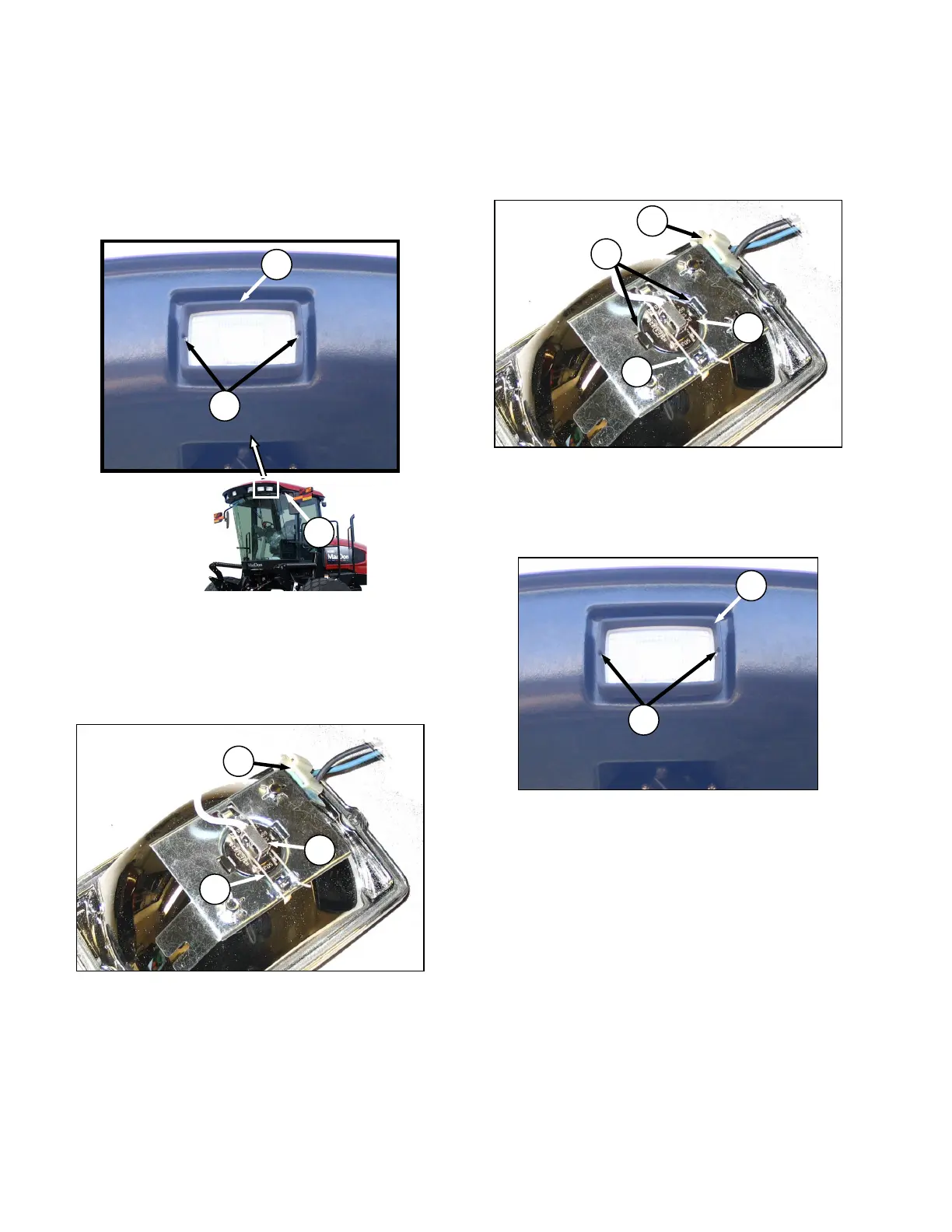

Replace bulbs as follows:
a. Shutdown engine and remove the key. Turn off
the lights.
b. Hold onto the hand-holds (A) on the cab front
corners and stand on the header anti-slip strips
when removing the forward field lights.
c. Remove the two screws (B) and remove light
bezel (C).
d. Remove light from receptacle.
e. Pinch the wire retainer (D) and lift away from
hooks.
f. Remove bulb (E) from body and pull wire from
connector (F).
IMPORTANT
Do not touch the glass of the halogen bulb
as the oils or other chemicals from your
skin will cause the bulb to fail prematurely.
g. Match slots on new bulb (E) with lugs (G) in
optical unit and insert bulb into unit.
h. Secure bulb with wire retainer (D).
i. Push wire into connector (F).
j. Position light into light receptacle, ensuring top
is up, and secure with bezel (C) and screws (B).
