MacDon M205 2010 - Lights; Cab-Forward Lighting: Field

OPERATOR’S STATION
Form 169469/169470/169471 23 Revision C
5.7 LIGHTS
The field and transport light switches are located
on a panel in the cab headliner. Refer to
illustrations on following pages for location of
lights.
The lighting is dependent upon the position of
the operator’s station, i.e. cab-forward mode or
engine-forward mode. The position of the
operator’s station automatically determines the
lighting.
IMPORTANT
Red and amber reflector tape is applied to
be visible in both engine-forward and cab-
forward modes.

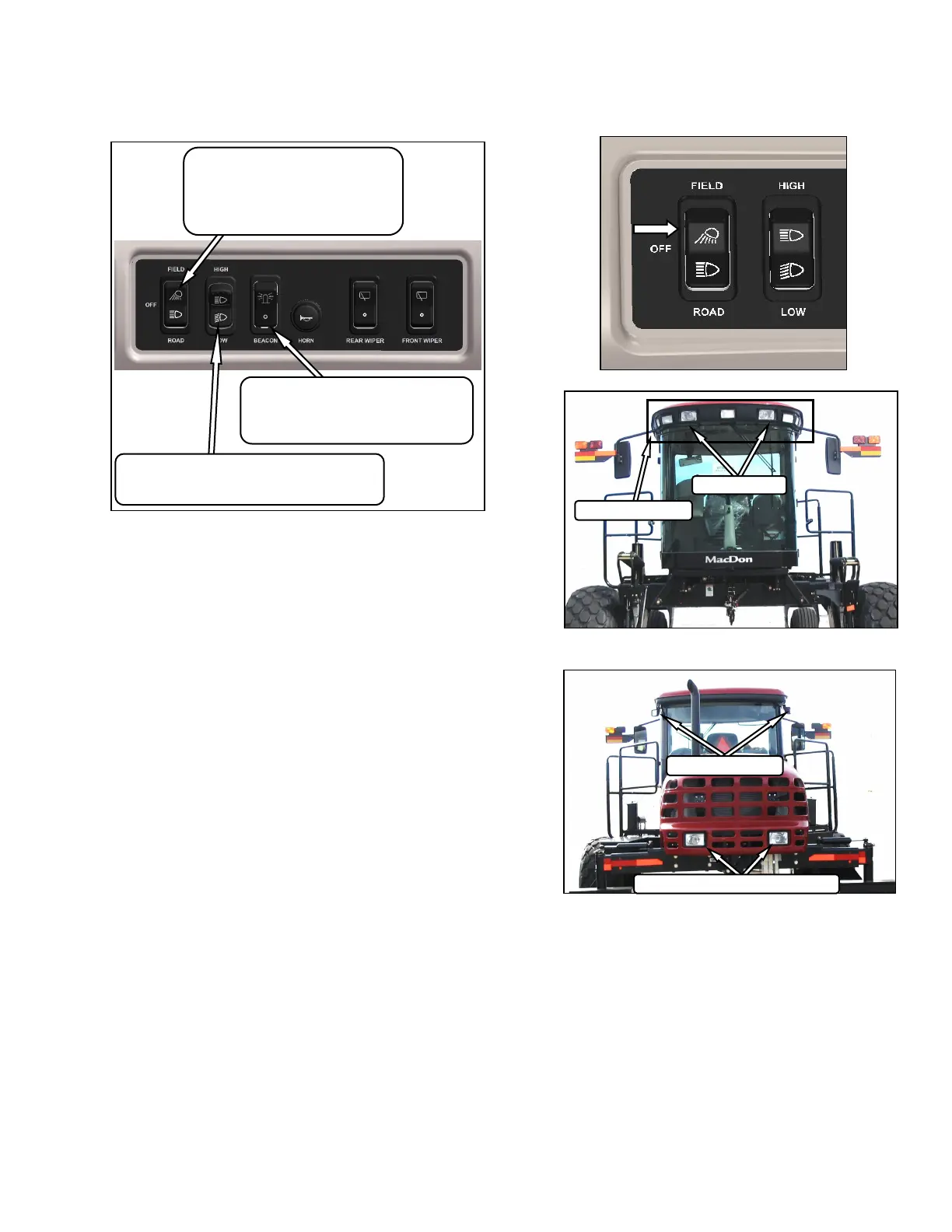

5.7.1 CAB-FORWARD LIGHTING: FIELD
HI/LO LIGHTS
Controls Hi/Lo Beam For Road Lights.
Hi - Lo
LIGHTS
Controls field and transport lights.
Field
Off
Road
BEACON
Controls Beacons On Cab.
Standard for Export. Optional for N.A.
On – Off
REAR - CAB FWD
FRONT - CAB FWD
HIGH / LOW
FIELD LIGHTS
FIELD LIGHTS
SWATH LIGHTS - HIGH / LOW
