HEADER OPERATION – R SERIES
Form 169469/169470/169471 113 Revision C

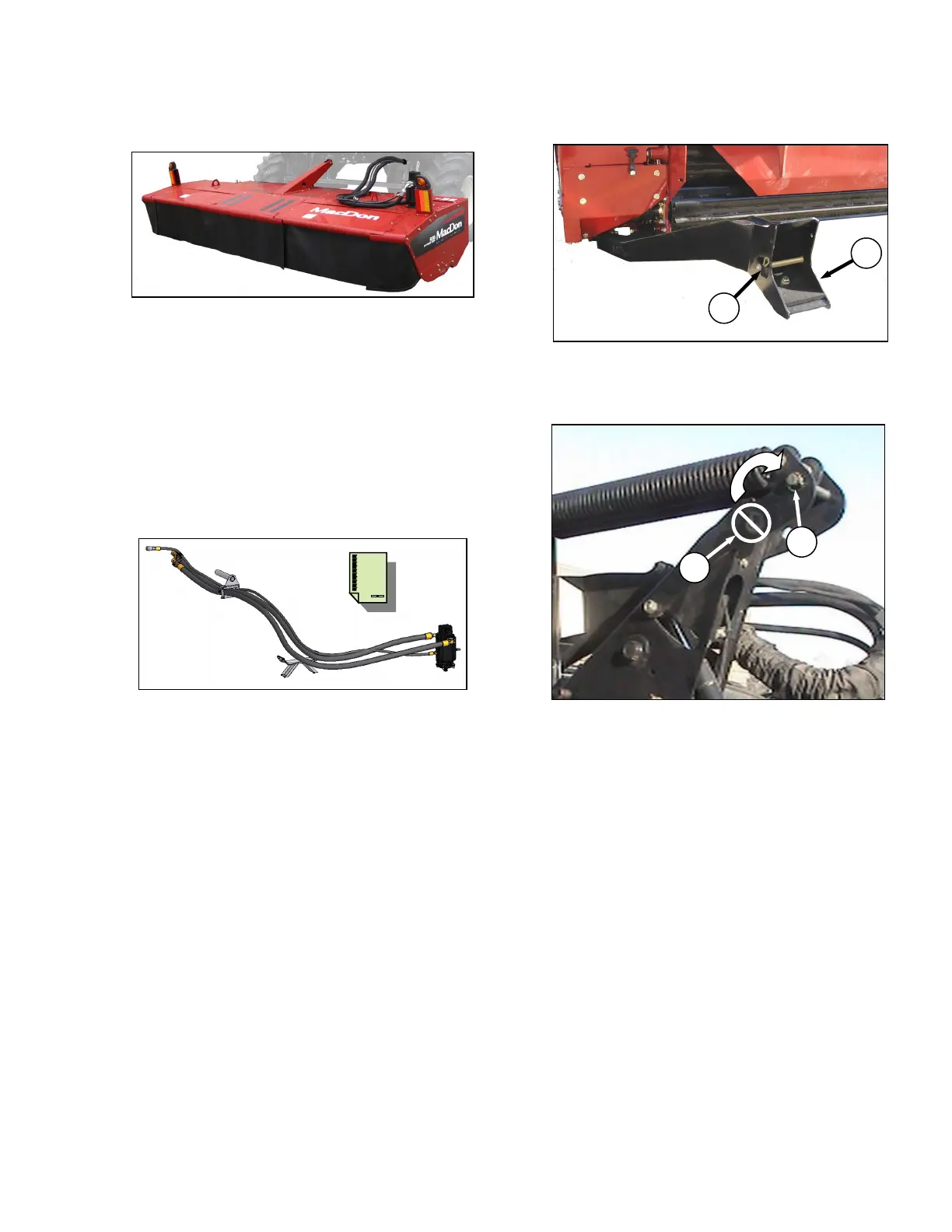

6.7 R SERIES HEADER OPERATION
The M205 is factory equipped with hydraulics
and connections to run the R-Series Rotary Disc
headers.
The R85 16 and 19 foot headers are factory
equipped with hydraulic connections for
attachment to the windrower.
The R85 13 foot header, and the R80 13 and 16
foot headers are shipped without the motor and
hoses installed, and the installation of a
separate motor and hose bundle is necessary.
If required, obtain kit number B5456 from your
MacDon dealer and install it in accordance with
the instructions supplied with the kit. See
above.
6.7.1 HEADER ATTACHMENT
a. Remove hairpin from pin (A), and remove pin
from on left and right header boots (B) on
header.
IMPORTANT
To prevent damage to the lift system when
lowering header lift linkages without a
header or weight box attached to
windrower, ensure that float engagement
pin is installed in storage location (C), and
not installed at hole location (D).
(continued next page)
