5.18.3 OPERATING SCREENS
The M205 windrower Cab Display Module
(CDM) and the Windrower Control Module
(WCM) provide information on several functions
for the engine, header, and windrower.
The information displayed in various operating
modes is described in the following sections:
IGNITION ON - ENGINE NOT RUNNING
DISPLAY (Upper Line)(2-3 Seconds) DESCRIPTION
HEADER DISENGAGED
Indicates Header Engage Switch Is Off.
IN PARK
Indicates GSL In Neutral Detent.
ENGINE-FORWARD - ENGINE RUNNING
(Scroll Through Display with CDM Switch or GSL Switch)
DISPLAY DESCRIPTION
ROAD GEAR
(Upper Line)
Ground Speed Range Switch In High Range.
#####.# ENGINE HRS
(Upper or Lower Line)
Total Engine Operating Time.
#####.# HEADER HRS
(Upper or Lower Line)
Total Header Operating Time.
###### TOTAL ACRES
(Upper or Lower Line)
###### TOTAL HECT
(if Metric)
Total Area Cut By Machine.
##.# HEADER HEIGHT (Upper or Lower Line)
Distance Setting (00.0-10.0) Between Cutterbar &
Ground.
##.# HEADER ANGLE
(Upper or Lower Line)
Angle Setting (00.0-10.0) Header Relative to Ground.
### °C or F HYD OIL
Hydraulic Oil Temperature.
##.# VOLTS
(Upper or Lower Line)
Engine Electrical System Operating Voltage.
SCROLL (Lower Line)
Displays Above Items After 2-3 Seconds. Press
SELECT to cancel.

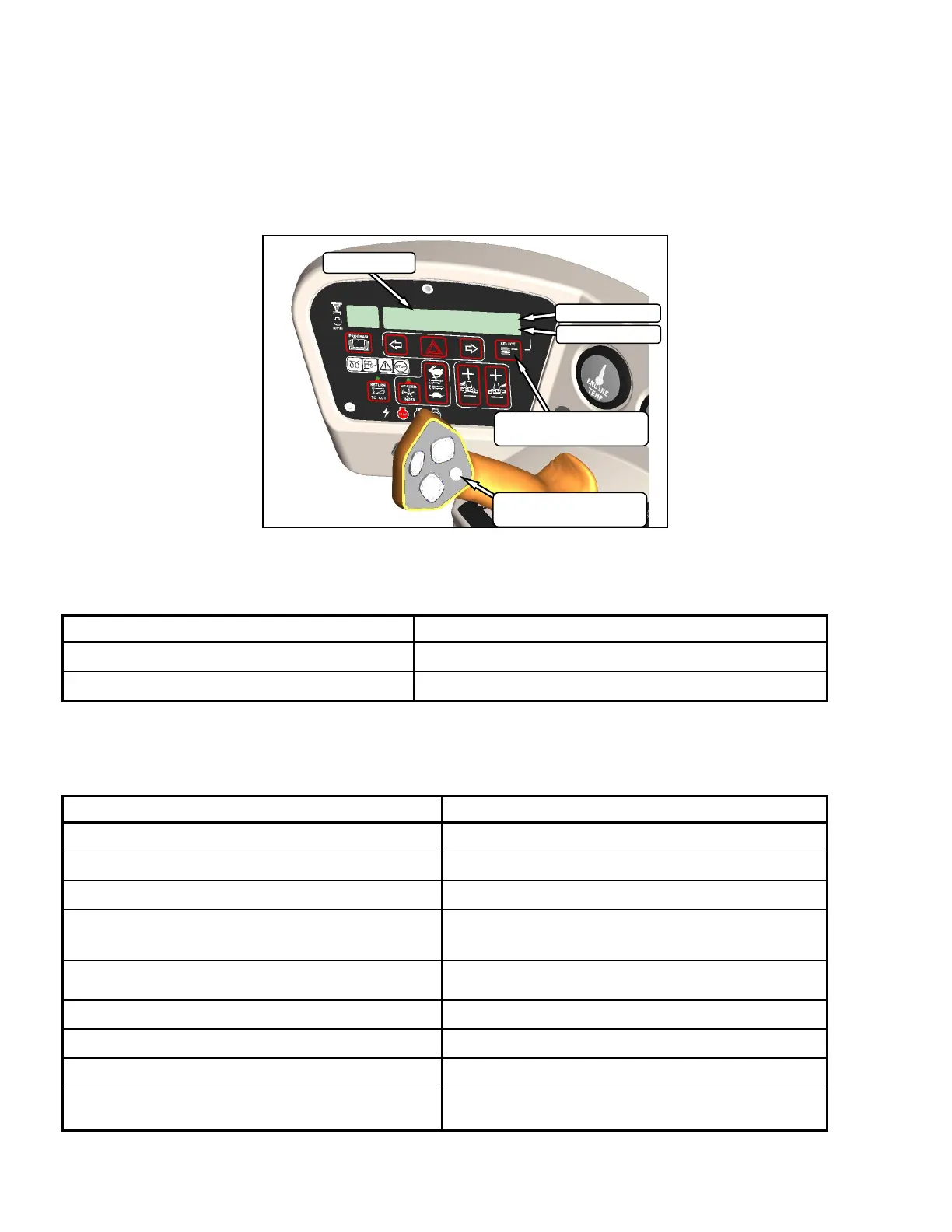

DISPLAY SELECTOR
FOR UPPER LINE
DISPLAY
UPPER LINE
LOWER LINE
DISPLAY SELECTOR
FOR LOWER LINE
