HEADER OPERATION – D SERIES
Form 169469/169470/169471 96 Revision C

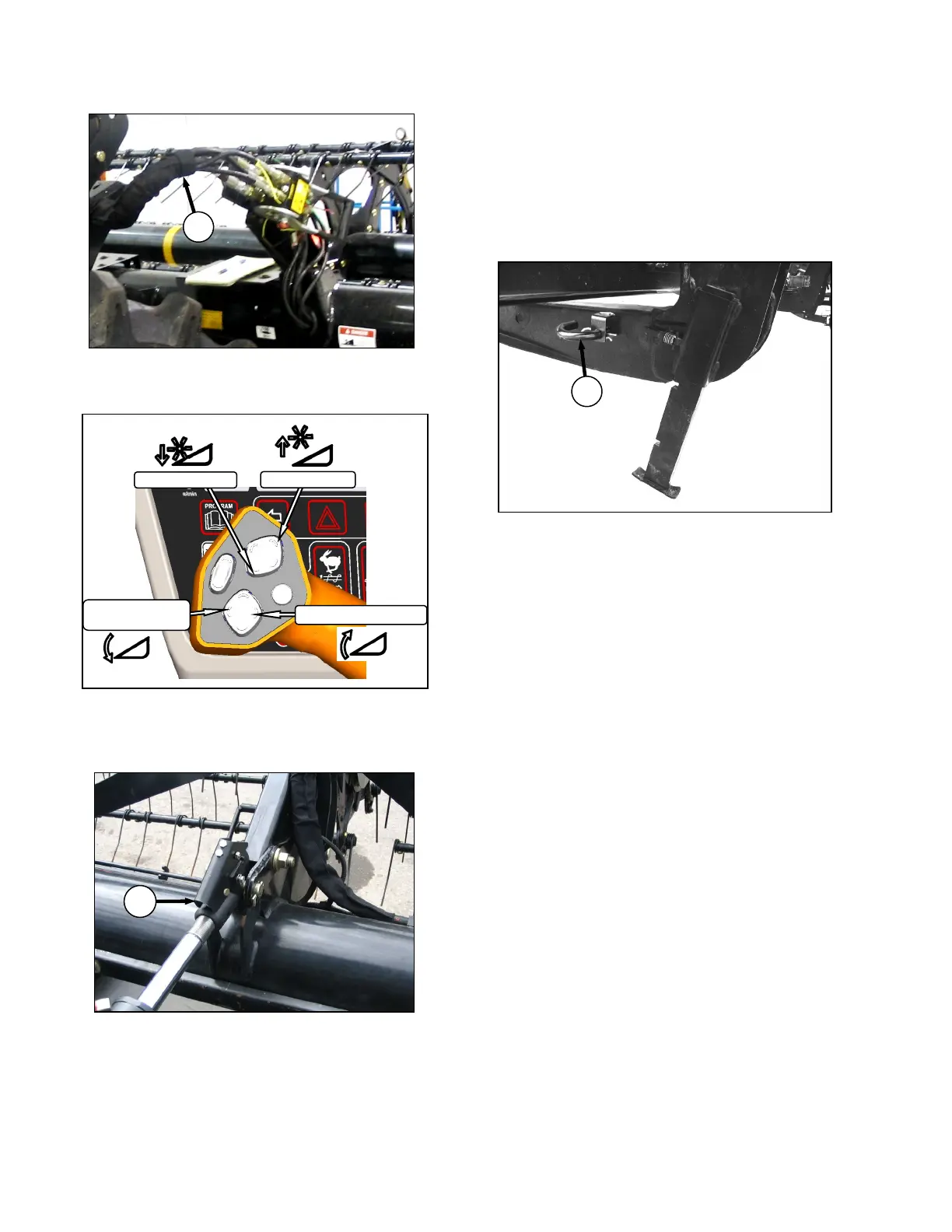

i. Disconnect reel hydraulics (H) and store on
bracket at windrower LH side.
j. Start engine and activate HEADER TILT cylinder
switch on GSL to release load on center link
cylinder.
k. Lift release (M).
l. Operate the link lift cylinder with REEL UP
switch on GSL to disengage the center link from
the header.
m. Slowly back windrower away from header.
NOTE
If hay conditioner is installed, watch
clearances on both sides.
n. Reinstall pin (A) into header leg and secure with
hairpin.
