MAINTENANCE AND SERVICE
Form 169469/169470/169471 176 Revision C
IMPORTANT
Do not touch the glass of the halogen bulb
as the oils or other chemicals from your
skin will cause the bulb to fail prematurely.

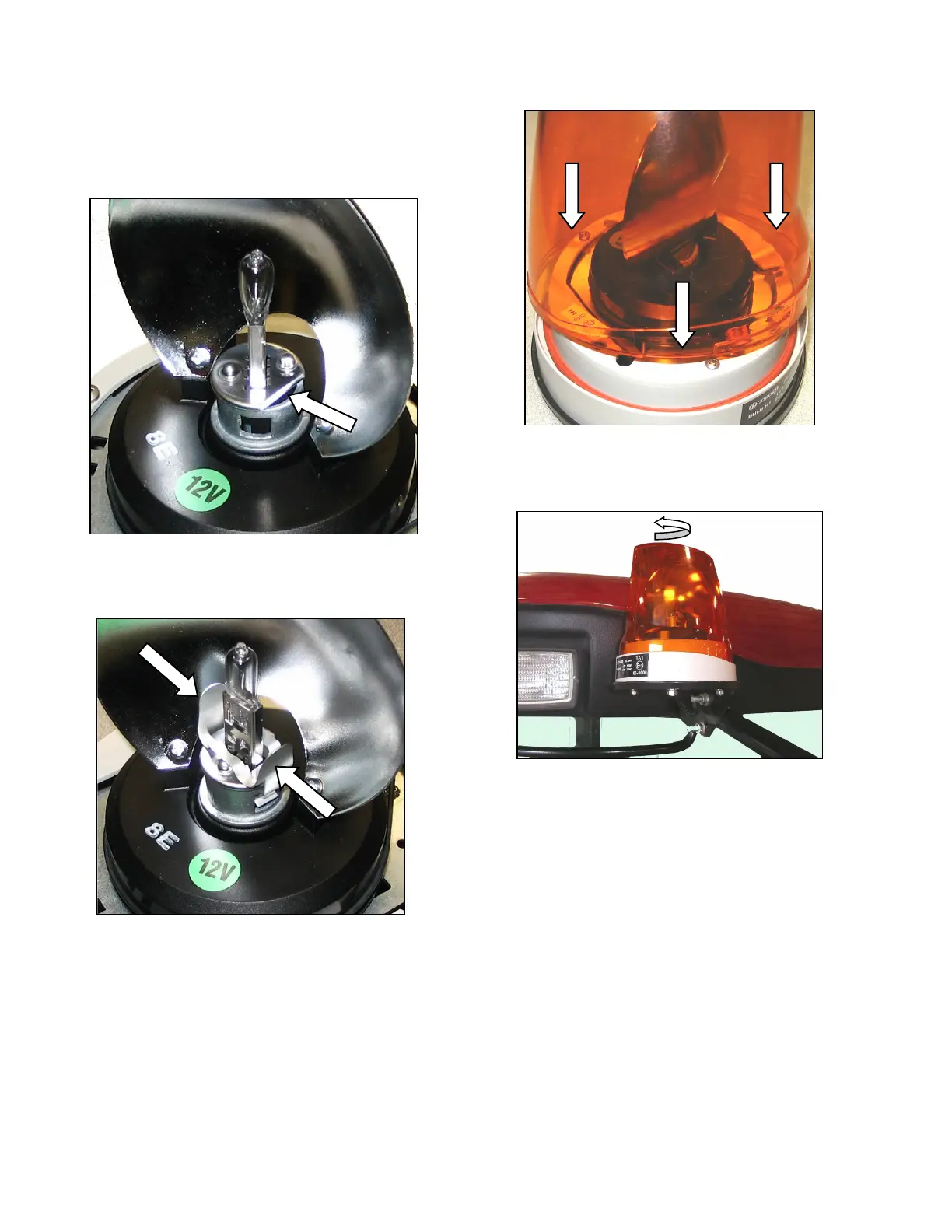

f. Connect harness to new lamp, place lamp in
socket and line up flat side on lamp with recess
in socket.
g. Place retainer over lamp and pinch tabs to
secure retainer to socket.
h. Line up the three lugs (one is longer) in the base
with slots in lens and seat the lens against the
rubber seal.
i. Turn the lens clockwise to lock it in place.
