Universal switching box
This switching box acts as an interface to another device, for example an
extractor. It turns the device on/off, synchronising its operation with the Spraytec.
The Universal switching box is connected between the Spraytec and the device.
'
Note
.
This is not for use with the extractor provided by Malvern Instruments
for use with the Spraytec. This uses a dedicated Extractor interface box.

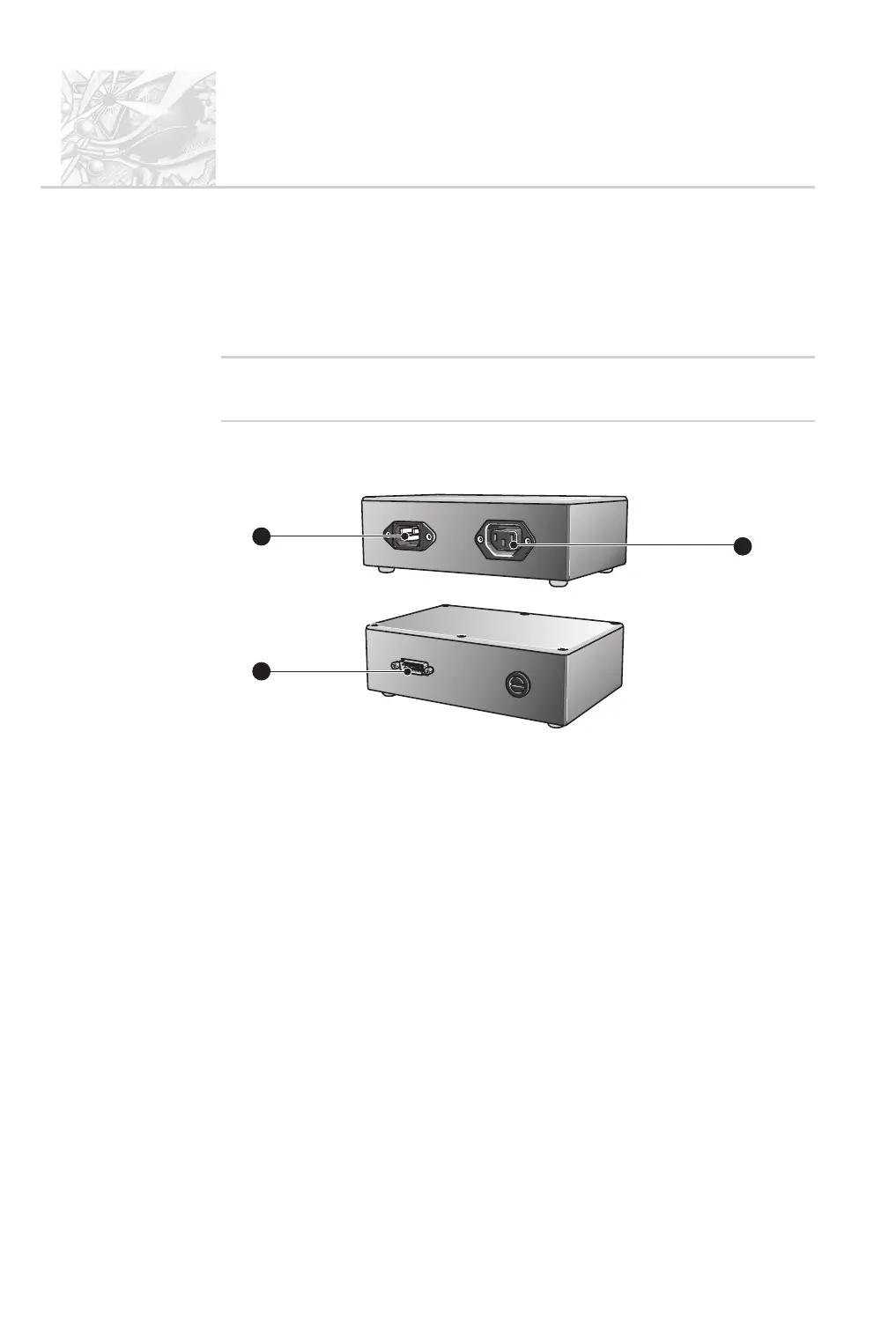

These diagrams show the Universal switching box from the front (top picture)
and the back:
The connections are as follows:
+
Mains power socket.
,
Connection to auxiliary device.
-
Connection to Spraytec.
Computer and monitor
A computer of suitable specification is normally supplied. For information on the
computer requirements, contact Malvern Instruments.
We recommend that this control computer is used to run the Spraytec software
only.
