Bench shroud
The wet environment Spraytec includes a detachable Bench shroud which covers
the X-bar. The Bench shroud is used when measuring high volume sprays to
ensure the spray is not deflected back into the Spraytec measurement zone.
The shroud has three similar sections which clip onto the X-bar using clips on
their lower surface. The central section has four clips, the others have two.
$

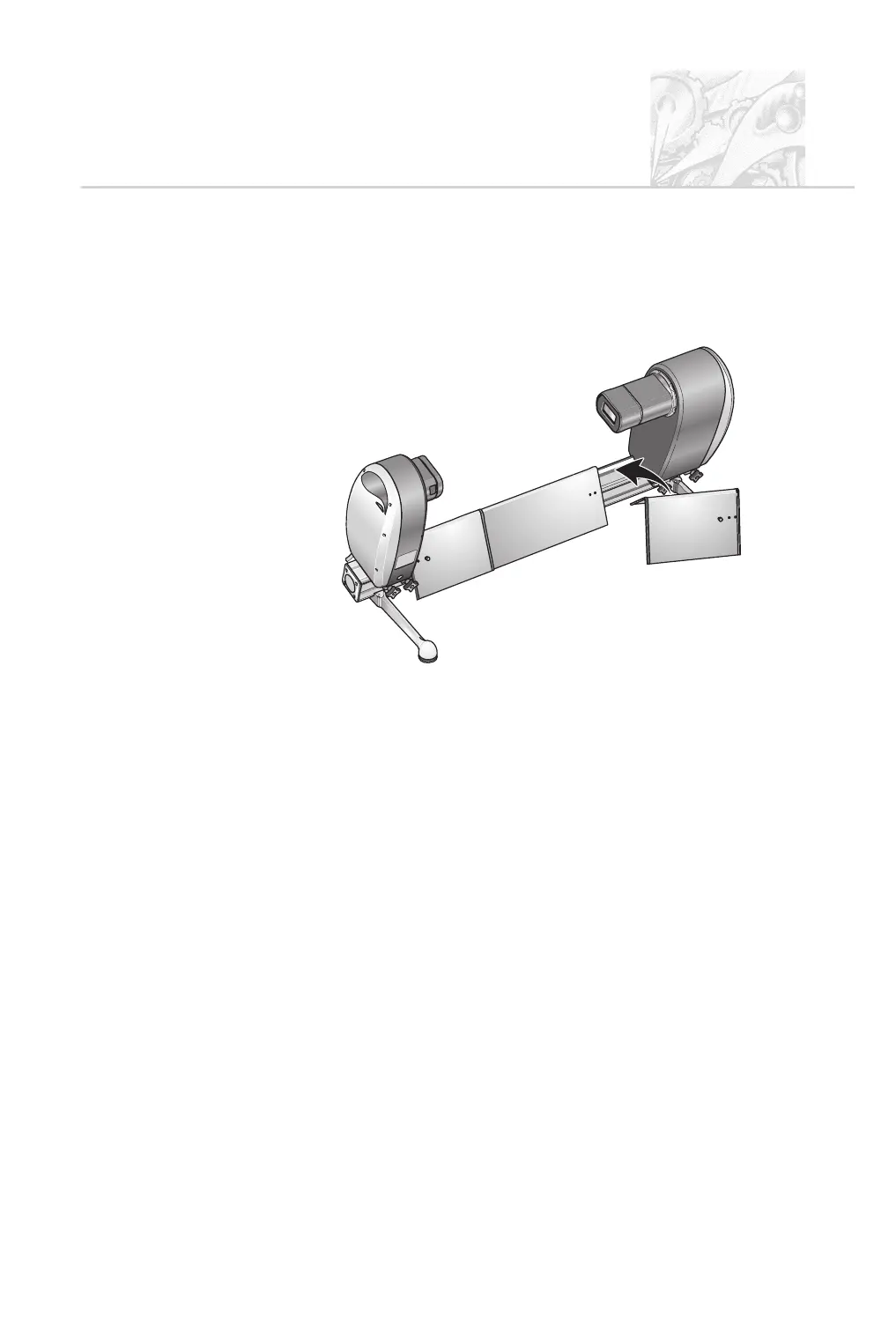

To fit the bench shroud:
.
Place the central section over the X-bar first, pushing its clips into place.
.
Place the end sections so that they overlap the central section on each side.
.
Push the end sections out from the centre until they reach the base of the
Transmitter and Receiver modules.
CHAPTER 3
Spraytec Page 3.9
ILL 7467
