MAN B&W 19.10
Page 2 of 11
MAN Diesel
Pos. Description
Mass Dimensions (mm)
(kg) A B C D E
1 Guide ring for piston 24.4 70 582
2 Lifting tool for piston 21.2 620 100 535 30 50
3 Support iron for piston 44.7 941 550 435
4 Crossbar for cylinder liner, piston 29.9 860 150 100 45 50

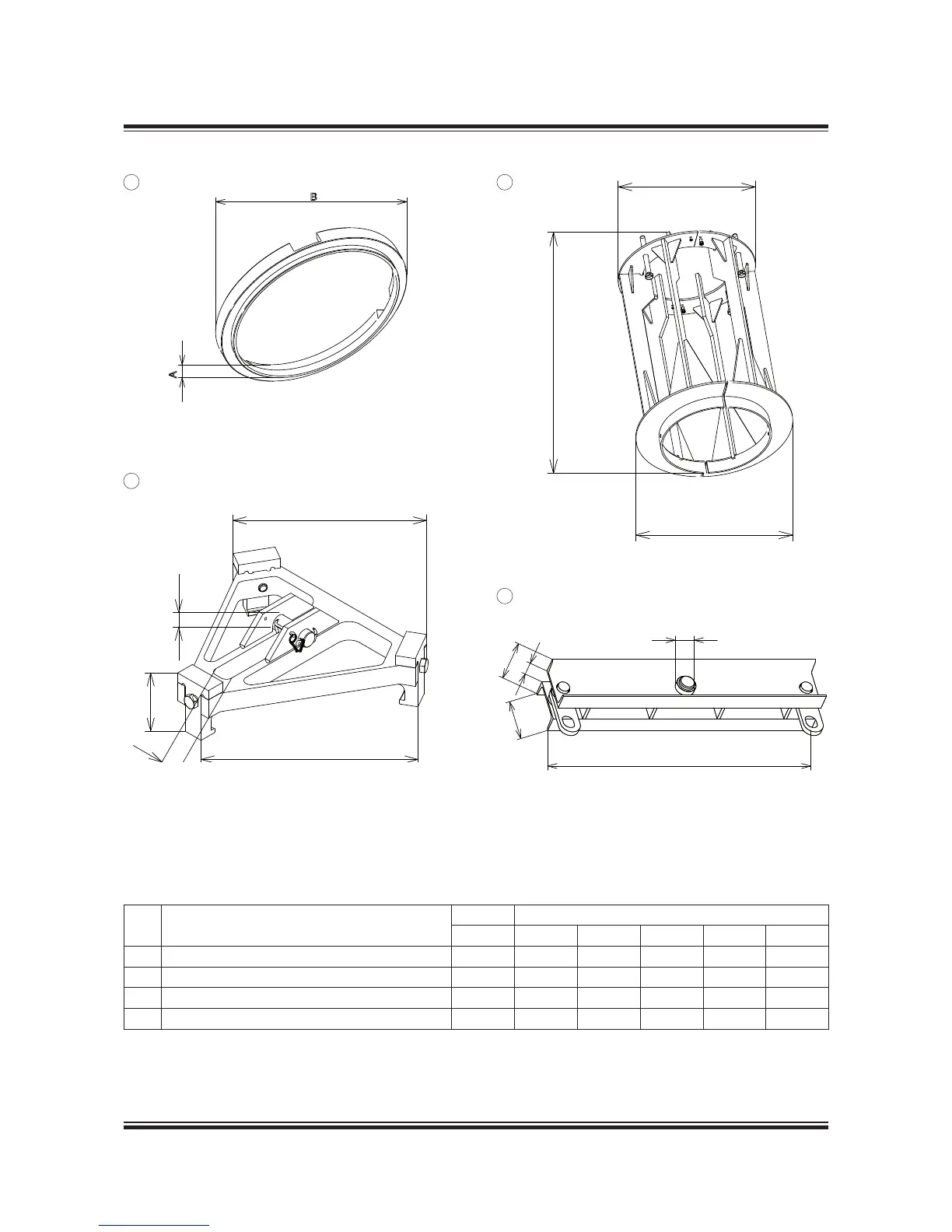

Fig. 19.10.01: Dimensions and masses of tools
MAN B&W S50MC-C7/8 198 64 31-6.0
122 66 40-0.1.0
"
!
122 66 25-7.1.0
#
$
"
%
!
122 66 29-4.1.0
#
!
"
2
4
1 3
122 66 72-3.1.0
!
"
%
#
$
