I/O settings - digital input/output

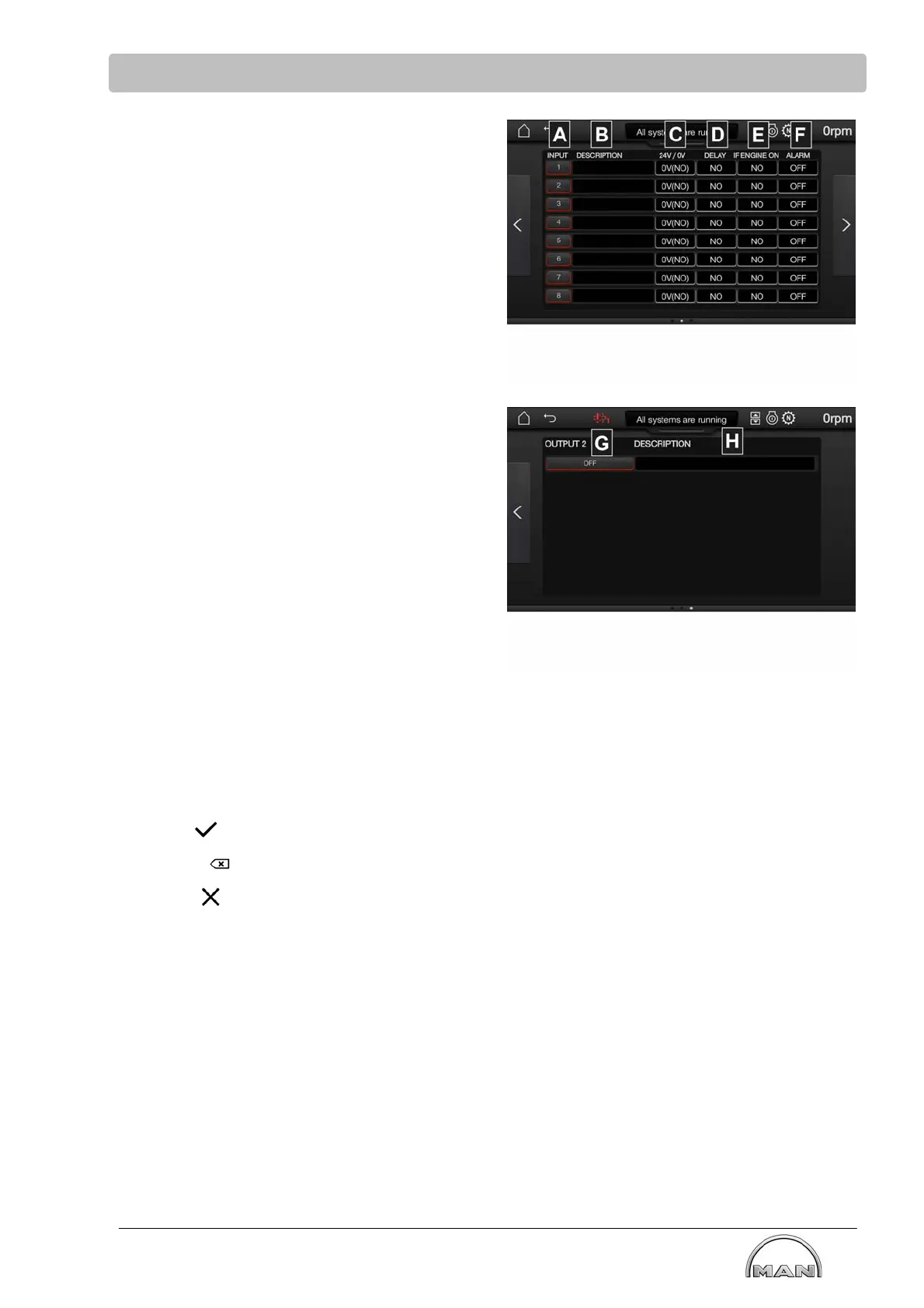

The following settings can be made on this page:
A Input:
Activating/deactivating the digital input by operating the numbers.
B Description
Description of the digital input is possible by operating the field → Keyboard appears
Keyboard commands:
OK →
ENTF →
ESC →
C Selectable between 24 V (NC = normally open) and 0 V (NO = normally closed)
If the conditions are not met, an alarm is triggered (depending on settings, see alarm ON/OFF)
D Delays:
delay selectable from: none / 5 / 10 / 30 / 60 or 90 seconds
E Only with engine running
Confirmation with YES/NO as to whether information is to be ignored
F Alarm
Selectable with YES/NO as to whether an alarm is to be triggered. If NO, only active LED.
G Output 2
Selectable with YES/NO as to whether output 2 is to be used
H see B
To Next Page
