TRANSMISSION AND TORQUE CONVERTER CD3340B/YB4411
7-8
Published 04/07/2015 Control # 569-00

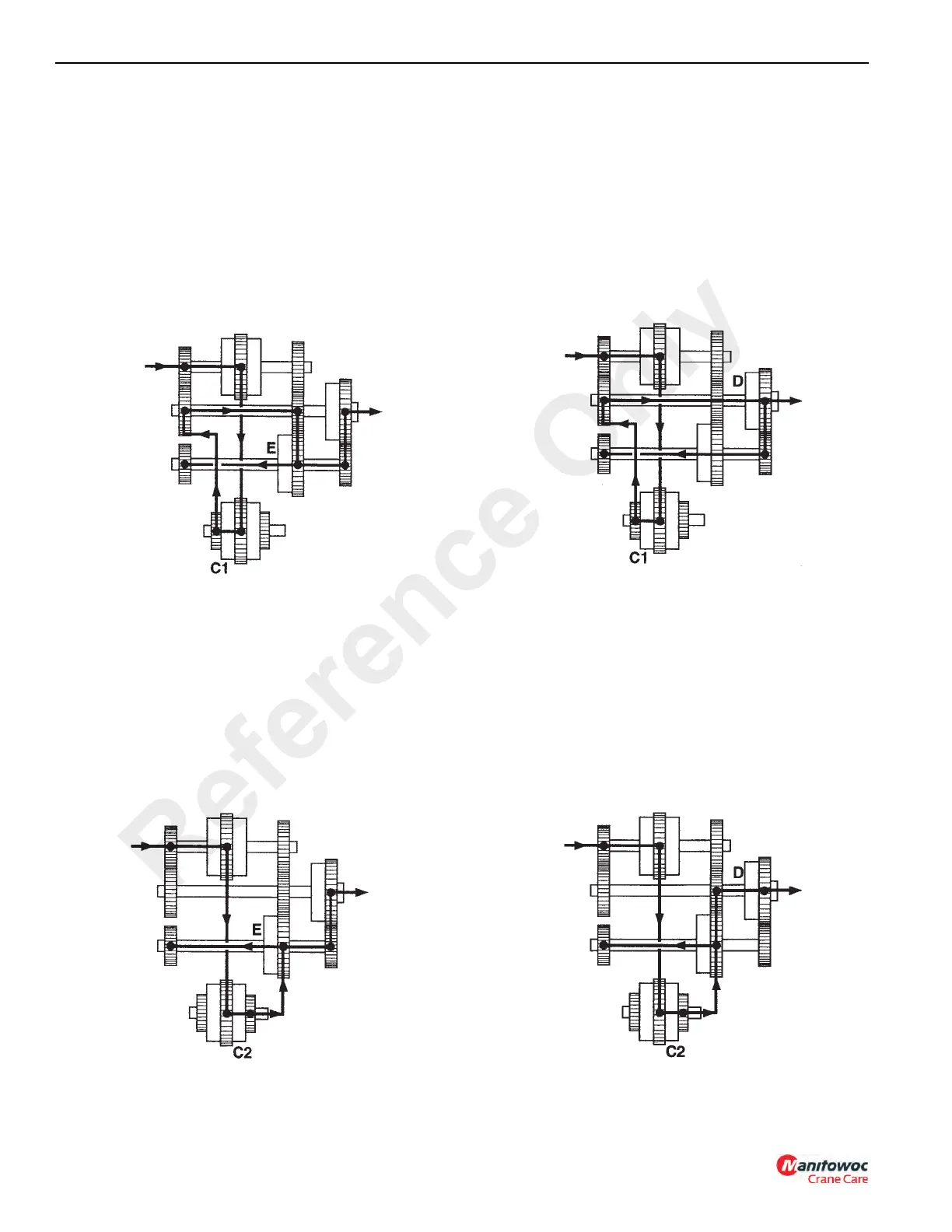

Drive Paths - Forward
1st Gear Forward
Clutches Engaged
C1 - Forward Low Ratio
E - Layshaft
Solenoids Active
L1 - Forward Low Ratio
M1 - Layshaft
2nd Gear Forward
Clutches Engaged
C2 - Forward High Ratio
E - Layshaft
Solenoids Active
L2 - Forward High Ratio
M1 - Layshaft
3rd Gear Forward
Clutches Engaged
C1 - Forward Low Ratio
D - Mainshaft
Solenoids Active
L1 - Forward Low Ratio
M2 - Mainshaft
4th Gear Forward
Clutches Engaged
C2 - Forward High Ratio
D - Mainshaft
Solenoids Active
L2 - Forward High Ratio
M2 - Layshaft
A0786
A0788
A0787
A0789
Reference Only
