GROVE 7-9
CD3340B/YB4411 TRANSMISSION AND TORQUE CONVERTER
7
Published 04/07/2015 Control # 569-00

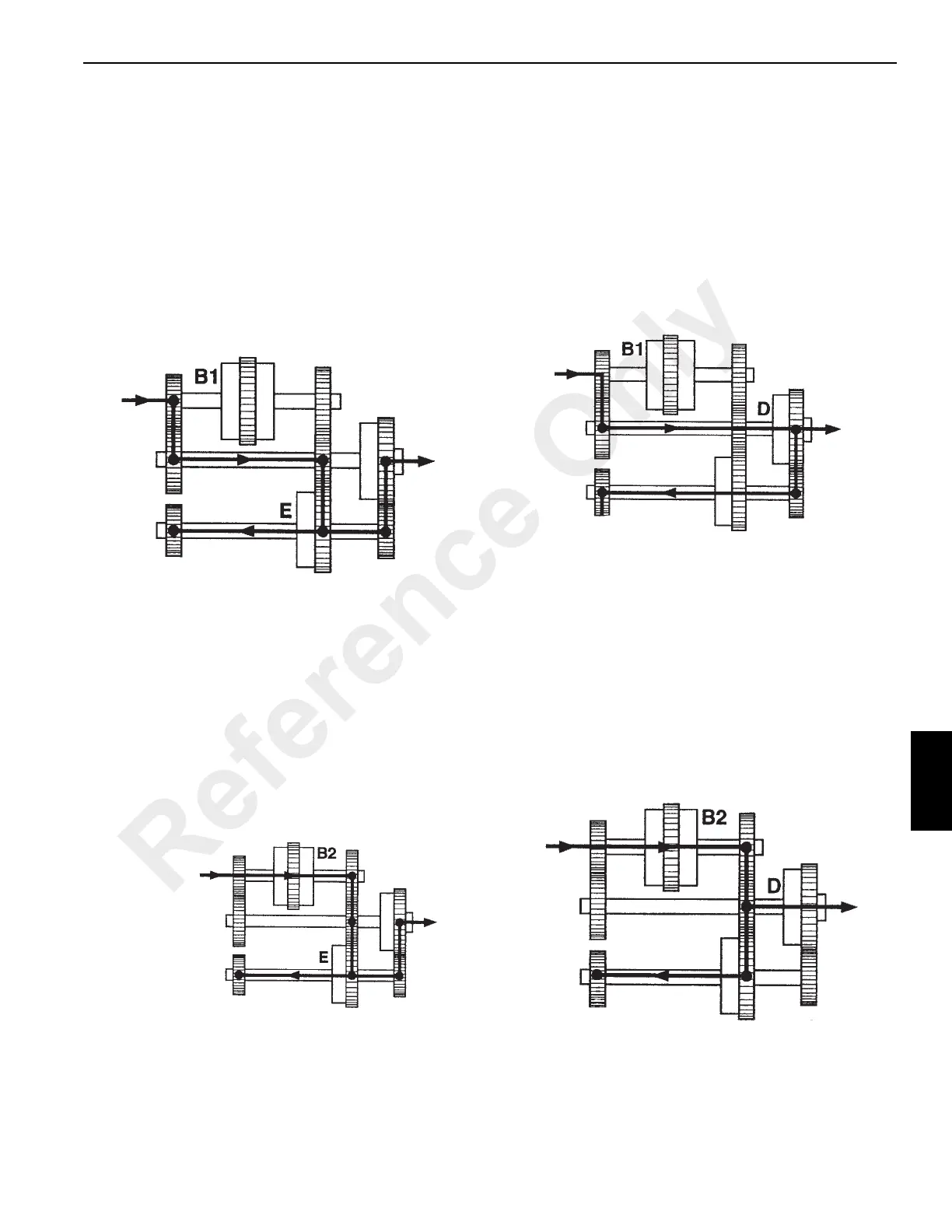

Drive Paths - Reverse
1st Gear Reverse
Clutches Engaged
B1 - Reverse Low Ratio
E - Layshaft
Solenoids Active
G1 - Reverse Low Ratio
M1 - Layshaft
2nd Gear Reverse
Clutches Engaged
B2 - Reverse High Ratio
E - Layshaft
Solenoids Active
G2 - Reverse High Ratio
M1 - Layshaft
3rd Gear Reverse
Clutches Engaged
B1 - Reverse Low Ratio
D - Mainshaft
Solenoids Active
G1 - Reverse Low Ratio
M2 - Mainshaft
4th Gear Reverse
Clutches Engaged
B2 - Reverse High Ratio
D - Mainshaft
Solenoids Active
G2 - Reverse High Ratio
M2 - Mainshaft
A0790
A0792
A0791
A0793
Reference Only
