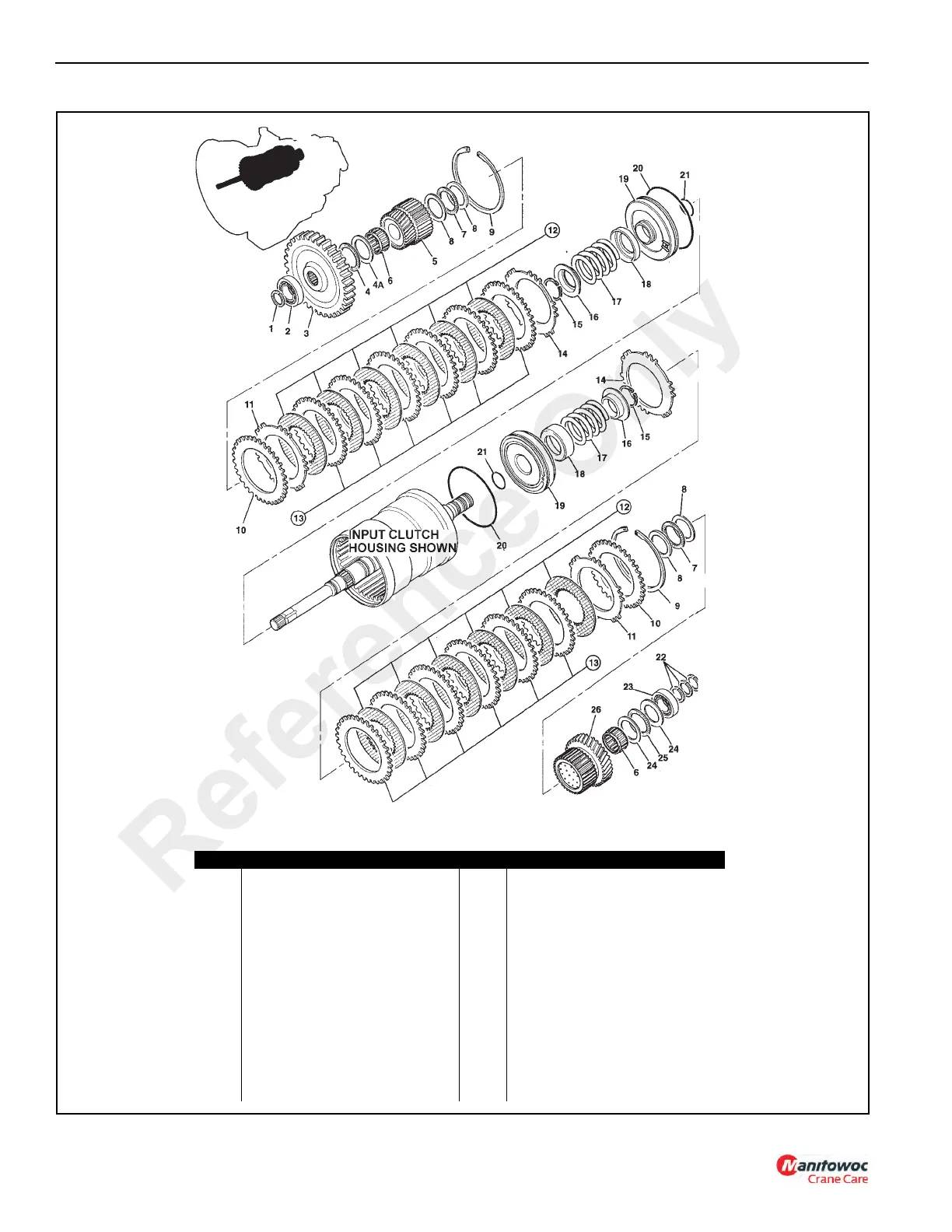

FIGURE 7-70
a0834
Item Description Item Description
1 Piston Ring Seal 13 Counter plates (12)
2 Bearing 14 Disc spring
3 Gear 15 Retaining ring (2)
4 Needle thrust bearing 16 Spring retaining plate (2)
4a Thrust washer 17 Spring (2)
5 Hub assembly 18 Oil baffle (2)
6 Needle roller bearing 19 Piston (2)
7 Thrust washer (2) 20 O-ring (2)
8 Thrust washer (4) 21 O-ring (2)
9 Retaining ring (2) 22 Piston ring seals (2)
10 Shim (2) 23 Bearing
11 Pressure end plate.(2) 24 Thrust washer (2)
12 Friction plates (12) 25 Needle roller thrust bearing
