AXLES/DRIVE SHAFTS/WHEELS AND TIRES CD3340B/YB4411
8-2
Published 04/07/2015 Control # 569-00
TECHNICAL DATA
Front Steering Drive Axle
Type.............................................................3-piece spiral
bevel input with epicyclic hub reduction and inboard braking
Installation...................................................Rigid pad mount
Number of steering cylinders........................One
Weight (dry)...............................................355 kg (783 lb)
Type of brakes................................................Wet disc brake
Number of brake discs (each side)....................One
Number of brake counterdiscs (each side)......Two
Nominal brake disc thickness.............4.83 mm (0.19 in)
Nominal brake counterdisc thickness....5.0-10.8 mm (0.197 -
0.425 in)
Maximum brake disc wear...............0.15 mm (0.006 in)
Nominal brake piston stroke............1 mm (0.039 in)
Oil displacement for brake actuation..........9 cc (0.3 oz)
Oil specification for brake actuation..........Mobil Fluid 424
(ISO 46/68)
Pinion flange type.................................................DIN 1410

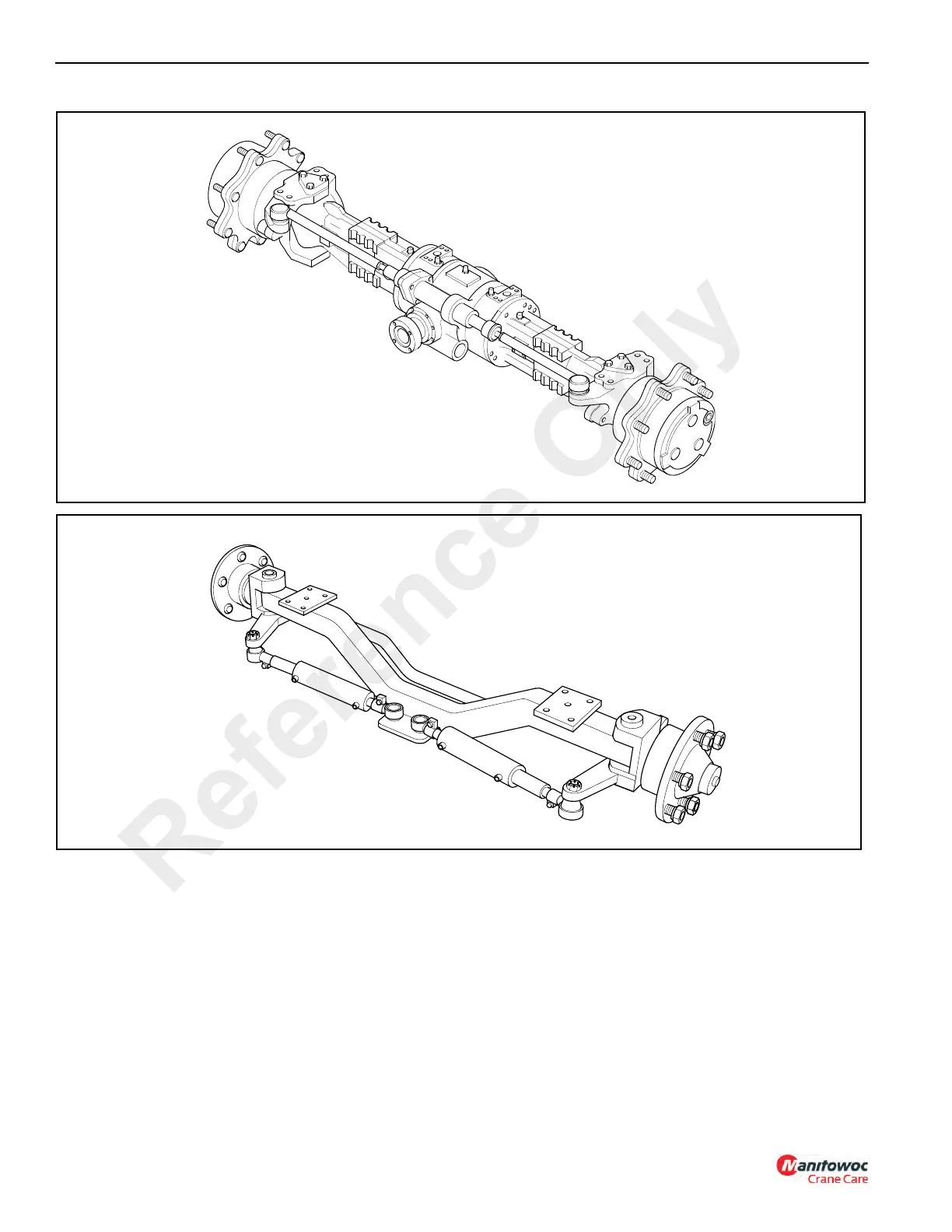

FIGURE 8-1
A0723
FIGURE 8-2
A0855
Reference Only
