STEERING SYSTEM CD3340B/YB4411
10-20
Published 04/07/2015 Control # 569-00
6. Start the engine and operate the cylinder(s) through
several complete cycles to remove air from the system.
Operate the cylinders slowly and do not let them hit
bottom until movement is positive in both directions.
After the circuit is filled with oil, the cylinders can be
operated normally.
7. Check for leaks and repair if necessary.
8. Check the hydraulic oil level and fill if necessary.
FRONT STEERING CYLINDER
Cylinder Repair
Removal
1. Raise and support the machine to gain access to the
steering cylinder.
2. With the engine not running, turn the steering wheel in
both directions several times to release any pressure in
the hydraulic lines to the steering cylinder.
3. Place a tag on hoses for identification and correct
assembly. Be prepared to collect the hydraulic oil as you
remove steering lines. Slowly loosen the hydraulic
hoses to release any remaining pressure. Install plugs in
the hose ends and caps in the cylinder ports.
4. Loosen the hex nut (8, Figure 10-25) on one of the
cylinder tie rod ends (12) until none of the threads on the
tie rod are exposed. Using a hammer and a tie rod fork,
remove the tie rod from the swivel housing.
5. Mark the tie rod for identification during assembly.
Remove the tie rod (12) from the cylinder rod. Be careful
not to tamper with the length of the tie rod assembly. If
measurement is changed, the axle will have to be
checked for toe-in.

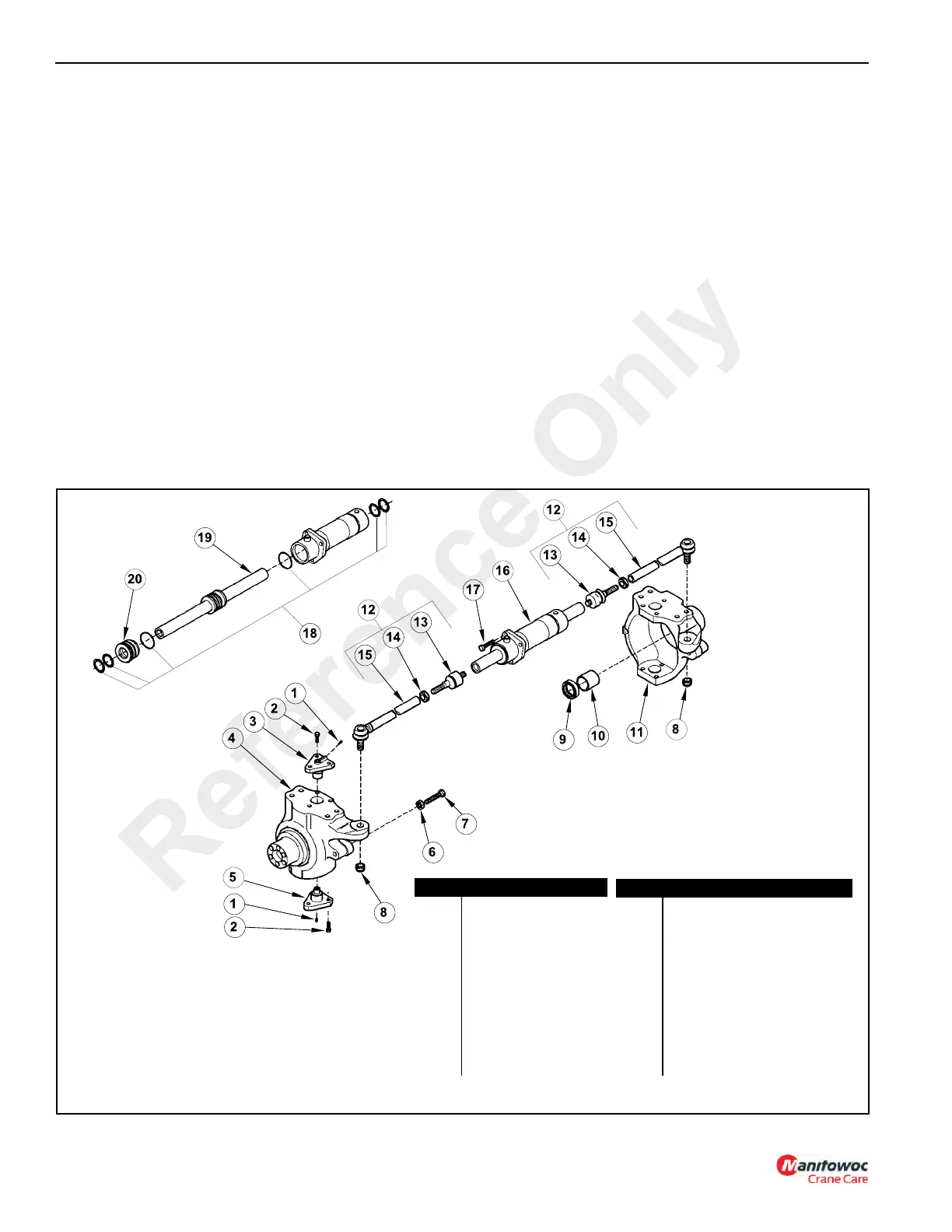

FIGURE 10-25
a0664
Item Description
1 Grease Zerk (4)
2 Cap Screw (12)
3King Pin (2)
4 Left Swivel Housing
5King Pin (2)
6Hex Nut (4)
7 Cap Screw (4)
8 Lock Nut (2)
9 Seal Ring (2)
10 Bronze Bushing (2)
Item Description
11 Right Swivel Housing
12 Steering Tie Rod Assembly (2)
13 Ball Joint (2)
14 Hex Nut (2)
15 Tie Rod (2)
16 Steering Cylinder Assembly
17 Cap Screw (3)
18 Seal Kit
19 Rod
20 Cylinder Head
