General Description Technical Description
Sprinter User's Manual 3-7
Please contact our Support Team for instructions before attempting to adjust the
Ribbon Brake.
If you have to make an adjustment to the R
IBBON BRAKE, you must use a
torque-meter. The adjustment is made by turning the K
NURLED THUMB NUT
on the brake to between 80 and 90cN-m (Figure ).

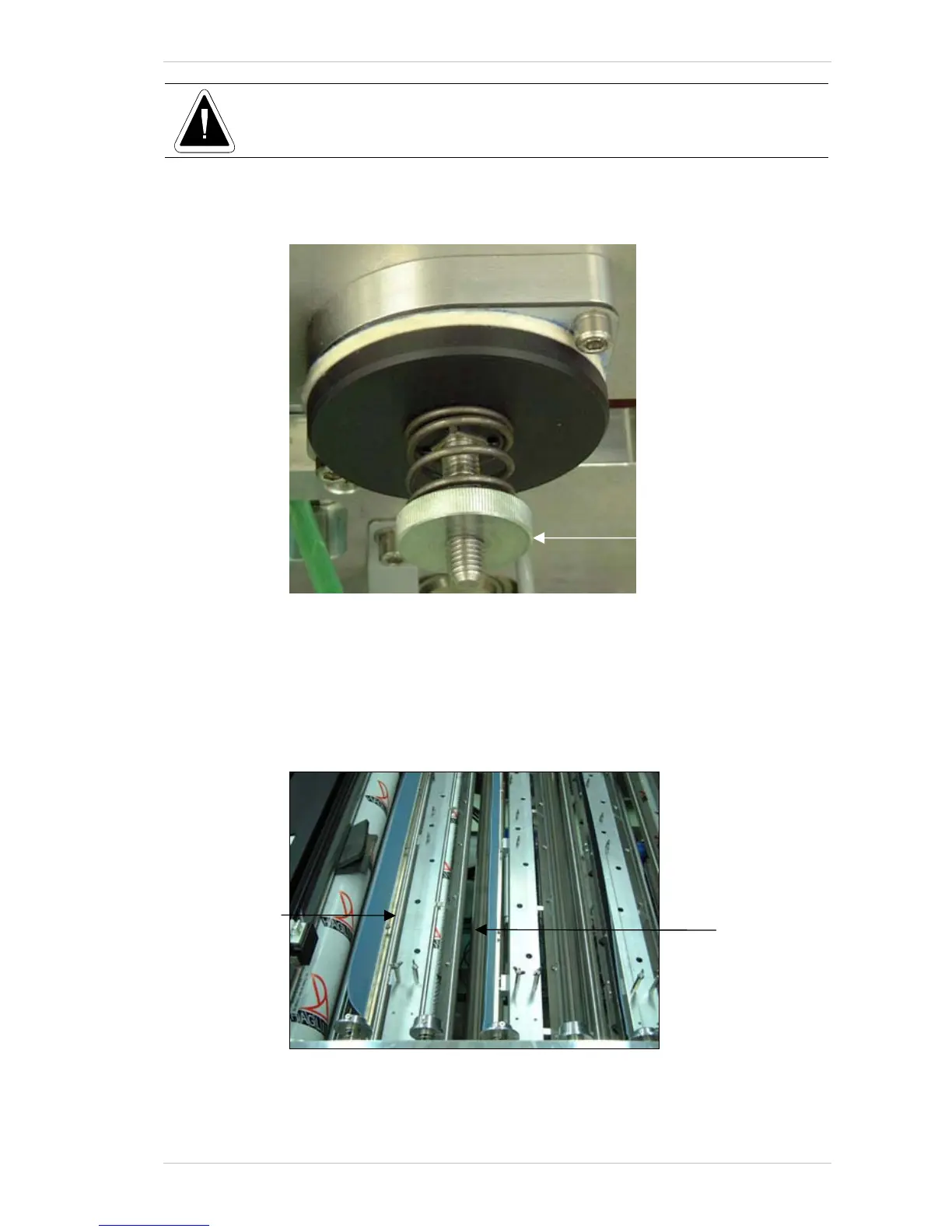

Figure 3-10: Adjusting the Ribbon Brake
The Anti-static Brush and Strip
An ANTI-STATIC BRUSH and an ANTI-STATIC STRIP are installed close to each of
the four Ribbons.
The brush is located next to the unused R
IBBON, and the strip next to the
used R
IBBON (Figure 3-11, page 3-8).
Figure 3-11: The Anti-static Brush and Strip
Anti-static Strip
Anti-static Brush
Knurled Thumb Nut
