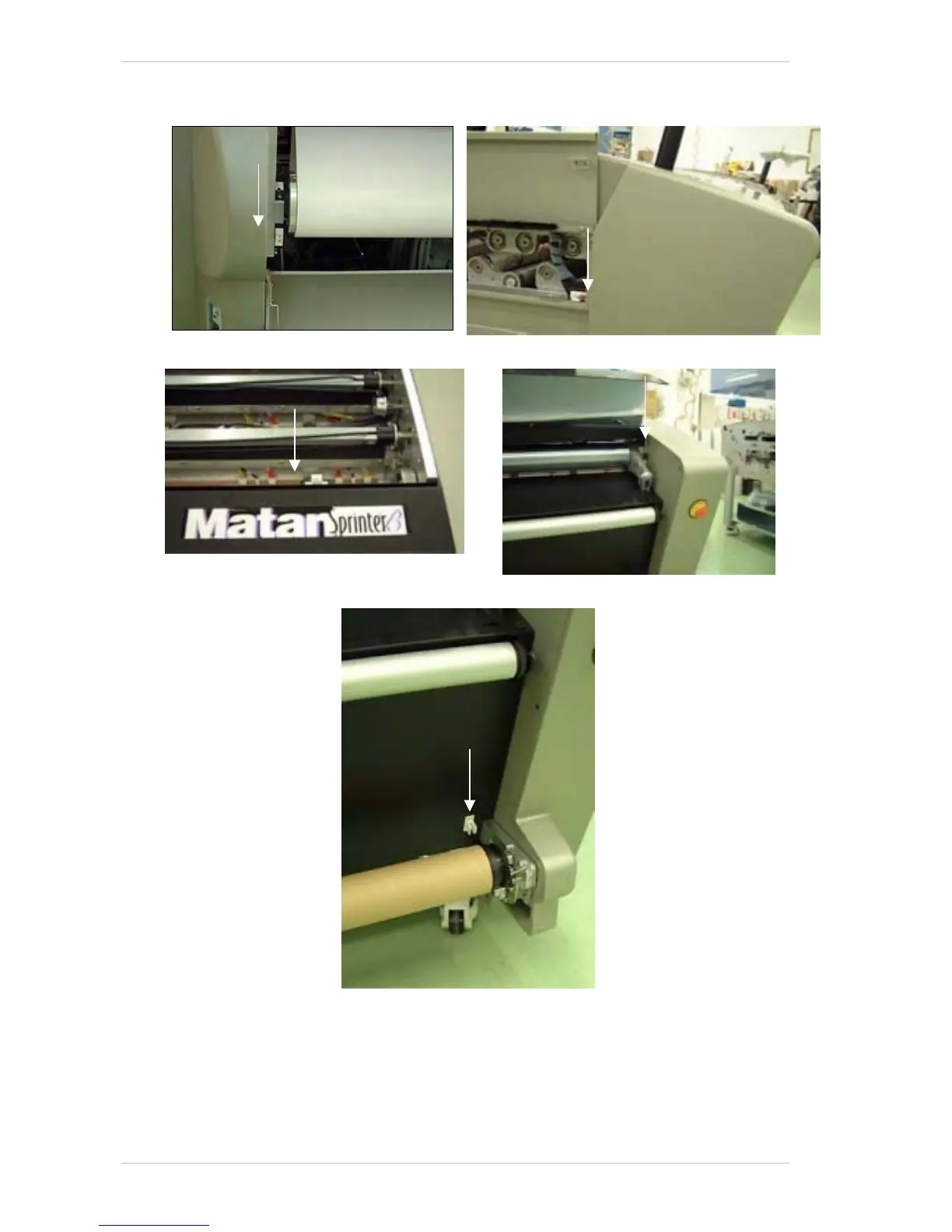

Figure 3-19 illustrates the location of the five SAFETY MICRO SWITCHES,
indicated by white arrows.
Behind the Rear Cover Behind the Substrate Pass Door
Under the Top Cover Under the Front Cover
Under the Substrate Collector Mechanism Cover
Figure 3-19: Location of the five Safety Micro Switches
