The Substrate Roller
The SUBSTRATE ROLLER is designed to hold 3" (internal) diameter cores.
The L
OCKING PIN secures the SUBSTRATE ROLLER. You must ensure it secures
the S
UBSTRATE ROLLER during printing.
The tension adjusting screw should be turned so that the substrate will
not slide but will have tension while turning (Figure 3-13).

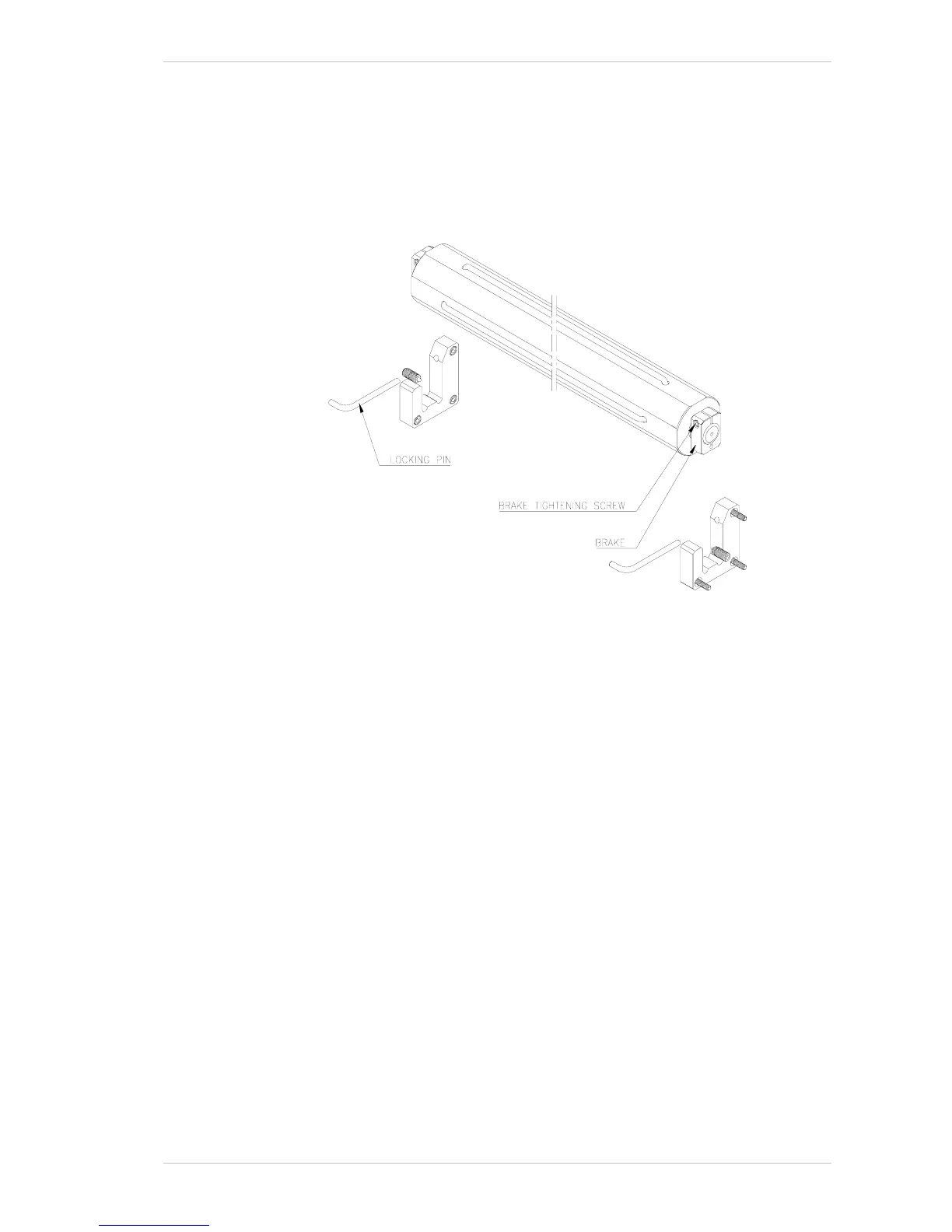

Figure 3-13: The Substrate Roll Holder
The Pulling System
The PULLING SYSTEM comprises the SUBSTRATE PULLING CYLINDER and the
P
RESSING ARM.
The Substrate Pulling Cylinder and Pressing Arm
The SUBSTRATE PULLING CYLINDER is driven by a motor and pulls the
Substrate between the various rollers and under the P
RINTER HEADS. The
P
RESSING ARM applies pressure to the SUBSTRATE and facilitates its moving
over the S
UBSTRATE PULLING CYLINDER.
