Technical Description General Description
3-10 Sprinter User's Manual
The Substrate Collecting System
The SUBSTRATE COLLECTING SYSTEM receives the printed material from the
SprinterB Printer and collects it into a roll (see Figure 3-14).

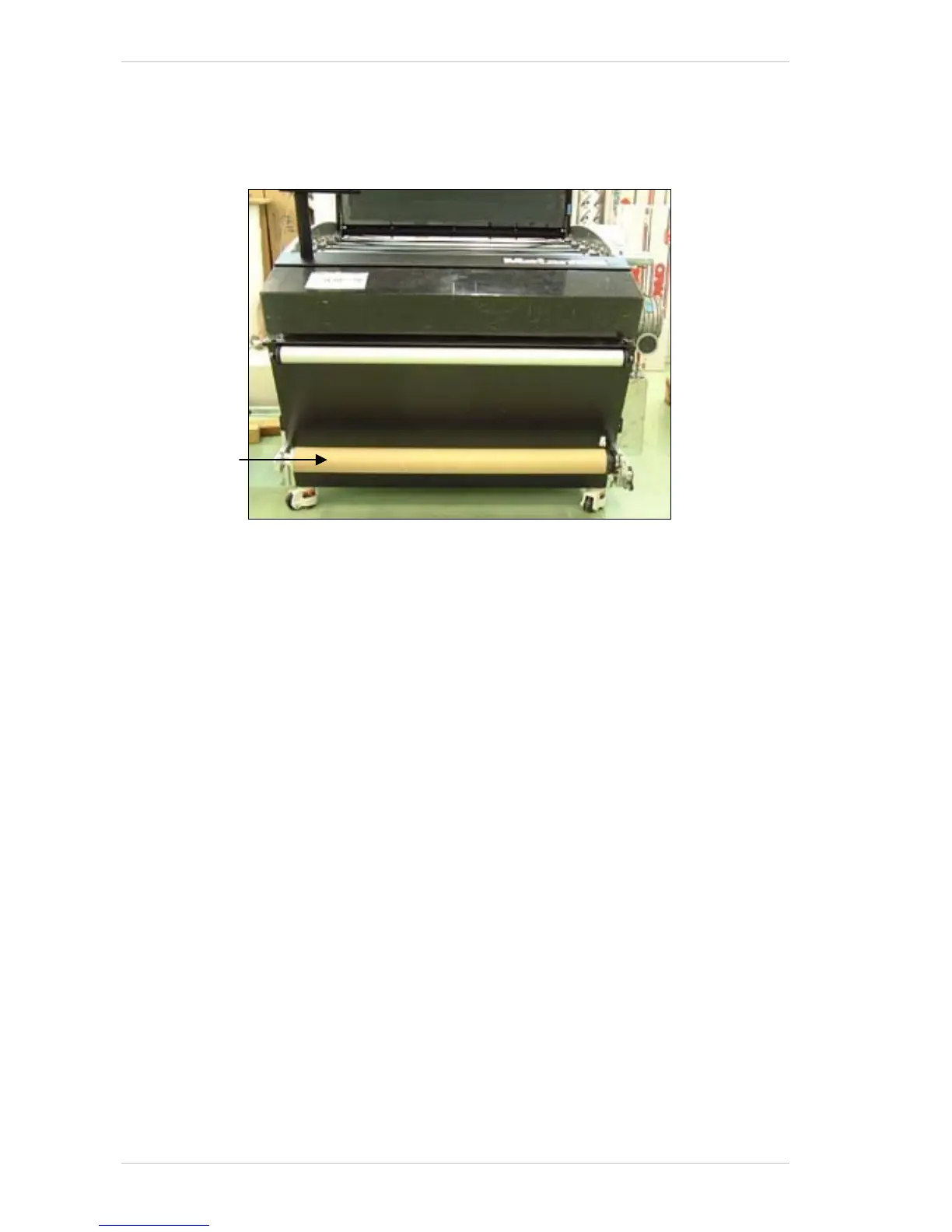

Figure 3-14: The Substrate Collecting System
The Pressure Rollers Pistons
The PRESSURE ROLLER PISTONS raise and lower the PRESSURE ROLLERS.
The Pressure Rollers System
The PRESSURE ROLLERS press the SUBSTRATE and the RIBBONS against the
P
RINT HEAD.
Substrate
Collector Roller
