Technical Description General Description
3-8 Sprinter User's Manual
The Substrate System

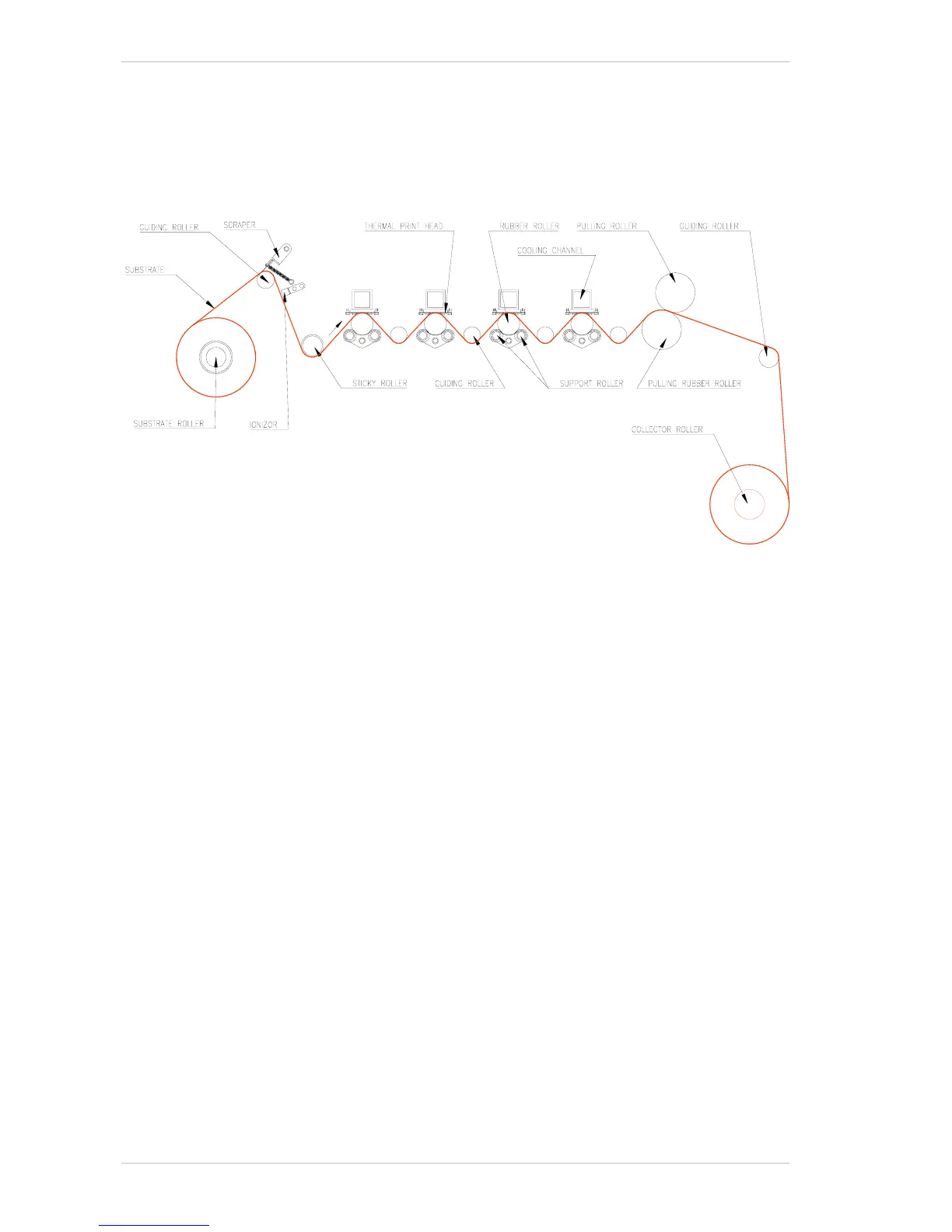

The following figure illustrates the SUBSTRATE path, from the SUBSTRATE
ROLLER to the COLLECTOR ROLLER.
Figure 3-12: The Substrate flow
