Replacing a Print Head Replacing and Adjusting the Print Heads
9-2 Sprinter User's Manual

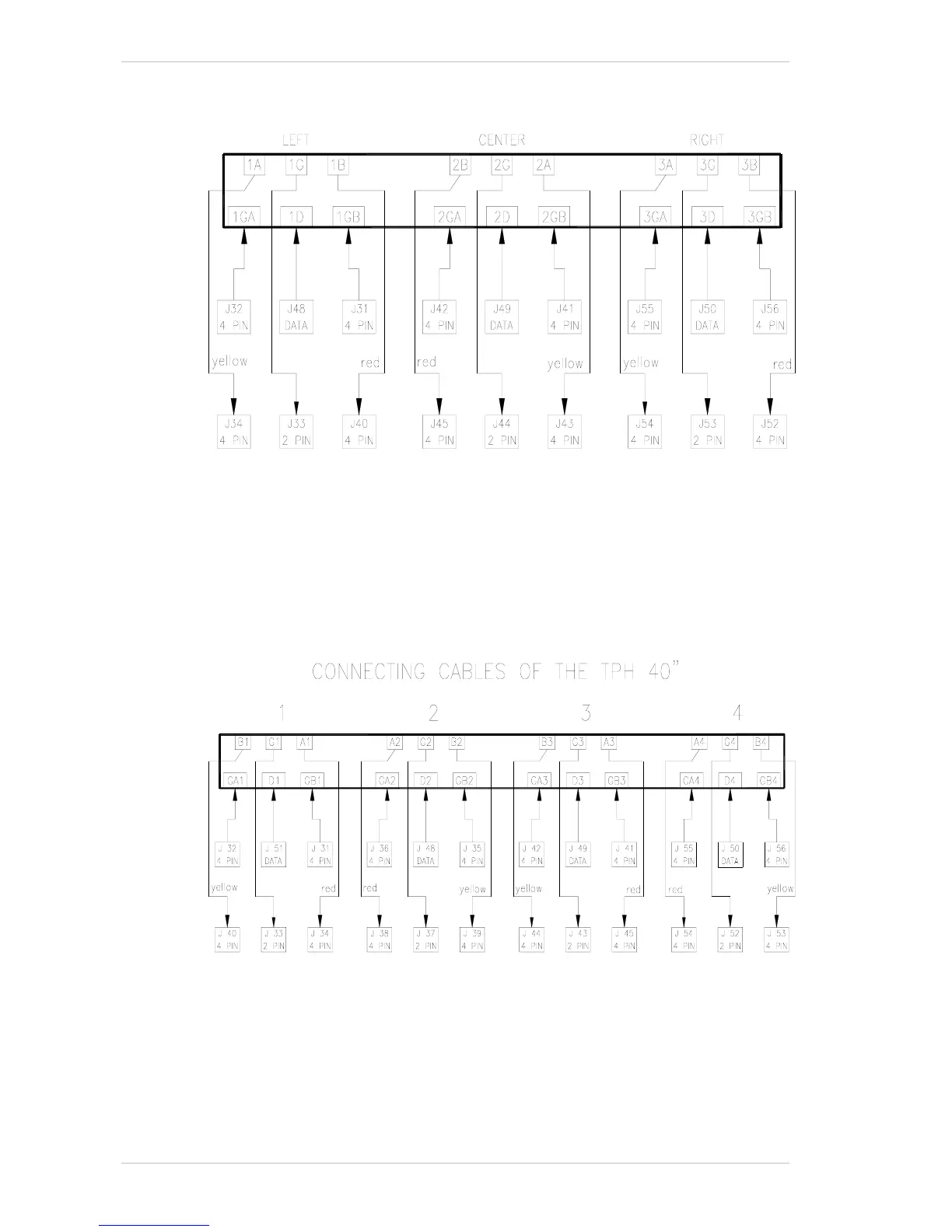

Figure 9-2: Wiring Between the Head Card and the Print Head (Universal)
If your printer is the SprinterB 40", you should connect the cables
according to Figure 9-3.
Figure 9-3: Wiring Between the Universal Head Card and the 40" Print Head
Wiring Between the Head Card and the Print Head (Universal)
