Page 5
Actuator to the engine have easy bends, with the least total
degrees of bend and moderate length. EXAMPLE: Minimum
bend radius 10" (254mm) try for total degrees of bends of less
than 270 degrees - Cable length normally under 20 feet (6m).
D) The Actuator is usually located in the engine room. If the
engine room is too small, locate in any accessible area.
E) MicroCommander uses electronic circuits that can be
influenced by strong magnetic fields, and static charges.
Power source must be bonded (connected) to the hull. Do
not mount close to gas engine ignition systems, alternators,
or electric motors. Allow four feet (1,2m) of clearance, or
more.
F) Locate Actuator away from heat sources, such as engine
exhaust manifolds.
G) Locate Actuator to be accessible for electric, and push-pull
cable connections.
3.2 REMOTE CONTROL HEAD LOCATION
Considerations:
A) The Control Head is watertight when
properly mounted on a console, but
must be protected from water or
spray inside or below console.
B) The Control Head mounts flush to
the console. The only penetration of
the console is for wiring and
mounting screws. The control is
secured with screws from the bottom
side of the panel. Screws provided
are #8-32 x 1".
C) When mounting a control head that
may be weather exposed from the

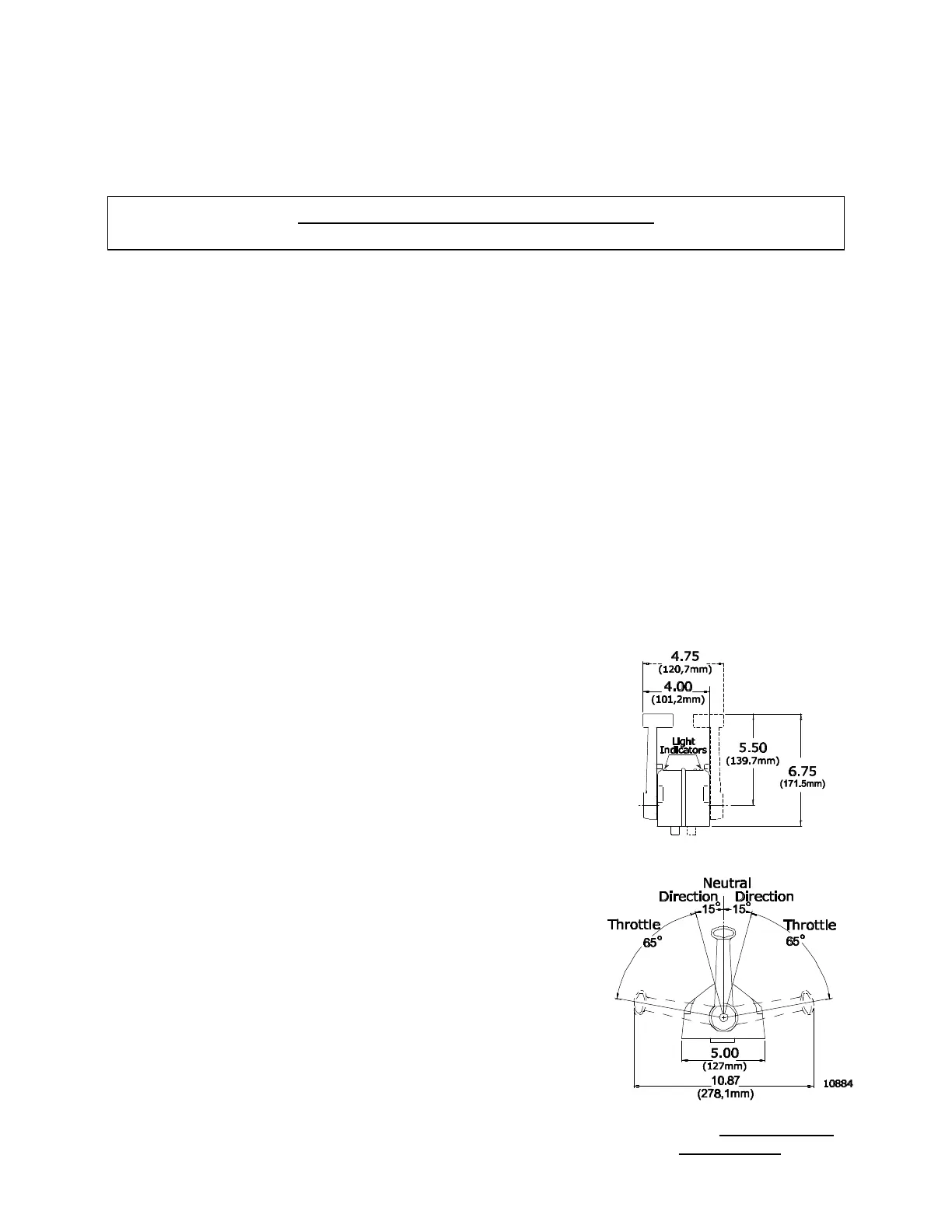

Figure 2 – Control Head
Dimensions
