Page 17
C) As shipped from the factory, Throttle Direction Shunt (JMPR
3) is 'OFF', and therefore, the push-pull cable will PUSH the
throttle lever for full-speed. If this is correct, leave it. If it is
wrong, move shunt (JMPR 3) to 'ON', and the push-pull cable
will 'PULL' on the throttle lever for full-speed.
D) Connect the push-pull cables to the MicroCommander
Actuator (See Figure 13). Remove the #10-32 jam nut and
the two (2) rubber seals from the push-pull cable end that is
to connect to the Actuator. Reinstall the #10-32 jam nut.
Remove one (1) cable anchor clip screw from the Actuator
housing and swing the cable clips clear. Connect the shift
cable and throttle cable to the proper hex nut. See label on
the Actuator. (See Figure 13, Detail I) Use a 7/16" socket to
turn the hex nut onto the #10-32 cable rod end until there is
approximately 5/16" (7,9mm) of thread showing beyond the
jam nut. Tighten the #10-32 jam nut to the hex nut. Install
the cable anchor clips to secure the Type 33C cable to the
Actuator housing.
5.3.1 Transmission Cable Adjustment
A) Place the remote control head in 'NEUTRAL', and turn
the controls 'ON'.
THROTTLE
Push-Pull Cable Anchor Clip
Push-Pull Cable
(not Supplied)
1/4" Mounting Hardware
(not Supplied)
Actuator Housing
Jam Nut
Tighten
Hex
Nut
Snap Ring
5/16"
(8mm)
Detail I
Front View Side View
10382 Rev.A
SHIFT

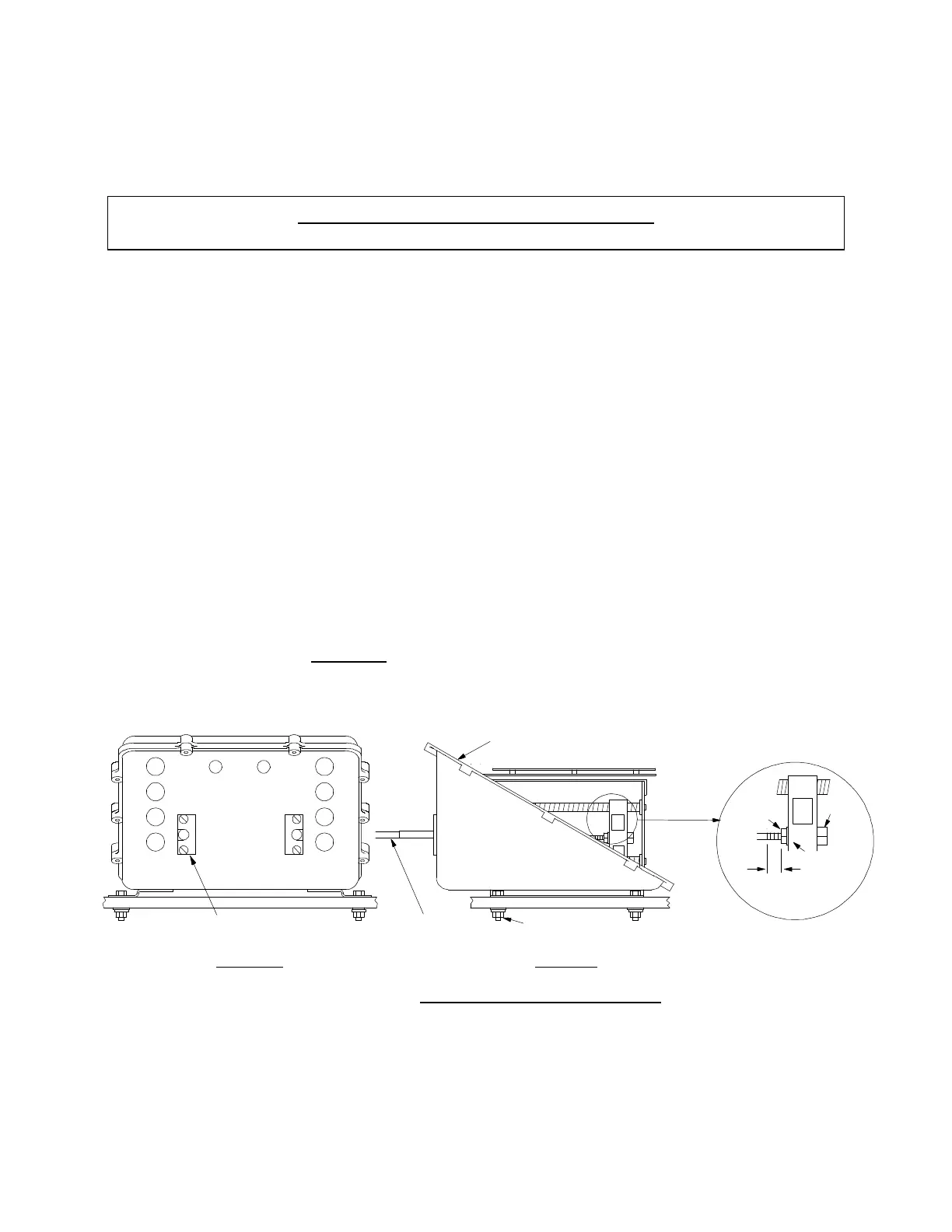

Figure 13 – Push-Pull Cable Connection
